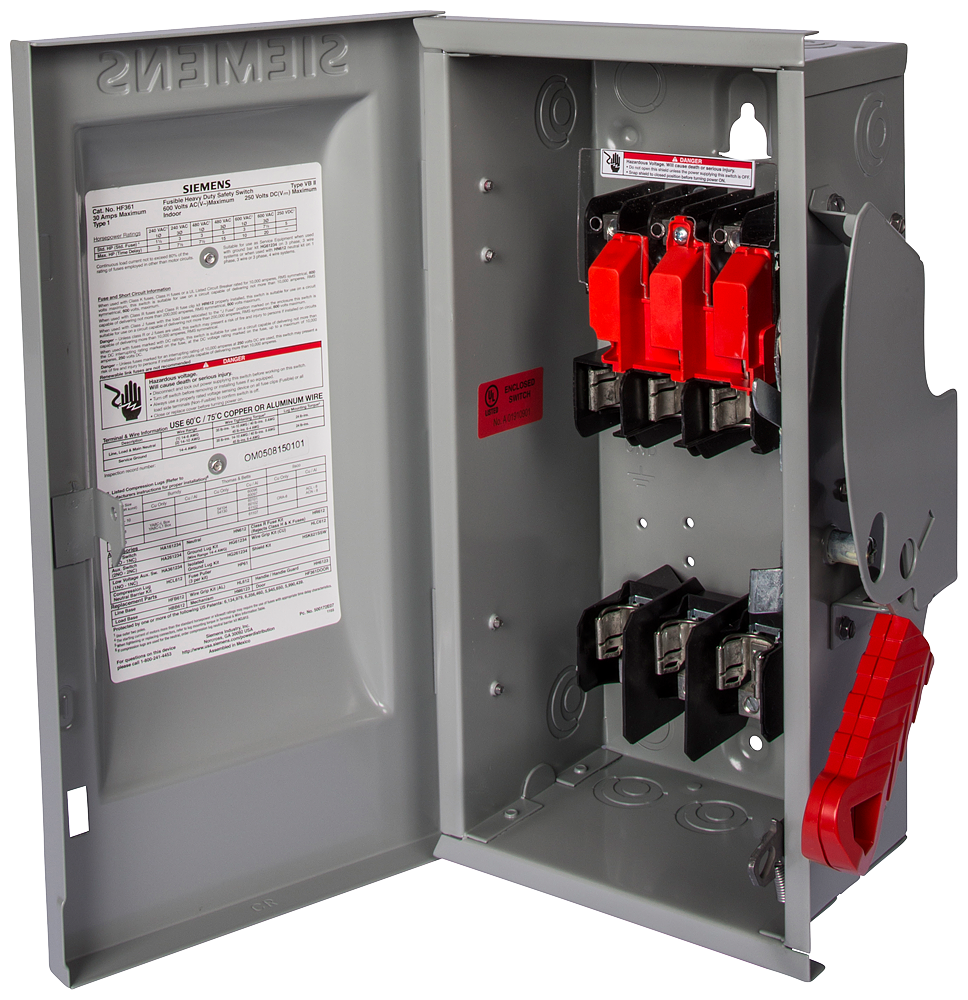

Siemens SpeedFax™ HF364NR Enclosed Fusible Low Voltage Heavy Duty Safety Switch With Neutral, 600 VAC/VDC, 200 A, TPST
Custom_Product_Images_Illustration
Siemens SpeedFax™ HF364NR Enclosed Fusible Low Voltage Heavy Duty Safety Switch With Neutral, 600 VAC/VDC, 200 A, TPST
SKU346327
MFGR #HF364NR
Your Cost: $1,095.61/ea
List: SIEMENS HF364NR 3P 600V 200A SFTY SW
SIEMENS HF364NR 3P 600V 200A SFTY SW
Actuator SINGLETHROW Actuator Type Lever Operated Alternate Catalog Number US2:HF364NR Application DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS ARRA Compliant C Buy American Compliant C Catalog Number HF364NR Connection MECHANICALLUGS Country of Origin MX Currency USD Dimensions 29.9 in H x 15.94 in W x 12.33 in D Enclosure NEMA3R Enclosure Type NEMA 3R EU RoHS Indicator C Frequency Rating 60 Hz Gross Volume Per Pack 6460.02 Gross Volume UOM in Gross Weight Per Pack 42.8000 lb Gross Weight per Pack Metric 19.41 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109170 Height 10.2000 in Height [Metric] 25.9080 cm Insulation Type Non-Insulated Length 33.9000 in Length [Metric] 86.1060 cm Material 304 Stainless Steel Mounting Surface Mounting Type 2/3-Point Hole Number Of Poles 3 Number of Wires 4 Operating Cycles 8000 Operating Temperature -29 °C Phase 3 Returnable Y Short Circuit Current Rating 200 kA Standard UL98 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed Sub Brand VBII Switch Type SINGLETHROW Temperature Rating -20 to 120 °F Terminal Type Lug Type Enclosed Fused Heavy Duty Low Voltage UNSPSC 39122205 UPC 11 78364315169 UPC 12 783643151697 Width 18.9000 in Width [Metric] 48.0060 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 200 A Contact Form TPST Horsepower 50 hp, 60 hp Voltage Rating 600 VAC DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS Quick-make, quick-break operating mechanism that ensures positive operation Visible blade, double break switching action Arc chutes dissipate heat and prolong switch life Highly visible red handle grip designed for hook stick operation Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking Center punch provided for field drilling to allow on padlocking Handle can be padlocked in the off position with up to (3) padlocks with 5/16 in hasps Generous top, bottom and side gutters that meet or exceed NEC® wire bending space requirements Informative door labeling which includes replacement parts list Tangential knockouts through 600 A for easy conduit lineup Side hinged door that opens 180 deg for easier wiring Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands Spring reinforced fuse clips that assure reliable contact for cool operation Door latch securely holds door closed and allows cover padlocking Front removable mechanical lugs that are suitable for copper aluminum 60 or 75 deg C conductors Lugs are field convertible to copper body and to a wide variety of compression connectors Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication Drawn cover for increased rigidity and resistance to abuse Top key hole and bottom mounting holes provide easy 2 or 3-point mounting
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| Actuator | SINGLETHROW |
| Actuator Type | Lever Operated |
| Alternate Catalog Number | US2:HF364NR |
| Application | DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HF364NR |
| Connection | MECHANICALLUGS |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 29.9 in H x 15.94 in W x 12.33 in D |
| Enclosure | NEMA3R |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | C |
| Frequency Rating | 60 Hz |
| Gross Volume Per Pack | 6460.02 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 42.8000 lb |
| Gross Weight per Pack Metric | 19.41 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109170 |
| Height | 10.2000 in |
| Height [Metric] | 25.9080 cm |
| Insulation Type | Non-Insulated |
| Length | 33.9000 in |
| Length [Metric] | 86.1060 cm |
| Material | 304 Stainless Steel |
| Mounting | Surface |
| Mounting Type | 2/3-Point Hole |
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Operating Cycles | 8000 |
| Operating Temperature | -29 °C |
| Phase | 3 |
| Returnable | Y |
| Short Circuit Current Rating | 200 kA |
| Standard | UL98 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed |
| Sub Brand | VBII |
| Switch Type | SINGLETHROW |
| Temperature Rating | -20 to 120 °F |
| Terminal Type | Lug |
| Type | Enclosed Fused Heavy Duty Low Voltage |
| UNSPSC | 39122205 |
| UPC 11 | 78364315169 |
| UPC 12 | 783643151697 |
| Width | 18.9000 in |
| Width [Metric] | 48.0060 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 200 A |
| Contact Form | TPST |
| Horsepower | 50 hp, 60 hp |
| Voltage Rating | 600 VAC |
| DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS |
| Quick-make, quick-break operating mechanism that ensures positive operation |
| Visible blade, double break switching action |
| Arc chutes dissipate heat and prolong switch life |
| Highly visible red handle grip designed for hook stick operation |
| Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking |
| Center punch provided for field drilling to allow on padlocking |
| Handle can be padlocked in the off position with up to (3) padlocks with 5/16 in hasps |
| Generous top, bottom and side gutters that meet or exceed NEC® wire bending space requirements |
| Informative door labeling which includes replacement parts list |
| Tangential knockouts through 600 A for easy conduit lineup |
| Side hinged door that opens 180 deg for easier wiring |
| Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands |
| Spring reinforced fuse clips that assure reliable contact for cool operation |
| Door latch securely holds door closed and allows cover padlocking |
| Front removable mechanical lugs that are suitable for copper aluminum 60 or 75 deg C conductors |
| Lugs are field convertible to copper body and to a wide variety of compression connectors |
| Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals |
| Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication |
| Drawn cover for increased rigidity and resistance to abuse |
| Top key hole and bottom mounting holes provide easy 2 or 3-point mounting |
