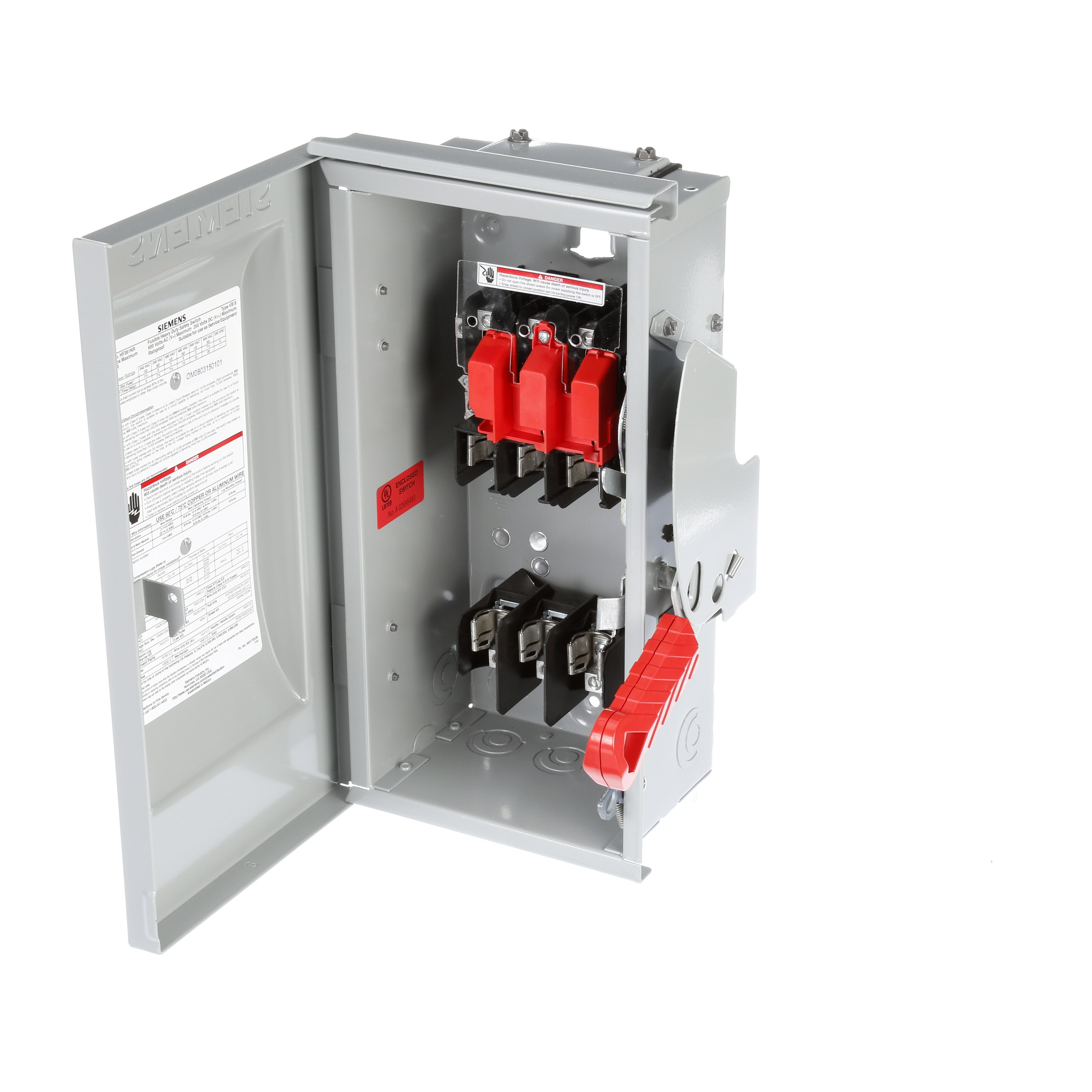

Siemens SpeedFax™ HF361NR Enclosed Fusible Low Voltage Heavy Duty Safety Switch With Neutral, 600 VAC/VDC, 30 A, 7.5 hp
Custom_Product_Images_Illustration
Siemens SpeedFax™ HF361NR Enclosed Fusible Low Voltage Heavy Duty Safety Switch With Neutral, 600 VAC/VDC, 30 A, 7.5 hp
SKU92924
MFGR #HF361NR
Your Cost: $439.53/ea
List: SIEMENS HF361NR 3P 600V 30A SFTY SW
SIEMENS HF361NR 3P 600V 30A SFTY SW
Actuator SINGLETHROW Actuator Type Lever Operated Alternate Catalog Number US2:HF361NR Application DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS ARRA Compliant C Buy American Compliant C Catalog Number HF361NR Connection MECHANICALLUGS Country of Origin MX Currency USD Dimensions 14.39 in H x 7.91 in W x 10.17 in D Enclosure NEMA3R Enclosure Type NEMA 3R EU RoHS Indicator C Frequency Rating 60 Hz Gross Volume Per Pack 1584.01 Gross Volume UOM in Gross Weight Per Pack 14.0000 lb Gross Weight per Pack Metric 6.35 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109170 Height 9.1800 in Height [Metric] 23.3172 cm Insulation Type Non-Insulated Length 14.9100 in Length [Metric] 37.8714 cm Material 304 Stainless Steel Mounting Surface Mounting Type 2/3-Point Hole Number Of Poles 3 Number of Wires 4 Operating Temperature -29 °C Phase 3 Returnable Y Short Circuit Current Rating 200 kA Standard UL98 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed Sub Brand VBII Switch Type SINGLETHROW Temperature Rating -20 to 120 °F Terminal Type Lug Type Enclosed Fused Heavy Duty Low Voltage UNSPSC 39122205 UPC 11 78364315166 UPC 12 783643151666 Width 7.8800 in Width [Metric] 20.0152 cm Stock Status NORMALLY STOCKED Brand Siemens Manufacturer Siemens Amperage Rating 30 A Contact Form TPST Horsepower 7-1/2 hp Voltage Rating 600 VAC DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS Quick-make, quick-break operating mechanism that ensures positive operation Visible blade, double break switching action Arc chutes dissipate heat and prolong switch life Highly visible red handle grip designed for hook stick operation Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking Center punch provided for field drilling to allow on padlocking Handle can be padlocked in the off position with up to (3) padlocks with 5/16 in hasps Generous top, bottom and side gutters that meet or exceed NEC® wire bending space requirements Informative door labeling which includes replacement parts list Tangential knockouts through 600 A for easy conduit lineup Side hinged door that opens 180 deg for easier wiring Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands Spring reinforced fuse clips that assure reliable contact for cool operation Door latch securely holds door closed and allows cover padlocking Front removable mechanical lugs that are suitable for copper aluminum 60 or 75 deg C conductors Lugs are field convertible to copper body and to a wide variety of compression connectors Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication Drawn cover for increased rigidity and resistance to abuse Top key hole and bottom mounting holes provide easy 2 or 3-point mounting
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| Actuator | SINGLETHROW |
| Actuator Type | Lever Operated |
| Alternate Catalog Number | US2:HF361NR |
| Application | DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HF361NR |
| Connection | MECHANICALLUGS |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 14.39 in H x 7.91 in W x 10.17 in D |
| Enclosure | NEMA3R |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | C |
| Frequency Rating | 60 Hz |
| Gross Volume Per Pack | 1584.01 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 14.0000 lb |
| Gross Weight per Pack Metric | 6.35 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109170 |
| Height | 9.1800 in |
| Height [Metric] | 23.3172 cm |
| Insulation Type | Non-Insulated |
| Length | 14.9100 in |
| Length [Metric] | 37.8714 cm |
| Material | 304 Stainless Steel |
| Mounting | Surface |
| Mounting Type | 2/3-Point Hole |
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Operating Temperature | -29 °C |
| Phase | 3 |
| Returnable | Y |
| Short Circuit Current Rating | 200 kA |
| Standard | UL98 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed |
| Sub Brand | VBII |
| Switch Type | SINGLETHROW |
| Temperature Rating | -20 to 120 °F |
| Terminal Type | Lug |
| Type | Enclosed Fused Heavy Duty Low Voltage |
| UNSPSC | 39122205 |
| UPC 11 | 78364315166 |
| UPC 12 | 783643151666 |
| Width | 7.8800 in |
| Width [Metric] | 20.0152 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 30 A |
| Contact Form | TPST |
| Horsepower | 7-1/2 hp |
| Voltage Rating | 600 VAC |
| DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS |
| Quick-make, quick-break operating mechanism that ensures positive operation |
| Visible blade, double break switching action |
| Arc chutes dissipate heat and prolong switch life |
| Highly visible red handle grip designed for hook stick operation |
| Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking |
| Center punch provided for field drilling to allow on padlocking |
| Handle can be padlocked in the off position with up to (3) padlocks with 5/16 in hasps |
| Generous top, bottom and side gutters that meet or exceed NEC® wire bending space requirements |
| Informative door labeling which includes replacement parts list |
| Tangential knockouts through 600 A for easy conduit lineup |
| Side hinged door that opens 180 deg for easier wiring |
| Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands |
| Spring reinforced fuse clips that assure reliable contact for cool operation |
| Door latch securely holds door closed and allows cover padlocking |
| Front removable mechanical lugs that are suitable for copper aluminum 60 or 75 deg C conductors |
| Lugs are field convertible to copper body and to a wide variety of compression connectors |
| Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals |
| Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication |
| Drawn cover for increased rigidity and resistance to abuse |
| Top key hole and bottom mounting holes provide easy 2 or 3-point mounting |
