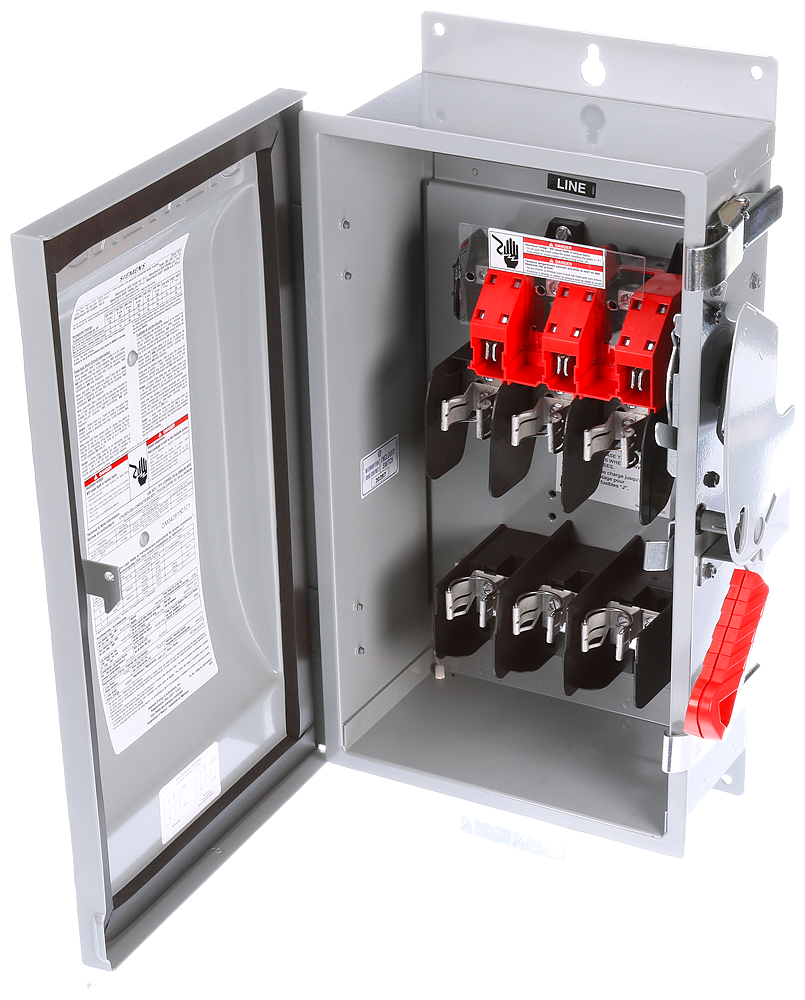

Siemens SpeedFax™ HF323J Enclosed Fusible Low Voltage Heavy Duty Safety Switch With Insulation, 240 VAC, 100 A, 15 hp
Heavy Duty Safety Switches
566907
MFG #: HF323J
Siemens
909.09000
/ ea
SIEMENS HF323J 3P 240V 100A SFTY SW
- Brochure URL - VBIISe%20Appl%20Guide%20F06_updated.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - SIE_DW_HF323J.pdf(Computer~Aided [CAD|BIM] Model URL)
- http://www.sea.siemens.com(WEB SELLER HOME PAGE URL)
- Owners Manual URL - SIE_IM_SwitchMaintenance.pdf(Owners Manual URL)
- Video - https://digitalcontentcenter.compas.siemens-info.com/SIE_VI_Safety_Switch.mp4(Video)
- WEB CATALOG 1 URL - Siemens_HNF364RPVPG_Catalog_1.pdf(WEB CATALOG 1 URL)
- WEB CATALOG URL - Siemens_HF324SS_Catalog.pdf(WEB CATALOG URL)
- WEB SPEC SHEET 1 URL - IDW_DOCUMENT_1537664125038.pdf(WEB SPEC SHEET 1 URL)
- WEB SPEC SHEET URL - SIE_CS_VBII-HD-100A-TYPE12.pdf(WEB SPEC SHEET URL)
- Applications
- Features
| DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS |
| Quick-make, quick-break operating mechanism that ensures positive operation |
| Visible blade, double break switching action |
| Arc chutes dissipate heat and prolong switch life |
| Highly visible red handle grip designed for hook stick operation |
| Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking |
| Center punch provided for field drilling to allow ON padlocking |
| Handle can be padlocked in the OFF position with up to three padlocks with 5/16 in hasps |
| Generous top, bottom and side gutters that meet or exceed NEC wire bending space requirements |
| Informative door labeling which includes replacement parts list |
| Tangential knockouts through 600 A for easy conduit lineup |
| Side hinged door that opens 180 deg for easier wiring |
| Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands |
| Spring reinforced fuse clips that assure reliable contact for cool operation |
| Door latch securely holds door closed and allows cover padlocking |
| Front removable mechanical lugs that are suitable for CU/AI 60 or 75 deg C conductors |
| Lugs are field convertible to copper body and to a wide variety of compression connectors |
| Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals |
| Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication |
| Drawn cover for increased rigidity and resistance to abuse |
| Top key hole and bottom mounting holes provide easy 2 or 3-point mounting |
