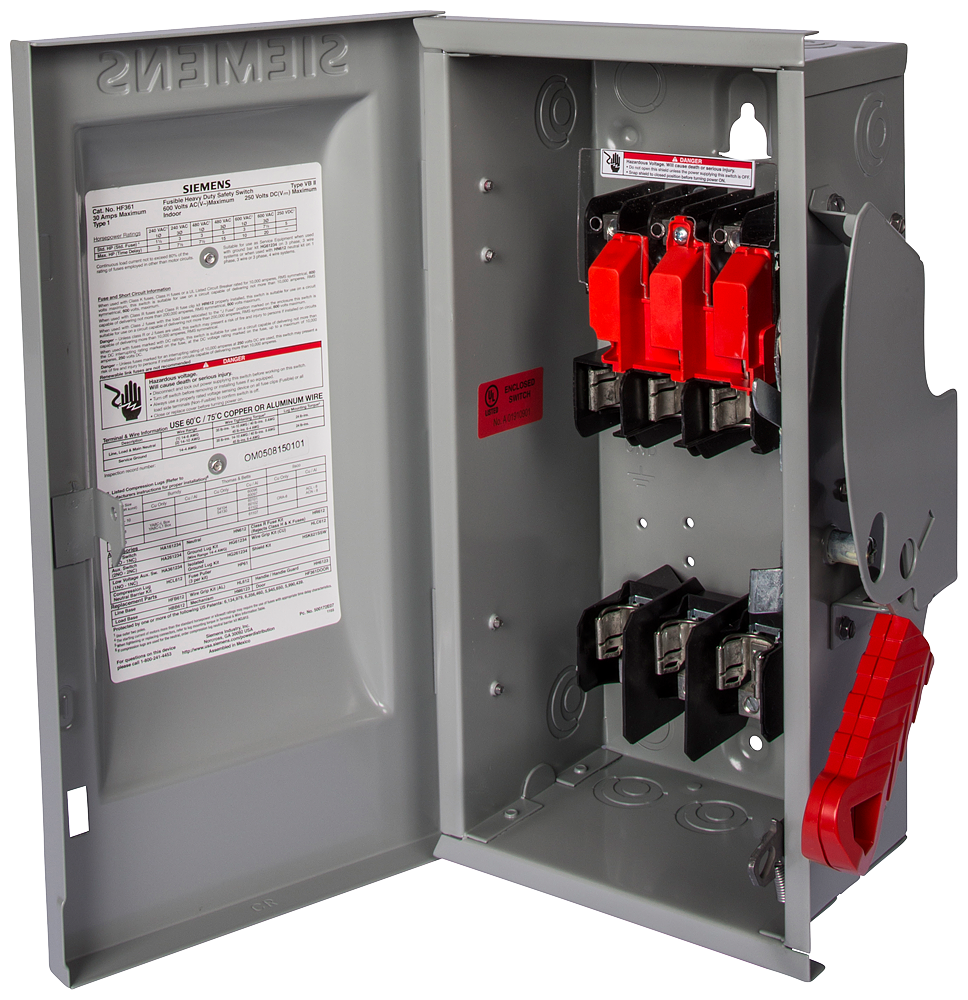

Siemens SpeedFax™ HF223N Enclosed Fusible Low Voltage Heavy Duty Safety Switch With Neutral, 240 VAC, 100 A, 7.5 hp
Custom_Product_Images_Illustration
Siemens SpeedFax™ HF223N Enclosed Fusible Low Voltage Heavy Duty Safety Switch With Neutral, 240 VAC, 100 A, 7.5 hp
SKU207751
MFGR #HF223N
Your Cost: $324.01/ea
List: SIEMENS HF223N 2P 240V 100A SFTY SW
SIEMENS HF223N 2P 240V 100A SFTY SW
Actuator SINGLETHROW Actuator Type Lever Operated Alternate Catalog Number US2:HF223N Application DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS ARRA Compliant C Buy American Compliant C Catalog Number HF223N Connection MECHANICALLUGS Country of Origin MX Currency USD Dimensions 21.95 in H x 10.68 in W x 10.17 in D Enclosure NEMA1 Enclosure Type NEMA 1 EU RoHS Indicator C Frequency Rating 60 Hz Gross Volume Per Pack 2548.01 Gross Volume UOM in Gross Weight Per Pack 20.8000 lb Gross Weight per Pack Metric 9.44 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109170 Height 8.0000 in Height [Metric] 20.3200 cm Insulation Type Non-Insulated Length 25.8000 in Length [Metric] 65.5320 cm Material Steel Mounting Surface Mounting Type 2/3-Point Hole Number Of Poles 2 Number of Wires 2 Operating Temperature -29 °C Phase 1 Returnable Y Short Circuit Current Rating 200 kA Standard UL98 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed Sub Brand VBII Switch Type SINGLETHROW Temperature Rating -20 to 120 °F Terminal Type Lug Type Enclosed Fused Heavy Duty Low Voltage UNSPSC 39122205 UPC 11 78364315022 UPC 12 783643150225 Width 14.2000 in Width [Metric] 36.0680 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 100 A Contact Form DPST Horsepower 7-1/2 hp Voltage Rating 240 VAC DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS Visible blade, double break switching action Highly visible red handle grip designed for hook stick operation Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking Center punch provided for field drilling to allow on padlocking Handle can be padlocked in the off position with up to (3) padlocks with 5/16 in hasps Generous top, bottom and side gutters that meet or exceed NEC® wire bending space requirements Tangential knockouts through 600 A for easy conduit lineup Side hinged door that opens past 180 deg for easier wiring Lugs are field convertible to copper body and to a wide variety of compression connectors Front removable mechanical lugs that are suitable for copper aluminum 60 or 75 deg C conductors Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication Drawn cover for increased rigidity and resistance to abuse Top key hole and bottom mounting holes provide easy 2 or 3-point mounting Without insulation
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| Actuator | SINGLETHROW |
| Actuator Type | Lever Operated |
| Alternate Catalog Number | US2:HF223N |
| Application | DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HF223N |
| Connection | MECHANICALLUGS |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 21.95 in H x 10.68 in W x 10.17 in D |
| Enclosure | NEMA1 |
| Enclosure Type | NEMA 1 |
| EU RoHS Indicator | C |
| Frequency Rating | 60 Hz |
| Gross Volume Per Pack | 2548.01 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 20.8000 lb |
| Gross Weight per Pack Metric | 9.44 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109170 |
| Height | 8.0000 in |
| Height [Metric] | 20.3200 cm |
| Insulation Type | Non-Insulated |
| Length | 25.8000 in |
| Length [Metric] | 65.5320 cm |
| Material | Steel |
| Mounting | Surface |
| Mounting Type | 2/3-Point Hole |
| Number Of Poles | 2 |
| Number of Wires | 2 |
| Operating Temperature | -29 °C |
| Phase | 1 |
| Returnable | Y |
| Short Circuit Current Rating | 200 kA |
| Standard | UL98 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed |
| Sub Brand | VBII |
| Switch Type | SINGLETHROW |
| Temperature Rating | -20 to 120 °F |
| Terminal Type | Lug |
| Type | Enclosed Fused Heavy Duty Low Voltage |
| UNSPSC | 39122205 |
| UPC 11 | 78364315022 |
| UPC 12 | 783643150225 |
| Width | 14.2000 in |
| Width [Metric] | 36.0680 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 100 A |
| Contact Form | DPST |
| Horsepower | 7-1/2 hp |
| Voltage Rating | 240 VAC |
| DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS |
| Visible blade, double break switching action |
| Highly visible red handle grip designed for hook stick operation |
| Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking |
| Center punch provided for field drilling to allow on padlocking |
| Handle can be padlocked in the off position with up to (3) padlocks with 5/16 in hasps |
| Generous top, bottom and side gutters that meet or exceed NEC® wire bending space requirements |
| Tangential knockouts through 600 A for easy conduit lineup |
| Side hinged door that opens past 180 deg for easier wiring |
| Lugs are field convertible to copper body and to a wide variety of compression connectors |
| Front removable mechanical lugs that are suitable for copper aluminum 60 or 75 deg C conductors |
| Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication |
| Drawn cover for increased rigidity and resistance to abuse |
| Top key hole and bottom mounting holes provide easy 2 or 3-point mounting |
| Without insulation |
