Siemens

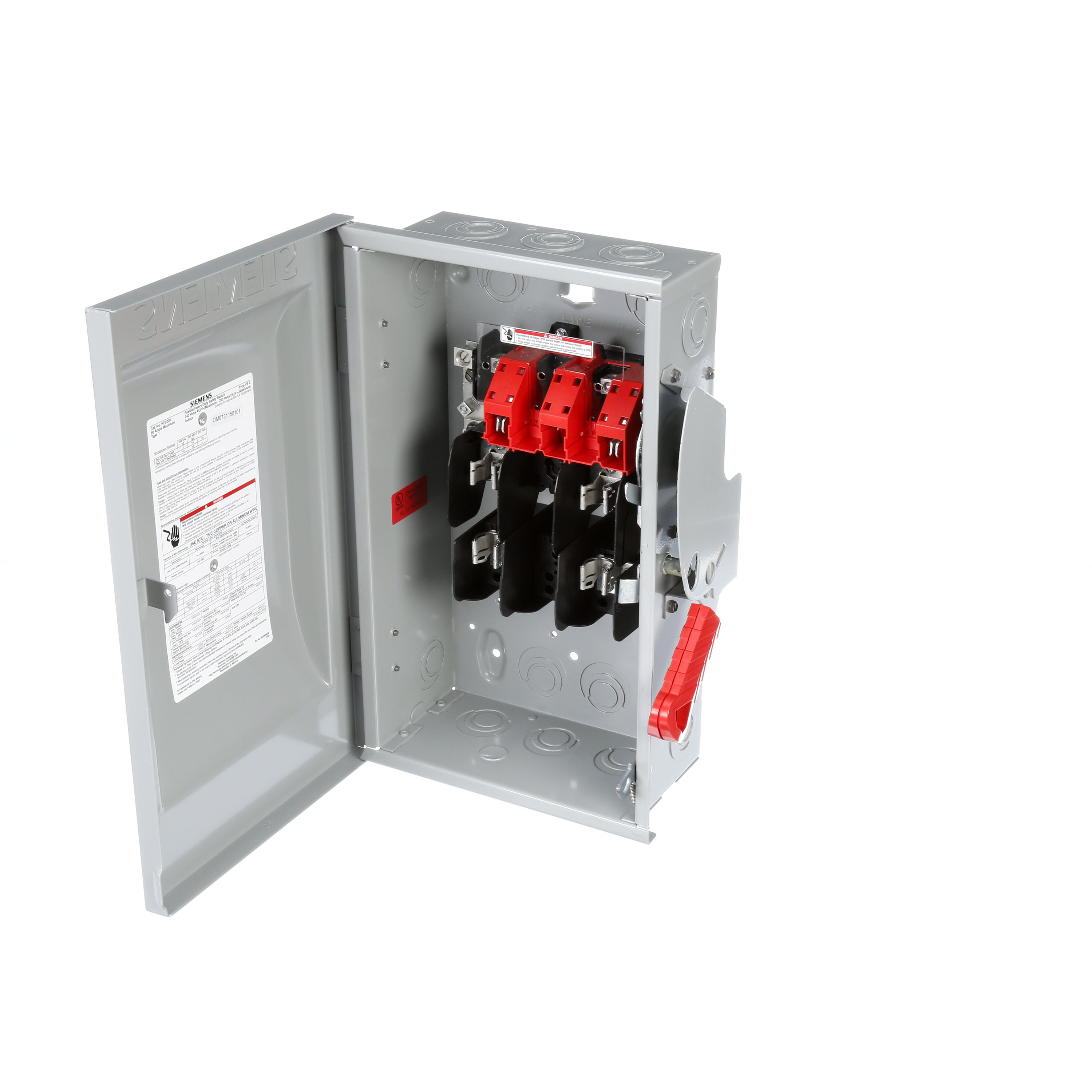

Siemens SpeedFax™ HF222N Enclosed Fusible Low Voltage Heavy Duty Safety Switch With Neutral, 240 VAC, 60 A, 3 hp, DPST
Custom_Product_Images_Illustration
Siemens
Siemens SpeedFax™ HF222N Enclosed Fusible Low Voltage Heavy Duty Safety Switch With Neutral, 240 VAC, 60 A, 3 hp, DPST
SKU198813
MFGR #HF222N
Your Cost: $212.87/ea
List: Siemens SpeedFax™ Heavy Duty Safety Switch, Enclosed Fusible Low Voltage, 240 VAC, 60 A, 3 hp, 1 Phase, 60 Hz, 2 Poles, 2 Wires, 200 kA Short Circuit, DPST, Lever Actuator, NEMA 1, Surface Mount, Lug Terminal, -20 to 120 deg F, 16.26 in H x 10.19 in W x 10.17 in D, Steel
Siemens SpeedFax™ Heavy Duty Safety Switch, Enclosed Fusible Low Voltage, 240 VAC, 60 A, 3 hp, 1 Phase, 60 Hz, 2 Poles, 2 Wires, 200 kA Short Circuit, DPST, Lever Actuator, NEMA 1, Surface Mount, Lug Terminal, -20 to 120 deg F, 16.26 in H x 10.19 in W x 10.17 in D, Steel
Actuator SINGLETHROW Actuator Type Lever Operated Alternate Catalog Number US2:HF222N Application DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS ARRA Compliant C Buy American Compliant C Catalog Number HF222N Connection MECHANICALLUGS Country of Origin MX Currency USD Dimensions 16.26 in H x 10.19 in W x 10.17 in D Enclosure NEMA1 Enclosure Type NEMA 1 EU RoHS Indicator C Frequency Rating 60 Hz Gross Volume Per Pack 2240.01 Gross Volume UOM in Gross Weight Per Pack 18.0000 lb Gross Weight per Pack Metric 8.16 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109170 Height 8.6700 in Height [Metric] 22.0218 cm Insulation Type Non-Insulated Length 16.6200 in Length [Metric] 42.2148 cm Material Steel Mounting Surface Mounting Type 2/3-Point Hole Number Of Poles 2 Number of Wires 2 Operating Temperature -29 °C Phase 1 Returnable Y Short Circuit Current Rating 200 kA Standard UL98 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed Sub Brand VBII Switch Type SINGLETHROW Temperature Rating -20 to 120 °F Terminal Type Lug Type Enclosed Fused Heavy Duty Low Voltage UNSPSC 39122205 UPC 11 78364315021 UPC 12 783643150218 Width 10.3700 in Width [Metric] 26.3398 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 60 A Contact Form DPST Horsepower 3 hp Voltage Rating 240 VAC DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS Visible blade, double break switching action Highly visible red handle grip designed for hook stick operation Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking Center punch provided for field drilling to allow on padlocking Handle can be padlocked in the off position with up to (3) padlocks with 5/16 in hasps Generous top, bottom and side gutters that meet or exceed NEC® wire bending space requirements Tangential knockouts through 600 A for easy conduit lineup Side hinged door that opens past 180 deg for easier wiring Lugs are field convertible to copper body and to a wide variety of compression connectors Front removable mechanical lugs that are suitable for copper aluminum 60 or 75 deg C conductors Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication Drawn cover for increased rigidity and resistance to abuse Top key hole and bottom mounting holes provide easy 2 or 3-point mounting Without insulation
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| Actuator | SINGLETHROW |
| Actuator Type | Lever Operated |
| Alternate Catalog Number | US2:HF222N |
| Application | DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HF222N |
| Connection | MECHANICALLUGS |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 16.26 in H x 10.19 in W x 10.17 in D |
| Enclosure | NEMA1 |
| Enclosure Type | NEMA 1 |
| EU RoHS Indicator | C |
| Frequency Rating | 60 Hz |
| Gross Volume Per Pack | 2240.01 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 18.0000 lb |
| Gross Weight per Pack Metric | 8.16 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109170 |
| Height | 8.6700 in |
| Height [Metric] | 22.0218 cm |
| Insulation Type | Non-Insulated |
| Length | 16.6200 in |
| Length [Metric] | 42.2148 cm |
| Material | Steel |
| Mounting | Surface |
| Mounting Type | 2/3-Point Hole |
| Number Of Poles | 2 |
| Number of Wires | 2 |
| Operating Temperature | -29 °C |
| Phase | 1 |
| Returnable | Y |
| Short Circuit Current Rating | 200 kA |
| Standard | UL98 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed |
| Sub Brand | VBII |
| Switch Type | SINGLETHROW |
| Temperature Rating | -20 to 120 °F |
| Terminal Type | Lug |
| Type | Enclosed Fused Heavy Duty Low Voltage |
| UNSPSC | 39122205 |
| UPC 11 | 78364315021 |
| UPC 12 | 783643150218 |
| Width | 10.3700 in |
| Width [Metric] | 26.3398 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 60 A |
| Contact Form | DPST |
| Horsepower | 3 hp |
| Voltage Rating | 240 VAC |
| DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS |
| Visible blade, double break switching action |
| Highly visible red handle grip designed for hook stick operation |
| Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking |
| Center punch provided for field drilling to allow on padlocking |
| Handle can be padlocked in the off position with up to (3) padlocks with 5/16 in hasps |
| Generous top, bottom and side gutters that meet or exceed NEC® wire bending space requirements |
| Tangential knockouts through 600 A for easy conduit lineup |
| Side hinged door that opens past 180 deg for easier wiring |
| Lugs are field convertible to copper body and to a wide variety of compression connectors |
| Front removable mechanical lugs that are suitable for copper aluminum 60 or 75 deg C conductors |
| Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication |
| Drawn cover for increased rigidity and resistance to abuse |
| Top key hole and bottom mounting holes provide easy 2 or 3-point mounting |
| Without insulation |
