Siemens

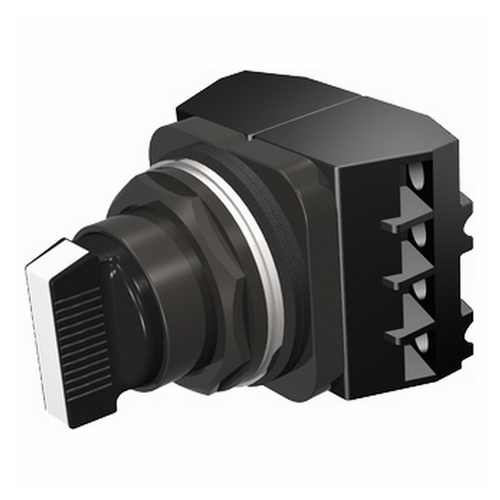

Siemens SpeedFax™ 52SX2CABA2 Non-Illuminated Selector Switch, 30 mm, 2NO-2NC, Short Lever Operator, White
Custom_Product_Images_Illustration
Siemens
Siemens SpeedFax™ 52SX2CABA2 Non-Illuminated Selector Switch, 30 mm, 2NO-2NC, Short Lever Operator, White
SKU790263
MFGR #52SX2CABA2
Your Cost: $110.00/ea
List: SIEMENS 52SX2CABA2 SEL SWITCH MNTD WHT INS SHT LVR 3POS
SIEMENS 52SX2CABA2 SEL SWITCH MNTD WHT INS SHT LVR 3POS
Actuator Rotary Alternate Catalog Number US2:52SX2CABA2 ARRA Compliant C Bezel|Housing Zinc Bezel Brand Siemens Buy American Compliant C Cam Code C Catalog Number 52SX2CABA2 Color White Connection Type Threaded Contact Configuration 2NO-2NC Contact Mode Maintained Contact Rating 60 A/12 A at 110/500 VAC Country of Origin MX Currency USD Enclosure Type NEMA 4X/IP66/20 Environmental Conditions -35 to 70 ° C EU RoHS Indicator C Finish BlackMax Gross Volume Per Pack 12.11 Gross Volume UOM in Gross Weight Per Pack 0.4000 lb Gross Weight per Pack Metric 0.18 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509025 Height 2.3000 in Height [Metric] 5.8420 cm Length 2.7000 in Length [Metric] 6.8580 cm Manufacturer Siemens Material Metal Number of Positions 3 Operator Type Short Lever Returnable Y Size 30 mm Standards ARRA, Buy American Act and RoHS Compliant, CSA File No LR6535, UL File E22655 in Vol. 6 (7) Sec. 13 (2) Stock Status NONSTOCK Throw Left-Center-Right Type Class 52 UNSPSC 39122214 UPC 11 78308715363 UPC 12 783087153639 Width 1.9500 in Width [Metric] 4.9530 cm Octagonal mounting nuts Heavy duty rated NEMA A600/P600 contact Positively driven contacts Positive indexing selectors Bifurcated movable contacts Boots not required for type 4 Touch safe terminals White Insert 60 A/12 A at 110/500 VAC AC-15 Contact block mount Die cast zinc bezel Die cast zinc beze
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator | Rotary |
| Alternate Catalog Number | US2:52SX2CABA2 |
| ARRA Compliant | C |
| Bezel|Housing | Zinc Bezel |
| Brand | Siemens |
| Buy American Compliant | C |
| Cam Code | C |
| Catalog Number | 52SX2CABA2 |
| Color | White |
| Connection Type | Threaded |
| Contact Configuration | 2NO-2NC |
| Contact Mode | Maintained |
| Contact Rating | 60 A/12 A at 110/500 VAC |
| Country of Origin | MX |
| Currency | USD |
| Enclosure Type | NEMA 4X/IP66/20 |
| Environmental Conditions | -35 to 70 ° C |
| EU RoHS Indicator | C |
| Finish | BlackMax |
| Gross Volume Per Pack | 12.11 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.4000 lb |
| Gross Weight per Pack Metric | 0.18 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509025 |
| Height | 2.3000 in |
| Height [Metric] | 5.8420 cm |
| Length | 2.7000 in |
| Length [Metric] | 6.8580 cm |
| Manufacturer | Siemens |
| Material | Metal |
| Number of Positions | 3 |
| Operator Type | Short Lever |
| Returnable | Y |
| Size | 30 mm |
| Standards | ARRA, Buy American Act and RoHS Compliant, CSA File No LR6535, UL File E22655 in Vol. 6 (7) Sec. 13 (2) |
| Stock Status | NONSTOCK |
| Throw | Left-Center-Right |
| Type | Class 52 |
| UNSPSC | 39122214 |
| UPC 11 | 78308715363 |
| UPC 12 | 783087153639 |
| Width | 1.9500 in |
| Width [Metric] | 4.9530 cm |
| Octagonal mounting nuts |
| Heavy duty rated NEMA A600/P600 contact |
| Positively driven contacts |
| Positive indexing selectors |
| Bifurcated movable contacts |
| Boots not required for type 4 |
| Touch safe terminals |
| White Insert |
| 60 A/12 A at 110/500 VAC AC-15 |
| Contact block mount |
| Die cast zinc bezel |
| Die cast zinc beze |
