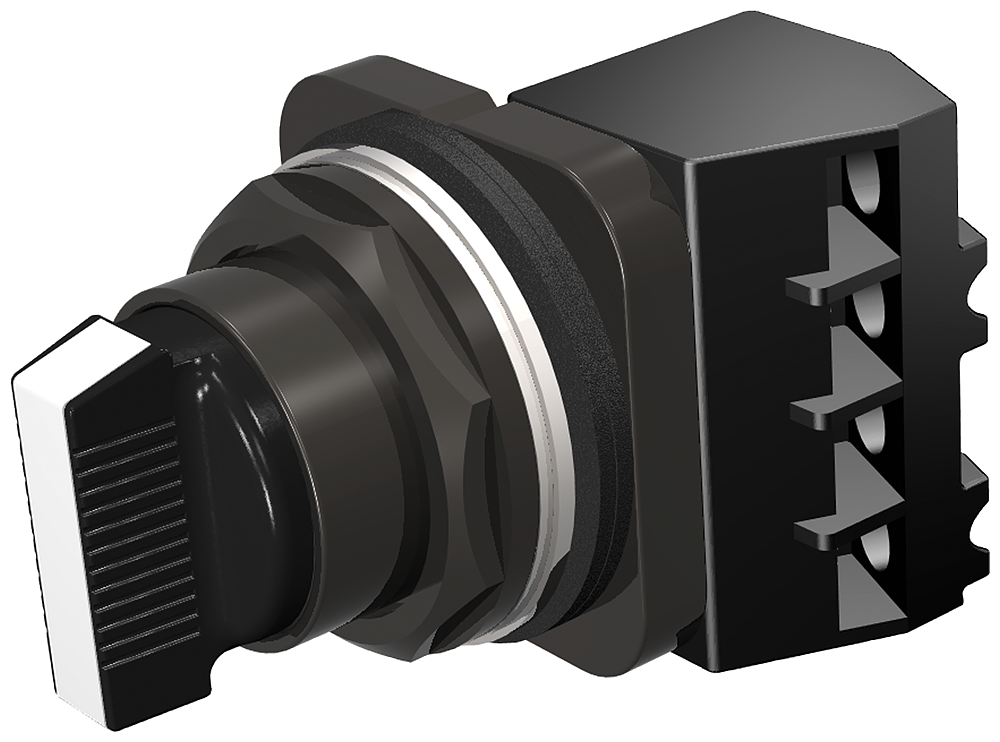

Siemens SpeedFax™ 52SX2AABK1 Non-Illuminated Selector Switch, 30 mm, 1NO, Short Lever Operator, White
Custom_Product_Images_Illustration
Siemens SpeedFax™ 52SX2AABK1 Non-Illuminated Selector Switch, 30 mm, 1NO, Short Lever Operator, White
SKU391774
MFGR #52SX2AABK1
Your Cost: $59.27/ea
List: SIEMENS 52SX2AABK1 A CAM 2PS MNT SL SW
SIEMENS 52SX2AABK1 A CAM 2PS MNT SL SW
Actuator Rotary Alternate Catalog Number US2:52SX2AABK1 ARRA Compliant C Bezel|Housing Zinc Bezel Brand Siemens Buy American Compliant C Cam Code A Catalog Number 52SX2AABK1 Color White Connection Type Threaded Contact Configuration 1NC Contact Mode Maintained Contact Rating 60 A/12 A at 110/500 VAC Country of Origin MX Currency USD Enclosure Type NEMA 4X/IP66/20 Environmental Conditions -35 to 70 ° C EU RoHS Indicator C Finish BlackMax Gross Volume Per Pack 117.80 Gross Volume UOM in Gross Weight Per Pack 0.3500 lb Gross Weight per Pack Metric 0.16 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509025 Height 1.8500 in Height [Metric] 4.6990 cm Length 2.5000 in Length [Metric] 6.3500 cm Manufacturer Siemens Material Metal Number of Positions 2 Operator Type Short Lever Returnable Y Size 30 mm Standards ARRA, Buy American Act and RoHS Compliant, CSA File No LR6535, UL File E22655 in Vol. 6 (7) Sec. 13 (2) Stock Status NONSTOCK Throw Right Type Class 52 UNSPSC 39122214 UPC 11 78308715352 UPC 12 783087153523 Width 2.5000 in Width [Metric] 6.3500 cm Octagonal mounting nuts Heavy duty rated NEMA A600/P600 contact Positively driven contacts Positive indexing selectors Bifurcated movable contacts Boots not required for type 4 Touch safe terminals White Insert 60 A/12 A at 110/500 VAC AC-15 Contact block mount Die cast zinc bezel Die cast zinc beze
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator | Rotary |
| Alternate Catalog Number | US2:52SX2AABK1 |
| ARRA Compliant | C |
| Bezel|Housing | Zinc Bezel |
| Brand | Siemens |
| Buy American Compliant | C |
| Cam Code | A |
| Catalog Number | 52SX2AABK1 |
| Color | White |
| Connection Type | Threaded |
| Contact Configuration | 1NC |
| Contact Mode | Maintained |
| Contact Rating | 60 A/12 A at 110/500 VAC |
| Country of Origin | MX |
| Currency | USD |
| Enclosure Type | NEMA 4X/IP66/20 |
| Environmental Conditions | -35 to 70 ° C |
| EU RoHS Indicator | C |
| Finish | BlackMax |
| Gross Volume Per Pack | 117.80 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.3500 lb |
| Gross Weight per Pack Metric | 0.16 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509025 |
| Height | 1.8500 in |
| Height [Metric] | 4.6990 cm |
| Length | 2.5000 in |
| Length [Metric] | 6.3500 cm |
| Manufacturer | Siemens |
| Material | Metal |
| Number of Positions | 2 |
| Operator Type | Short Lever |
| Returnable | Y |
| Size | 30 mm |
| Standards | ARRA, Buy American Act and RoHS Compliant, CSA File No LR6535, UL File E22655 in Vol. 6 (7) Sec. 13 (2) |
| Stock Status | NONSTOCK |
| Throw | Right |
| Type | Class 52 |
| UNSPSC | 39122214 |
| UPC 11 | 78308715352 |
| UPC 12 | 783087153523 |
| Width | 2.5000 in |
| Width [Metric] | 6.3500 cm |
| Octagonal mounting nuts |
| Heavy duty rated NEMA A600/P600 contact |
| Positively driven contacts |
| Positive indexing selectors |
| Bifurcated movable contacts |
| Boots not required for type 4 |
| Touch safe terminals |
| White Insert |
| 60 A/12 A at 110/500 VAC AC-15 |
| Contact block mount |
| Die cast zinc bezel |
| Die cast zinc beze |
