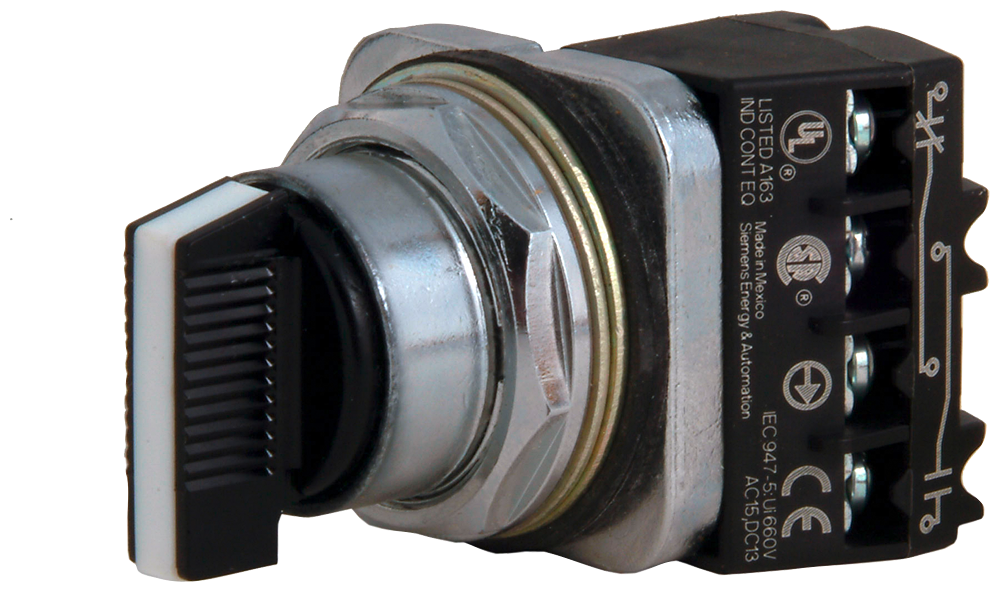

Siemens SpeedFax™ 52SA2CDBA1 Non-Illuminated Selector Switch, 30 mm, 1NO-1NC, Short Lever Operator, White
Siemens SpeedFax™ 52SA2CDBA1 Non-Illuminated Selector Switch, 30 mm, 1NO-1NC, Short Lever Operator, White
SKU196762
MFGR #52SA2CDBA1
Your Cost: $89.49/ea
List: SIEMENS 52SA2CDBA1 C CAM 3POS SEL SW
SIEMENS 52SA2CDBA1 C CAM 3POS SEL SW
Alternate Catalog Number US2:52SA2CDBA1 ARRA Compliant C Bezel|Housing Metal Brand Siemens Buy American Compliant C Cam Code C Catalog Number 52SA2CDBA1 Color White Connection Type Threaded Contact Configuration 1NO-1NC Contact Mode Spring Return Contact Rating 60 A at 110 VAC/30 A at 230 VAC/15 A at 400 VAC/12 A at 500 VAC Country of Origin MX Currency USD Enclosure Type IP20/IP66 Environmental Conditions -40 to 85 deg C Storage Temperature EU RoHS Indicator C Finish Polished Chrome Gross Volume Per Pack 12.00 Gross Volume UOM in Gross Weight Per Pack 0.3000 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509025 Height 2.3000 in Height [Metric] 5.8420 cm Length 2.7000 in Length [Metric] 6.8580 cm Manufacturer Siemens Material Metal Number of Positions 3 Operator Type Short Lever Returnable Y Size 30 mm Standards UL File No. E22655 in Vol. 6 (7) Section 13 (2) Stock Status NONSTOCK Terminal Type Screw Throw Left to Right Type Heavy Duty Oiltight/Watertight UNSPSC 39122214 UPC 11 78308715653 UPC 12 783087156531 Width 1.8000 in Width [Metric] 4.5720 cm Octagonal mounting nuts Heavy duty rated NEMA A600/P600 contact Positively driven contacts Positive indexing selectors Bifurcated movable contacts Boots not required for type 4 Touch safe terminals 60 A/12 A at 110/500 VAC AC-15 Contact block mount Die cast zinc beze
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | US2:52SA2CDBA1 |
| ARRA Compliant | C |
| Bezel|Housing | Metal |
| Brand | Siemens |
| Buy American Compliant | C |
| Cam Code | C |
| Catalog Number | 52SA2CDBA1 |
| Color | White |
| Connection Type | Threaded |
| Contact Configuration | 1NO-1NC |
| Contact Mode | Spring Return |
| Contact Rating | 60 A at 110 VAC/30 A at 230 VAC/15 A at 400 VAC/12 A at 500 VAC |
| Country of Origin | MX |
| Currency | USD |
| Enclosure Type | IP20/IP66 |
| Environmental Conditions | -40 to 85 deg C Storage Temperature |
| EU RoHS Indicator | C |
| Finish | Polished Chrome |
| Gross Volume Per Pack | 12.00 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.3000 lb |
| Gross Weight per Pack Metric | 0.14 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509025 |
| Height | 2.3000 in |
| Height [Metric] | 5.8420 cm |
| Length | 2.7000 in |
| Length [Metric] | 6.8580 cm |
| Manufacturer | Siemens |
| Material | Metal |
| Number of Positions | 3 |
| Operator Type | Short Lever |
| Returnable | Y |
| Size | 30 mm |
| Standards | UL File No. E22655 in Vol. 6 (7) Section 13 (2) |
| Stock Status | NONSTOCK |
| Terminal Type | Screw |
| Throw | Left to Right |
| Type | Heavy Duty Oiltight/Watertight |
| UNSPSC | 39122214 |
| UPC 11 | 78308715653 |
| UPC 12 | 783087156531 |
| Width | 1.8000 in |
| Width [Metric] | 4.5720 cm |
| Octagonal mounting nuts |
| Heavy duty rated NEMA A600/P600 contact |
| Positively driven contacts |
| Positive indexing selectors |
| Bifurcated movable contacts |
| Boots not required for type 4 |
| Touch safe terminals |
| 60 A/12 A at 110/500 VAC AC-15 |
| Contact block mount |
| Die cast zinc beze |
