Siemens

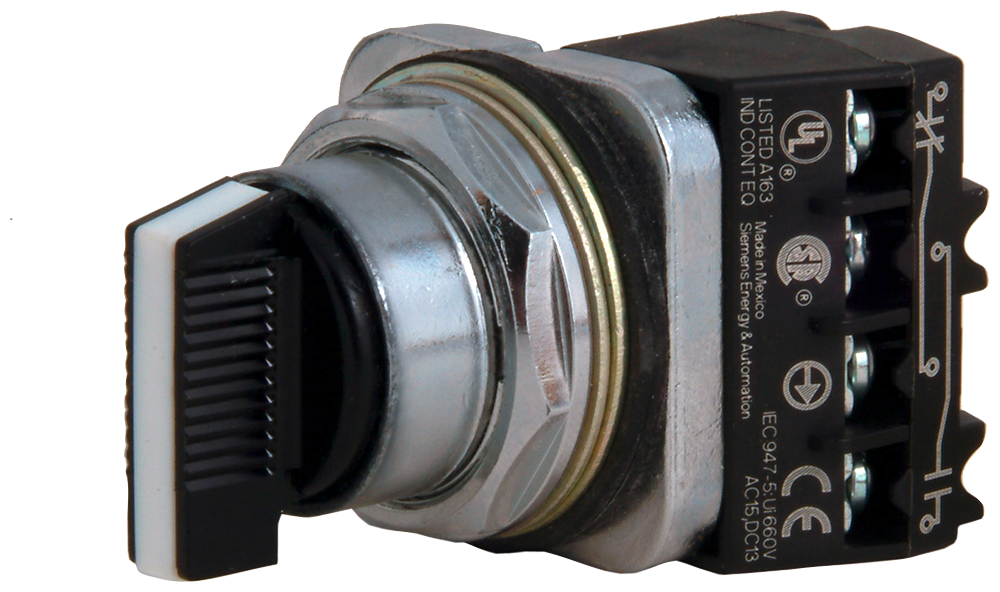

Siemens SpeedFax™ 52SA2CABA1 Non-Illuminated Selector Switch, 30 mm, 1NO-1NC, Short Lever Operator, White
Custom_Product_Images_Illustration
Siemens
Siemens SpeedFax™ 52SA2CABA1 Non-Illuminated Selector Switch, 30 mm, 1NO-1NC, Short Lever Operator, White
SKU156910
MFGR #52SA2CABA1
Your Cost: $68.91/ea
List: SIEMENS 52SA2CABA1 SELECTOR SW 3 POS
SIEMENS 52SA2CABA1 SELECTOR SW 3 POS
Actuator Rotary Alternate Catalog Number US2:52SA2CABA1 ARRA Compliant C Bezel|Housing Die Cast Zinc Bezel Buy American Compliant C Cam Code C Catalog Number 52SA2CABA1 Connection Type Threaded Contact Mode Maintained Contact Rating 60 A/12 A at 110/500 VAC Country of Origin MX Currency USD Enclosure Type NEMA 1/3/3R/4/4X/12/13/IP66/20 Environmental Conditions -35 to 70 ° C EU RoHS Indicator C Finish Polished Chrome Gross Volume Per Pack 12.11 Gross Volume UOM in Gross Weight Per Pack 0.3000 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509025 Height 2.3000 in Height [Metric] 5.8420 cm Length 2.7000 in Length [Metric] 6.8580 cm Material Metal Number of Positions 3 Returnable Y Standards ARRA, Buy American Act and RoHS Compliant, CSA File No LR6535, UL File No E22655 in Vol. 6 (7) Sec. 13 (2) Terminal Type Screw Throw Right Type Class 52 UNSPSC 39122214 UPC 11 78308715647 UPC 12 783087156470 Width 1.9500 in Width [Metric] 4.9530 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Color White Contact Configuration 1NO-1NC Operator Type Short Lever Size 30 mm Octagonal mounting nuts Heavy duty rated NEMA A600/P600 contact Positively driven contacts Positive indexing selectors Bifurcated movable contacts Boots not required for type 4 Touch safe terminals 60 A/12 A at 110/500 VAC AC-15 Contact block mount Die cast zinc beze
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator | Rotary |
| Alternate Catalog Number | US2:52SA2CABA1 |
| ARRA Compliant | C |
| Bezel|Housing | Die Cast Zinc Bezel |
| Buy American Compliant | C |
| Cam Code | C |
| Catalog Number | 52SA2CABA1 |
| Connection Type | Threaded |
| Contact Mode | Maintained |
| Contact Rating | 60 A/12 A at 110/500 VAC |
| Country of Origin | MX |
| Currency | USD |
| Enclosure Type | NEMA 1/3/3R/4/4X/12/13/IP66/20 |
| Environmental Conditions | -35 to 70 ° C |
| EU RoHS Indicator | C |
| Finish | Polished Chrome |
| Gross Volume Per Pack | 12.11 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.3000 lb |
| Gross Weight per Pack Metric | 0.14 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509025 |
| Height | 2.3000 in |
| Height [Metric] | 5.8420 cm |
| Length | 2.7000 in |
| Length [Metric] | 6.8580 cm |
| Material | Metal |
| Number of Positions | 3 |
| Returnable | Y |
| Standards | ARRA, Buy American Act and RoHS Compliant, CSA File No LR6535, UL File No E22655 in Vol. 6 (7) Sec. 13 (2) |
| Terminal Type | Screw |
| Throw | Right |
| Type | Class 52 |
| UNSPSC | 39122214 |
| UPC 11 | 78308715647 |
| UPC 12 | 783087156470 |
| Width | 1.9500 in |
| Width [Metric] | 4.9530 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Color | White |
| Contact Configuration | 1NO-1NC |
| Operator Type | Short Lever |
| Size | 30 mm |
| Octagonal mounting nuts |
| Heavy duty rated NEMA A600/P600 contact |
| Positively driven contacts |
| Positive indexing selectors |
| Bifurcated movable contacts |
| Boots not required for type 4 |
| Touch safe terminals |
| 60 A/12 A at 110/500 VAC AC-15 |
| Contact block mount |
| Die cast zinc beze |
