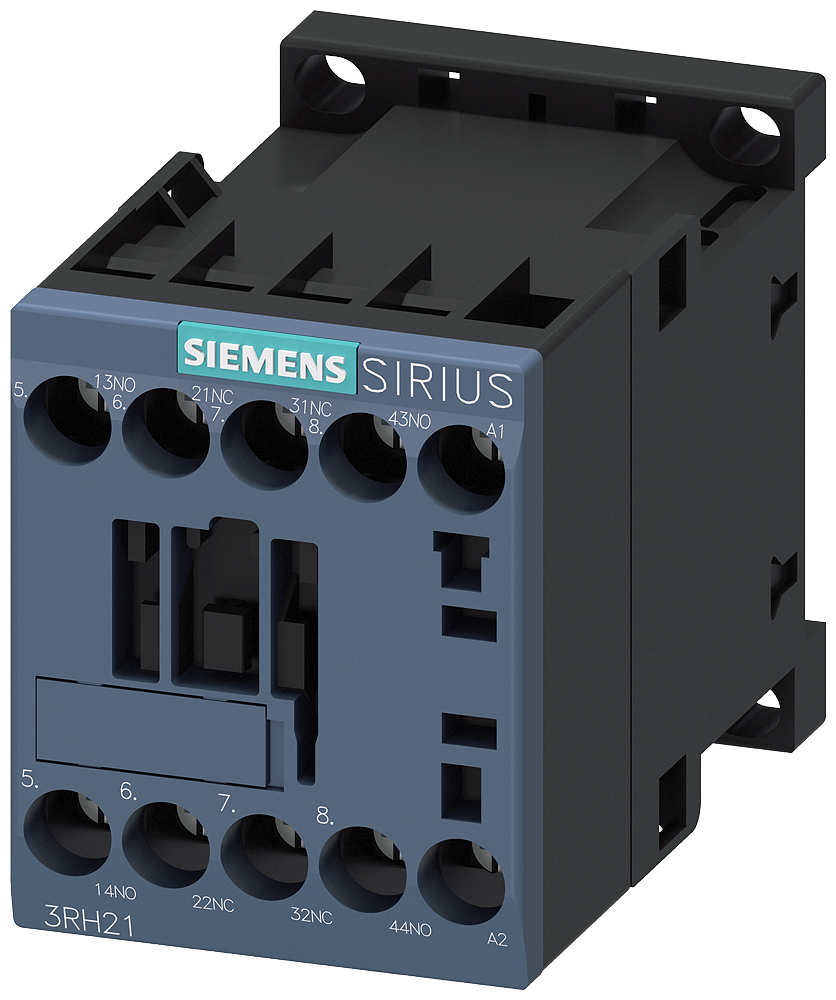

Siemens SIRIUS 3RH2 Contactor Relay, 10 A, 2NO-2NC Contact Form, 110/120 VAC Coil
Relays
822771
MFG #: 3RH21221AK60
Siemens
66.06000
/ ea
SIEMENS 3RH21221AK60 CONTACTOR RELAY 2NO+2NC AC 120V SCREW
- 3D Rendering URL - G_NSA0_XX_92575V.pdf(3D Rendering URL)
- Brochure URL - 3RH21221AK60_datasheet_en.pdf(Brochure URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Spec Sheet URL - 10991_MF4V9QSKUATZWD87.pdf(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=3RH21221AK60&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=3RH2122-1AK60&language=en(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- Features
| +/-180 deg rotation possible on vertical mounting surface, can be tilted forward and backward by +/-22.5 deg on vertical mounting surface |
| 690 VAC insulation voltage |
| 8 to 33 ms AC closing delay, 4 to 15 ms AC opening delay |
| 10 to 15 ms arcing time |
| S00 size of contactor |
| 30000000 cycles of contactor typical, 5000000 cycles of the contactor with added electronics compatible auxiliary switch block typical, 10000000 cycles of the contactor with added auxiliary switch block typical mechanical service life |
| (2) 0.5 to 1.5 sq-mm, (2) 0.75 to 2.5 sq-mm, (2) 4 sq-mm single or multi-stranded, (2) 0.5 to 1.5 sq-mm, (2) 0.75 to 2.5 sq-mm finely stranded with core end processing, (2) 20 to 16 AWG, (2) 18 to 14 AWG, (2) 12-conductors for auxiliary contacts type of connectable conductor cross-sections |
