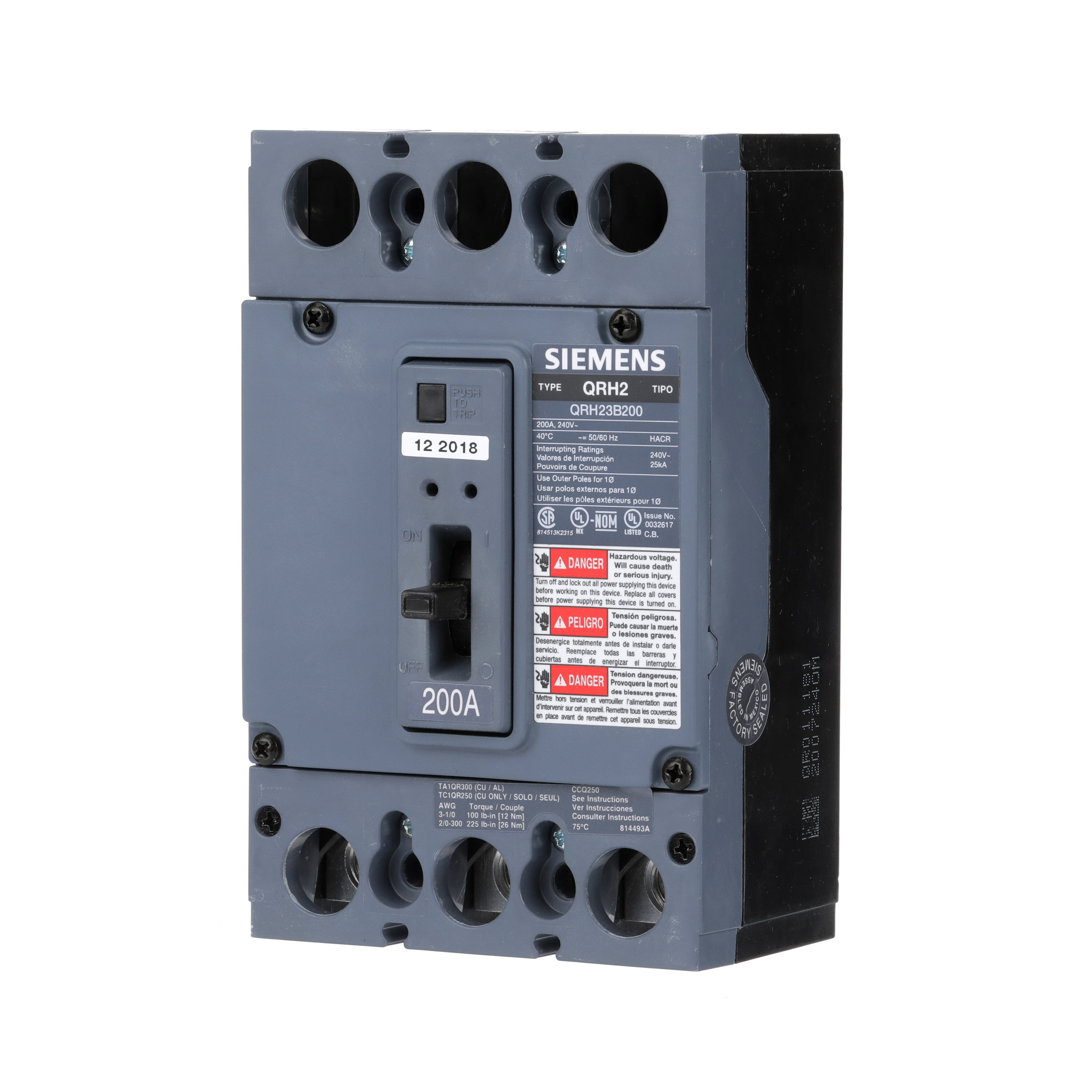

Siemens QRH23B200 Low Voltage Molded Case Circuit Breaker, 240 VAC, 200 A, 25 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Siemens QRH23B200 Low Voltage Molded Case Circuit Breaker, 240 VAC, 200 A, 25 kA Interrupt, 3 Poles
SKU991985
MFGR #QRH23B200
$/ea
Siemens Molded Case Circuit Breaker, Low Voltage, 240 VAC, 200 A, 50/60 Hz, 25 kA Interrupt, QR Frame, Thermal Magnetic Trip, 3 Poles, 3-Phase, Load Lug, NEMA 1/3R, Flush Mount, 40 deg C, 7 in H x 4.5 in W x 2.53 in D
Siemens Molded Case Circuit Breaker, Low Voltage, 240 VAC, 200 A, 50/60 Hz, 25 kA Interrupt, QR Frame, Thermal Magnetic Trip, 3 Poles, 3-Phase, Load Lug, NEMA 1/3R, Flush Mount, 40 deg C, 7 in H x 4.5 in W x 2.53 in D
Alternate Catalog Number US2:QRH23B200 ARRA Compliant C Buy American Compliant C Catalog Number QRH23B200 Connection Type Load Lug Country of Origin MX Currency USD Dimensions 7 in H x 4.5 in W x 2.53 in D Enclosure Type NEMA 1/3R EU RoHS Indicator C Frame QR Frequency Rating 50/60 Hz Gross Volume Per Pack 78.75 Gross Volume UOM in Gross Weight Per Pack 4.5000 lb Gross Weight per Pack Metric 2.04 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 4.2000 in Height [Metric] 10.6680 cm Length 7.3000 in Length [Metric] 18.5420 cm Mounting Type Flush Number Of Poles 3 Phase 3 pH Returnable Y Standard UL489/CSA-C22.2/NOM-003 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489CSA 22.2HACR Rated Temperature Rating 40 °C Type General Purpose Low Voltage UNSPSC 39121601 UPC 11 80476613680 UPC 12 804766136801 Width 4.7000 in Width [Metric] 11.9380 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 200 A Interrupt Rating 25 kA Trip Type Thermal Magnetic Voltage Rating 240 VAC FIELD INSTALLABLE INTERNAL ACCESSORIES Field installable internal accessories
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | US2:QRH23B200 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | QRH23B200 |
| Connection Type | Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 7 in H x 4.5 in W x 2.53 in D |
| Enclosure Type | NEMA 1/3R |
| EU RoHS Indicator | C |
| Frame | QR |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 78.75 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 4.5000 lb |
| Gross Weight per Pack Metric | 2.04 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 4.2000 in |
| Height [Metric] | 10.6680 cm |
| Length | 7.3000 in |
| Length [Metric] | 18.5420 cm |
| Mounting Type | Flush |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Returnable | Y |
| Standard | UL489/CSA-C22.2/NOM-003 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489CSA 22.2HACR Rated |
| Temperature Rating | 40 °C |
| Type | General Purpose Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 80476613680 |
| UPC 12 | 804766136801 |
| Width | 4.7000 in |
| Width [Metric] | 11.9380 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 200 A |
| Interrupt Rating | 25 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
| FIELD INSTALLABLE INTERNAL ACCESSORIES |
| Field installable internal accessories |
