Siemens

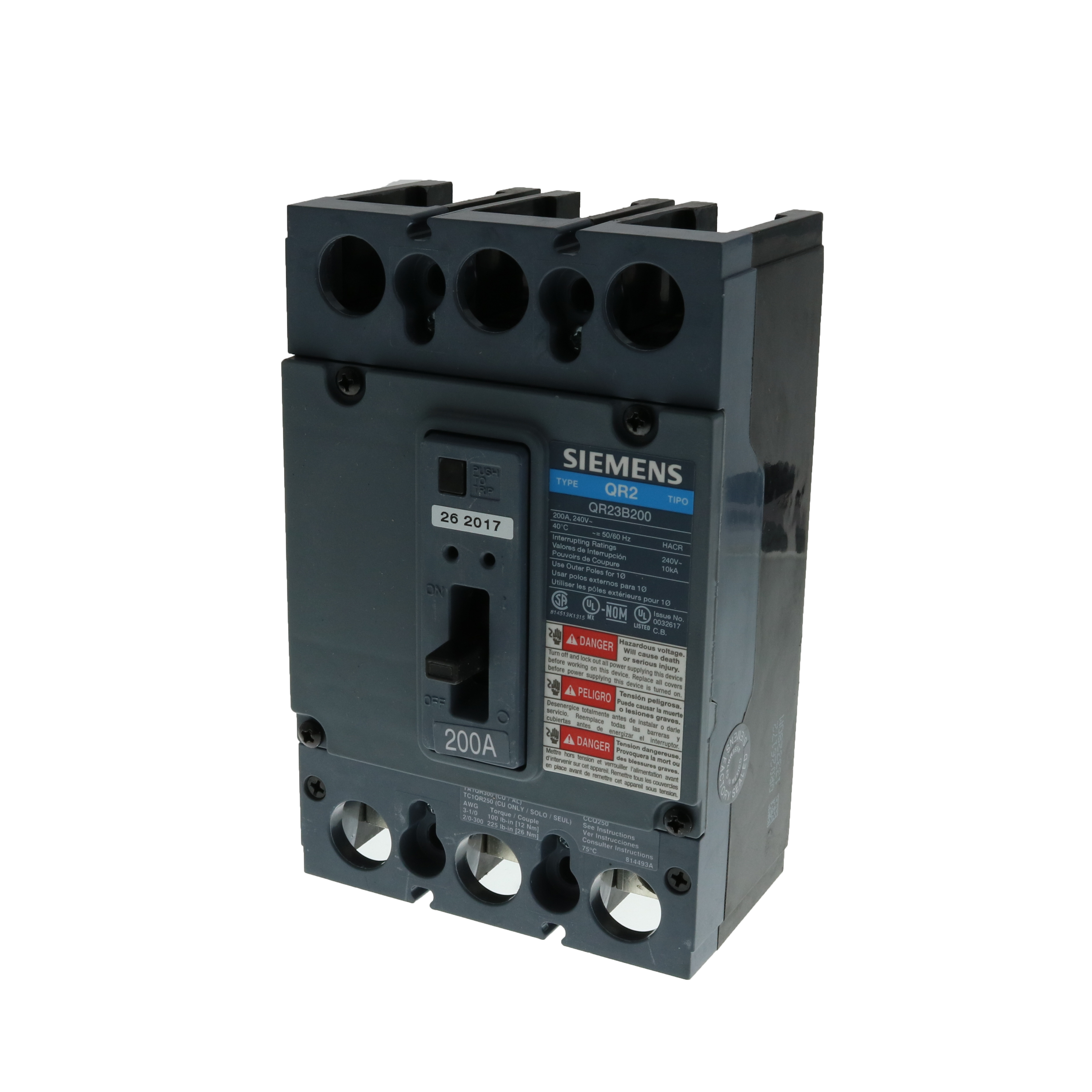

Siemens QR23B200 Low Voltage Molded Case Circuit Breaker, 240 VAC, 200 A, 10 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Siemens
Siemens QR23B200 Low Voltage Molded Case Circuit Breaker, 240 VAC, 200 A, 10 kA Interrupt, 3 Poles
SKU991797
MFGR #QR23B200
Your Cost: $972.72/ea
List: Siemens Molded Case Circuit Breaker, Low Voltage, 240 VAC, 200 A, 50/60 Hz, 10 kA Interrupt, QR Frame, Thermal Magnetic Trip, 3 Poles, 3-Phase, Load Lug, 3 AWG to 300 kcmil Cu Wire, NEMA 1/3R, Flush Mount, 40 deg C, 7 in H x 4.5 in W x 2.53 in D
Siemens Molded Case Circuit Breaker, Low Voltage, 240 VAC, 200 A, 50/60 Hz, 10 kA Interrupt, QR Frame, Thermal Magnetic Trip, 3 Poles, 3-Phase, Load Lug, 3 AWG to 300 kcmil Cu Wire, NEMA 1/3R, Flush Mount, 40 deg C, 7 in H x 4.5 in W x 2.53 in D
Alternate Catalog Number US2:QR23B200 ARRA Compliant C Buy American Compliant C Catalog Number QR23B200 Connection Type Load Lug Country of Origin MX Currency USD Dimensions 7 in H x 4.5 in W x 2.53 in D Enclosure Type NEMA 1/3R EU RoHS Indicator C Frame QR Frequency Rating 50/60 Hz Gross Volume Per Pack 171.64 Gross Volume UOM in Gross Weight Per Pack 4.0100 lb Gross Weight per Pack Metric 2.04 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 7.3000 in Height [Metric] 18.5420 cm Length 4.9500 in Length [Metric] 12.5730 cm Mounting Type Flush Number Of Poles 3 Phase 3 pH Returnable Y Standard UL489/CSA-C22.2/NOM-003 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489CSA 22.2HACR Rated Temperature Rating 40 °C Type General Purpose Low Voltage UNSPSC 39121601 UPC 11 80476613666 UPC 12 804766136665 Width 4.7500 in Width [Metric] 12.0650 cm Wire Size 3 AWG to 300 kcmil Stock Status NORMALLY STOCKED Brand Siemens Manufacturer Siemens Amperage Rating 200 A Interrupt Rating 10 kA Trip Type Thermal Magnetic Voltage Rating 240 VAC FIELD INSTALLABLE INTERNAL ACCESSORIES Field installable internal accessories No lugs installed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | US2:QR23B200 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | QR23B200 |
| Connection Type | Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 7 in H x 4.5 in W x 2.53 in D |
| Enclosure Type | NEMA 1/3R |
| EU RoHS Indicator | C |
| Frame | QR |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 171.64 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 4.0100 lb |
| Gross Weight per Pack Metric | 2.04 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 7.3000 in |
| Height [Metric] | 18.5420 cm |
| Length | 4.9500 in |
| Length [Metric] | 12.5730 cm |
| Mounting Type | Flush |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Returnable | Y |
| Standard | UL489/CSA-C22.2/NOM-003 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489CSA 22.2HACR Rated |
| Temperature Rating | 40 °C |
| Type | General Purpose Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 80476613666 |
| UPC 12 | 804766136665 |
| Width | 4.7500 in |
| Width [Metric] | 12.0650 cm |
| Wire Size | 3 AWG to 300 kcmil |
| Stock Status | NORMALLY STOCKED |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 200 A |
| Interrupt Rating | 10 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
| FIELD INSTALLABLE INTERNAL ACCESSORIES |
| Field installable internal accessories |
| No lugs installed |
