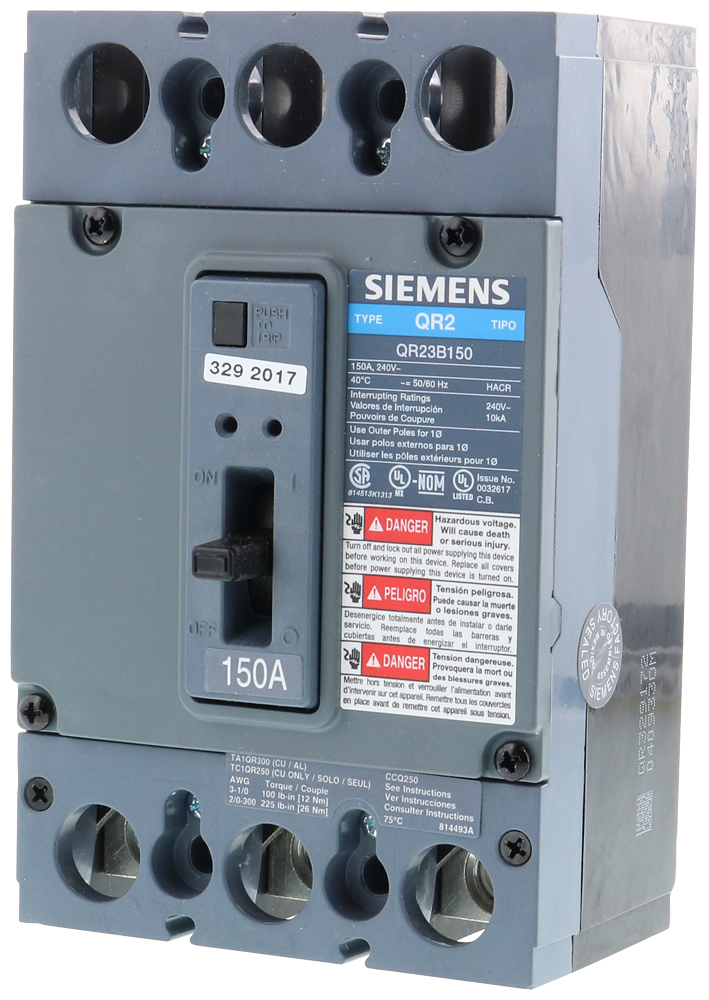

Siemens QR23B150 Low Voltage Molded Case Circuit Breaker, 240 VAC, 150 A, 10 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Siemens QR23B150 Low Voltage Molded Case Circuit Breaker, 240 VAC, 150 A, 10 kA Interrupt, 3 Poles
SKU991793
MFGR #QR23B150
Your Cost: $972.72/ea
List: Siemens Molded Case Circuit Breaker, Low Voltage, 240 VAC, 150 A, 50/60 Hz, 10 kA Interrupt, QR Frame, Thermal Magnetic Trip, 3 Poles, Load Lug, 3 AWG to 300 kcmil Cu Wire, NEMA 1/3R, Flush Mount, 40 deg C, 7 in H x 4.5 in W x 2.53 in D
Siemens Molded Case Circuit Breaker, Low Voltage, 240 VAC, 150 A, 50/60 Hz, 10 kA Interrupt, QR Frame, Thermal Magnetic Trip, 3 Poles, Load Lug, 3 AWG to 300 kcmil Cu Wire, NEMA 1/3R, Flush Mount, 40 deg C, 7 in H x 4.5 in W x 2.53 in D
Alternate Catalog Number US2:QR23B150 ARRA Compliant C Buy American Compliant C Catalog Number QR23B150 Connection Type Load Lug Country of Origin MX Currency USD Dimensions 7 in H x 4.5 in W x 2.53 in D Enclosure Type NEMA 1/3R EU RoHS Indicator C Frame QR Frequency Rating 50/60 Hz Gross Volume Per Pack 163.00 Gross Volume UOM in Gross Weight Per Pack 4.5000 lb Gross Weight per Pack Metric 2.04 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 7.4000 in Height [Metric] 18.7960 cm Length 4.9500 in Length [Metric] 12.5730 cm Mounting Type Flush Number Of Poles 3 Returnable Y Standard UL489/CSA-C22.2/NOM-003 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489HACR Rated Temperature Rating 40 °C Type Low Voltage UNSPSC 39121601 UPC 11 80476613664 UPC 12 804766136641 Width 4.4500 in Width [Metric] 11.3030 cm Wire Size 3 AWG to 300 kcmil Cu Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 150 A Interrupt Rating 10 kA Trip Type Thermal Magnetic Voltage Rating 240 VAC QR 250A 240V Breakers
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | US2:QR23B150 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | QR23B150 |
| Connection Type | Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 7 in H x 4.5 in W x 2.53 in D |
| Enclosure Type | NEMA 1/3R |
| EU RoHS Indicator | C |
| Frame | QR |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 163.00 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 4.5000 lb |
| Gross Weight per Pack Metric | 2.04 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 7.4000 in |
| Height [Metric] | 18.7960 cm |
| Length | 4.9500 in |
| Length [Metric] | 12.5730 cm |
| Mounting Type | Flush |
| Number Of Poles | 3 |
| Returnable | Y |
| Standard | UL489/CSA-C22.2/NOM-003 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489HACR Rated |
| Temperature Rating | 40 °C |
| Type | Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 80476613664 |
| UPC 12 | 804766136641 |
| Width | 4.4500 in |
| Width [Metric] | 11.3030 cm |
| Wire Size | 3 AWG to 300 kcmil Cu |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 150 A |
| Interrupt Rating | 10 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
| QR 250A 240V Breakers |
