Siemens

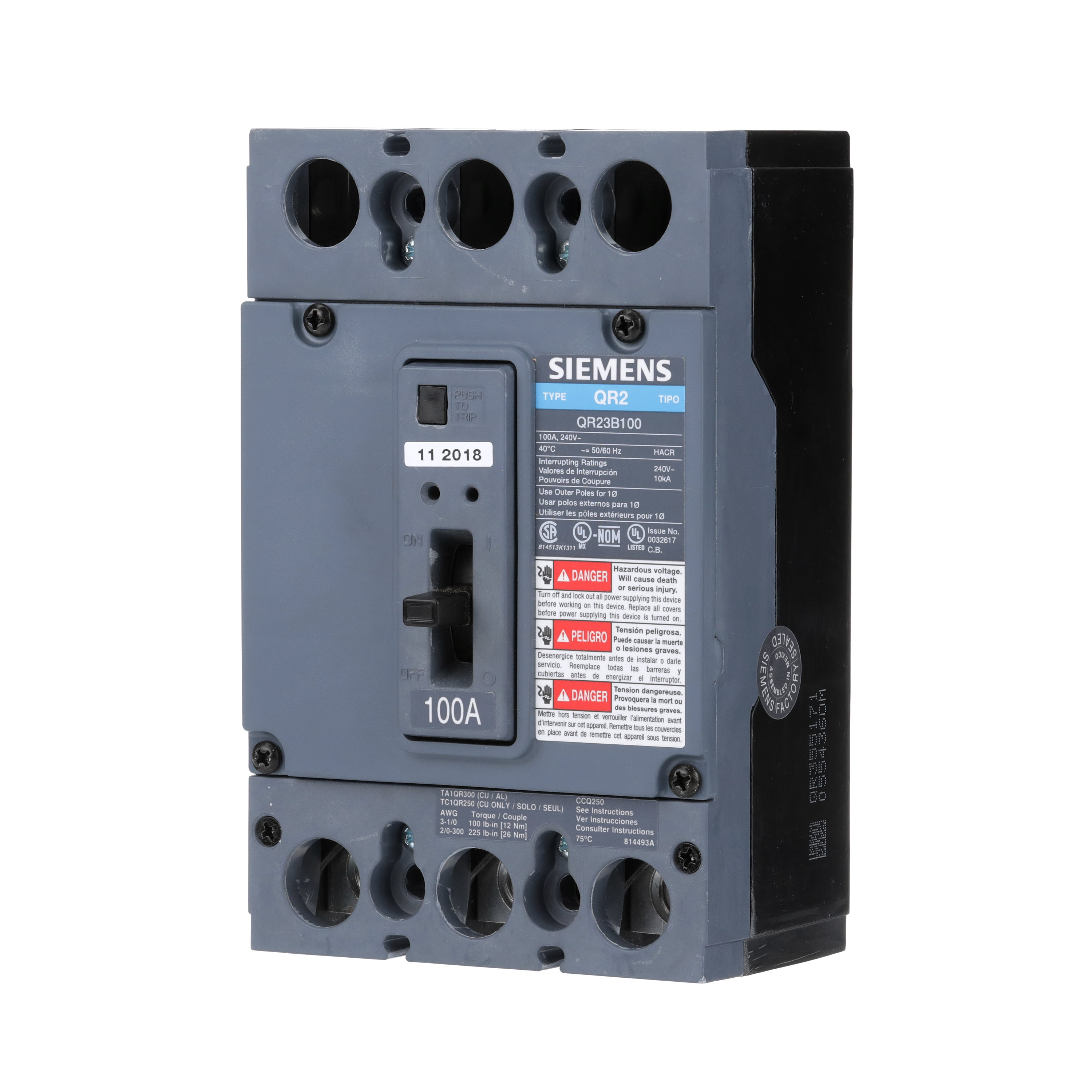

Siemens QR23B100 Molded Case Circuit Breaker, 240 VAC, 100 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Siemens
Siemens QR23B100 Molded Case Circuit Breaker, 240 VAC, 100 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU1019716
MFGR #QR23B100
Your Cost: $981.92/ea
List: Siemens Molded Case Circuit Breaker, 240 VAC, 100 A, 50/60 Hz, 10 kA Interrupt, QR Frame, Thermal Magnetic Trip, 3 Poles, 3 AWG to 300 kcmil Cu Wire, NEMA 1/3R, Flush Mount, 40 deg C, 7 in H x 4.5 in W x 2.53 in D
Siemens Molded Case Circuit Breaker, 240 VAC, 100 A, 50/60 Hz, 10 kA Interrupt, QR Frame, Thermal Magnetic Trip, 3 Poles, 3 AWG to 300 kcmil Cu Wire, NEMA 1/3R, Flush Mount, 40 deg C, 7 in H x 4.5 in W x 2.53 in D
Alternate Catalog Number US2:QR23B100 ARRA Compliant C Buy American Compliant C Catalog Number QR23B100 Connection Type Load Lug Country of Origin MX Currency USD Dimensions 7 in H x 4.5 in W x 2.53 in D Enclosure Type NEMA 1/3R EU RoHS Indicator C Frame QR Frequency Rating 50/60 Hz Gross Volume Per Pack 78.75 Gross Volume UOM in Gross Weight Per Pack 4.5000 lb Gross Weight per Pack Metric 2.04 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 4.2000 in Height [Metric] 10.6680 cm Length 7.3000 in Length [Metric] 18.5420 cm Mounting Type Flush Number Of Poles 3 Returnable Y Standard UL489/CSA-C22.2/NOM-003 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489HACR Rated Temperature Rating 40 °C Type Low Voltage UNSPSC 39121601 UPC 11 80476613662 UPC 12 804766136627 Width 4.7000 in Width [Metric] 11.9380 cm Wire Size 3 AWG to 300 kcmil Cu Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 100 A Interrupt Rating 10 kA Trip Type Thermal Magnetic Voltage Rating 240 VAC
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
| Alternate Catalog Number | US2:QR23B100 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | QR23B100 |
| Connection Type | Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 7 in H x 4.5 in W x 2.53 in D |
| Enclosure Type | NEMA 1/3R |
| EU RoHS Indicator | C |
| Frame | QR |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 78.75 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 4.5000 lb |
| Gross Weight per Pack Metric | 2.04 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 4.2000 in |
| Height [Metric] | 10.6680 cm |
| Length | 7.3000 in |
| Length [Metric] | 18.5420 cm |
| Mounting Type | Flush |
| Number Of Poles | 3 |
| Returnable | Y |
| Standard | UL489/CSA-C22.2/NOM-003 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489HACR Rated |
| Temperature Rating | 40 °C |
| Type | Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 80476613662 |
| UPC 12 | 804766136627 |
| Width | 4.7000 in |
| Width [Metric] | 11.9380 cm |
| Wire Size | 3 AWG to 300 kcmil Cu |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 100 A |
| Interrupt Rating | 10 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
