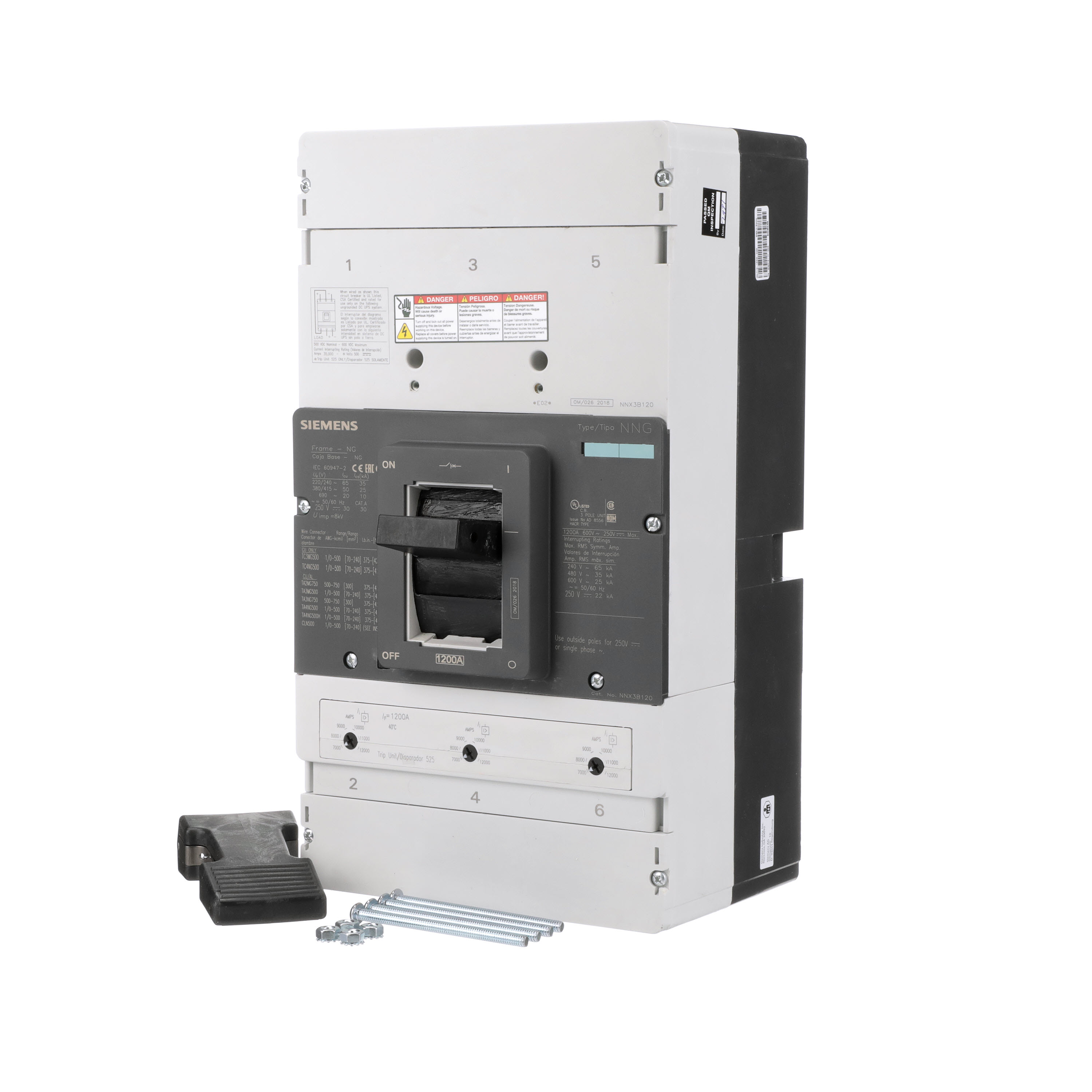

Siemens NNX3B120 VL Series Low Voltage Molded Case Circuit Breaker, 480 VAC, 1200 A, 35 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Siemens NNX3B120 VL Series Low Voltage Molded Case Circuit Breaker, 480 VAC, 1200 A, 35 kA Interrupt, 3 Poles
SKU572976
MFGR #NNX3B120
Your Cost: $40,062.80/ea
List: Siemens VL molded case circuit breakers utilize a compact and modular design which can be configured to suit a wide range of ratings from 30 A up to 1600 A. Designed for global requirements, most breakers include the world's major standards and markings such as UL, CSA, NOM, IEC, CE and CCC. At 480 VAC, VL circuit breakers feature N-Class (35kA), H-Class (65 kA) and L-Class (100 kA) interrupting ratings. They also feature both thermal magnetic and electronic trip units across the entire product line, assuring compatibility for virtually any application. VL trip units measure true RMS current. This type of measurement ensures the most accurate means of measuring currents in today's harmonic filled electrical distribution systems.
Siemens VL molded case circuit breakers utilize a compact and modular design which can be configured to suit a wide range of ratings from 30 A up to 1600 A. Designed for global requirements, most breakers include the world's major standards and markings such as UL, CSA, NOM, IEC, CE and CCC. At 480 VAC, VL circuit breakers feature N-Class (35kA), H-Class (65 kA) and L-Class (100 kA) interrupting ratings. They also feature both thermal magnetic and electronic trip units across the entire product line, assuring compatibility for virtually any application. VL trip units measure true RMS current. This type of measurement ensures the most accurate means of measuring currents in today's harmonic filled electrical distribution systems.
Alternate Catalog Number US2:NNX3B120 Application GLOBAL NON-INTERCHANGEABLE ARRA Compliant C Buy American Compliant C Catalog Number NNX3B120 Country of Origin MX Currency USD Dimensions 16 in H x 9 in W x 6.2 in D EU RoHS Indicator C Frame NG Frequency Rating 50/60 Hz Gross Volume Per Pack 2400.01 Gross Volume UOM in Gross Weight Per Pack 55.4900 lb Gross Weight per Pack Metric 25.17 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 10.0000 in Height [Metric] 25.4000 cm Length 20.0000 in Length [Metric] 50.8000 cm Material MOLDED CASE CIRCUIT BREAKER Mounting Type Bolt-On Number Of Poles 3 Operating Temperature 40 °C Phase 3 pH Returnable Y Series VL Series Standard UL Standards UL Listed Sub Brand VL Temperature Rating 40 °C Type Low Voltage UNSPSC 39121601 UPC 11 78364349826 UPC 12 783643498266 Width 12.0000 in Width [Metric] 30.4800 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 1200 A Interrupt Rating 35 kA Trip Type LI/Thermal Magnetic Voltage Rating 480 VAC GLOBAL NON-INTERCHANGEABLE The modularity of the VL allows for last minute adaptation, forgives changes in system design and reduces inventory Compact size reduced dimensions save panel space, which can reduce the overall system design requirements and therefore material costs VL breakers are designed for global use, allowing the user to serve virtually every market using one design and footprint, all VL breakers are HACR rated
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | US2:NNX3B120 |
| Application | GLOBAL NON-INTERCHANGEABLE |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | NNX3B120 |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 16 in H x 9 in W x 6.2 in D |
| EU RoHS Indicator | C |
| Frame | NG |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 2400.01 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 55.4900 lb |
| Gross Weight per Pack Metric | 25.17 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 10.0000 in |
| Height [Metric] | 25.4000 cm |
| Length | 20.0000 in |
| Length [Metric] | 50.8000 cm |
| Material | MOLDED CASE CIRCUIT BREAKER |
| Mounting Type | Bolt-On |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 pH |
| Returnable | Y |
| Series | VL Series |
| Standard | UL |
| Standards | UL Listed |
| Sub Brand | VL |
| Temperature Rating | 40 °C |
| Type | Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364349826 |
| UPC 12 | 783643498266 |
| Width | 12.0000 in |
| Width [Metric] | 30.4800 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 1200 A |
| Interrupt Rating | 35 kA |
| Trip Type | LI/Thermal Magnetic |
| Voltage Rating | 480 VAC |
| GLOBAL NON-INTERCHANGEABLE |
| The modularity of the VL allows for last minute adaptation, forgives changes in system design and reduces inventory |
| Compact size reduced dimensions save panel space, which can reduce the overall system design requirements and therefore material costs |
| VL breakers are designed for global use, allowing the user to serve virtually every market using one design and footprint, all VL breakers are HACR rated |
