Siemens

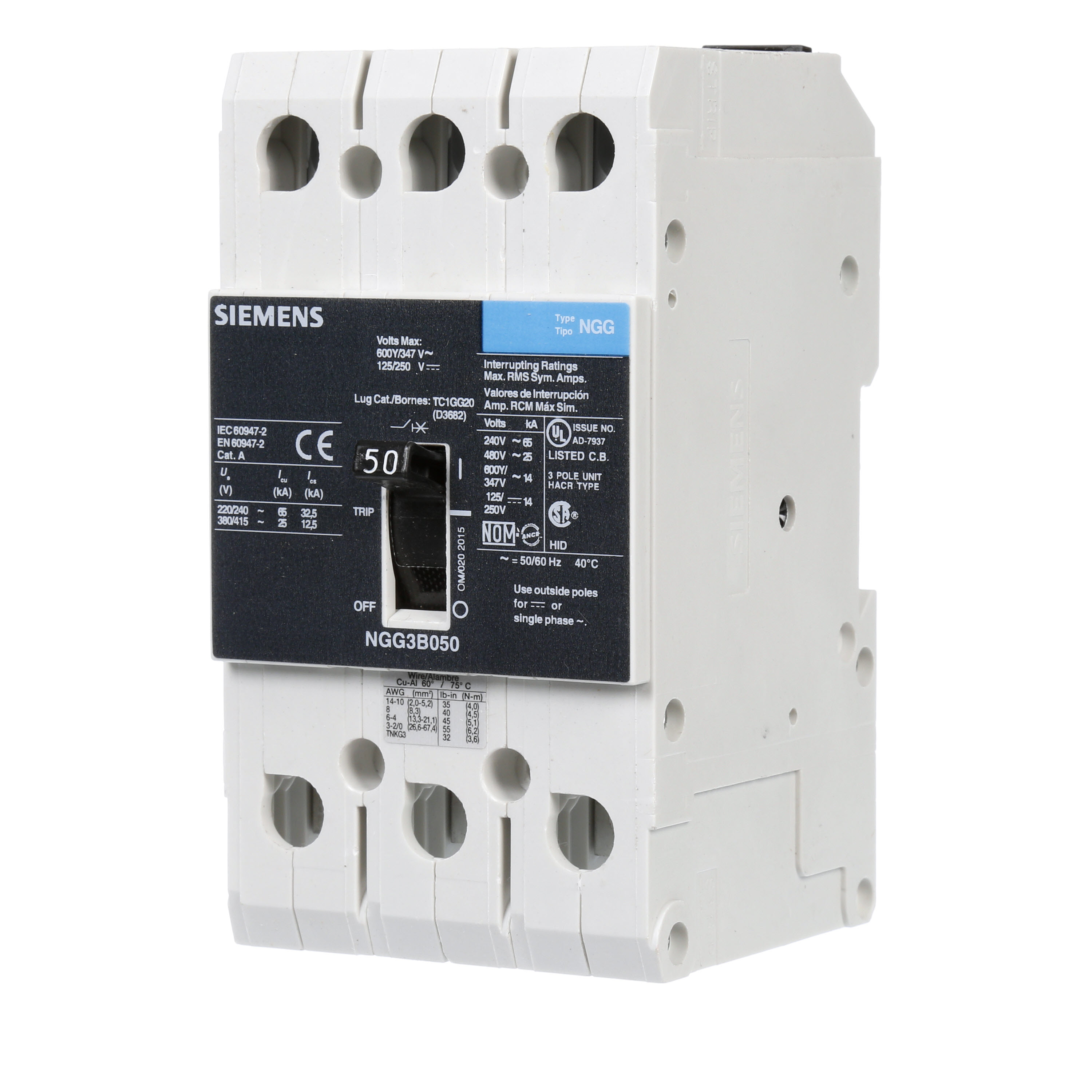

Siemens NGG3B050L Molded Case Circuit Breaker, 480 VAC, 50 A, 25 kA Interrupt, 3 Poles, Thermal Magnetic Trip

Custom_Product_Images_Illustration

Siemens

SKU347666

MFGR #NGG3B050L

Your Cost: $936.00/ea

List: ~~$3,120.00~~ /ea

SIEMENS NGG3B050L 3P50A480V 25KAIC MCCB

: Actuator Type
Handle
Alternate Catalog Number
US2:NGG3B050L
ARRA Compliant
C
Buy American Compliant
C
Catalog Number
NGG3B050L
Connection Type
Line/Load Lug
Country of Origin
MX
Currency
USD
Dimensions
7 in L x 5 in W x 4 in H
EU RoHS Indicator
C
Frame
125 A
Frequency Rating
50/60 Hz
Gross Volume Per Pack
140.00
Gross Volume UOM
in
Gross Weight Per Pack
2.8100 lb
Gross Weight per Pack Metric
1.27
Gross Weight UOM Metric
kg
Harmonization Tariff Schedule Code
8536200020
Height
4.0000 in
Height [Metric]
10.1600 cm
Length
7.0000 in
Length [Metric]
17.7800 cm
Mounting Type
DIN Rail
Number Of Poles
3
Phase
3 pH
Returnable
Y
Standard
UL/CSA/IEC/NOM
Standards
ARRA CompliantBuy American Act CompliantRoHS CompliantCE MarkedHACR Rated
Temperature Rating
40 °C
Type
Type NGG Low Voltage
UNSPSC
39121601
UPC 11
78364341385
UPC 12
783643413856
Width
5.0000 in
Width [Metric]
12.7000 cm
Wire Size
8 to 1/0 AWG, 4 to 2/0 AWG
Stock Status
NONSTOCK
Brand
Siemens
Manufacturer
Siemens
Amperage Rating
50 A
Interrupt Rating
25 kA
Trip Type
Thermal Magnetic
Voltage Rating
480 VAC
: Brochure
Catalog 1
Catalog
Computer~Aided [CAD|BIM] Model
Seller Home Page
Spec Sheet 1
Spec Sheet
Spec Sheet
Spec Sheet
User Manual
User Manual
: GENERAL APPLICATION

8 to 1/0 AWG, 4 to 2/0 AWG aluminum wire

14 kA at 600/347 VAC, 25 kA at 480 VAC, 65 kA at 240 VAC interrupt rating

Actuator Type	Handle
Alternate Catalog Number	US2:NGG3B050L
ARRA Compliant	C
Buy American Compliant	C
Catalog Number	NGG3B050L
Connection Type	Line/Load Lug
Country of Origin	MX
Currency	USD
Dimensions	7 in L x 5 in W x 4 in H
EU RoHS Indicator	C
Frame	125 A
Frequency Rating	50/60 Hz
Gross Volume Per Pack	140.00
Gross Volume UOM	in
Gross Weight Per Pack	2.8100 lb
Gross Weight per Pack Metric	1.27
Gross Weight UOM Metric	kg
Harmonization Tariff Schedule Code	8536200020
Height	4.0000 in
Height [Metric]	10.1600 cm
Length	7.0000 in
Length [Metric]	17.7800 cm
Mounting Type	DIN Rail
Number Of Poles	3
Phase	3 pH
Returnable	Y
Standard	UL/CSA/IEC/NOM
Standards	ARRA CompliantBuy American Act CompliantRoHS CompliantCE MarkedHACR Rated
Temperature Rating	40 °C
Type	Type NGG Low Voltage
UNSPSC	39121601
UPC 11	78364341385
UPC 12	783643413856
Width	5.0000 in
Width [Metric]	12.7000 cm
Wire Size	8 to 1/0 AWG, 4 to 2/0 AWG
Stock Status	NONSTOCK
Brand	Siemens
Manufacturer	Siemens
Amperage Rating	50 A
Interrupt Rating	25 kA
Trip Type	Thermal Magnetic
Voltage Rating	480 VAC
