Siemens

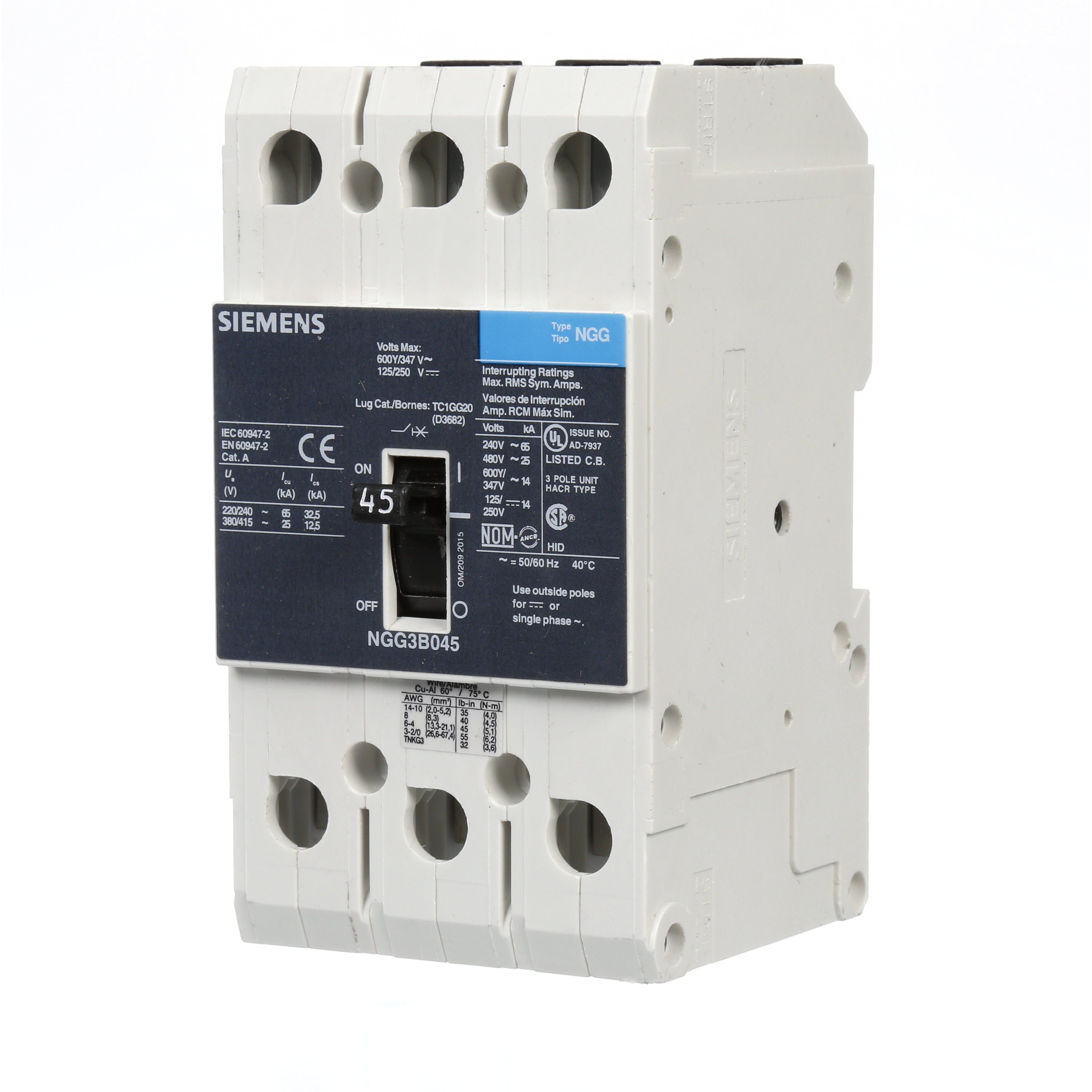

Siemens NGG3B045L Molded Case Circuit Breaker, 480 VAC, 45 A, 25 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Siemens
Siemens NGG3B045L Molded Case Circuit Breaker, 480 VAC, 45 A, 25 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU341362
MFGR #NGG3B045L
Your Cost: $936.00/ea
List: Siemens Molded Case Circuit Breaker, 480 VAC, 45 A, 50/60 Hz, 25 kA Interrupt, GG/125 A Frame, Thermal Magnetic Trip, 3 Poles, 3-Phase, Handle Actuator, Line/Load Lug, 8 to 1/0/4 to 2/0 AWG Wire, DIN Rail Mount, 40 deg C, 6 in L x 3 in W x 4 in H
Siemens Molded Case Circuit Breaker, 480 VAC, 45 A, 50/60 Hz, 25 kA Interrupt, GG/125 A Frame, Thermal Magnetic Trip, 3 Poles, 3-Phase, Handle Actuator, Line/Load Lug, 8 to 1/0/4 to 2/0 AWG Wire, DIN Rail Mount, 40 deg C, 6 in L x 3 in W x 4 in H
Actuator Type Handle Alternate Catalog Number US2:NGG3B045L ARRA Compliant C Buy American Compliant C Catalog Number NGG3B045L Connection Type Line/Load Lug Country of Origin MX Currency USD Dimensions 6 in L x 3 in W x 4 in H EU RoHS Indicator C Frame 125 A Frequency Rating 50/60 Hz Gross Volume Per Pack 282.87 Gross Volume UOM in Gross Weight Per Pack 2.8100 lb Gross Weight per Pack Metric 1.27 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 6.9500 in Height [Metric] 17.6530 cm Length 5.5000 in Length [Metric] 13.9700 cm Mounting Type DIN Rail Number Of Poles 3 Phase 3 pH Returnable Y Standard UL/CSA/IEC/NOM Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCE MarkedHACR Rated Temperature Rating 40 °C Type Type NGG Low Voltage UNSPSC 39121601 UPC 11 78364341384 UPC 12 783643413849 Width 7.4000 in Width [Metric] 18.7960 cm Wire Size 8 to 1/0 AWG, 4 to 2/0 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 45 A Interrupt Rating 25 kA Trip Type Thermal Magnetic Voltage Rating 480 VAC GENERAL APPLICATION 8 to 1/0 AWG, 4 to 2/0 AWG aluminum wire 14 kA at 600/347 VAC, 25 kA at 480 VAC, 65 kA at 240 VAC interrupt rating General purpose
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator Type | Handle |
| Alternate Catalog Number | US2:NGG3B045L |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | NGG3B045L |
| Connection Type | Line/Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6 in L x 3 in W x 4 in H |
| EU RoHS Indicator | C |
| Frame | 125 A |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 282.87 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 2.8100 lb |
| Gross Weight per Pack Metric | 1.27 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 6.9500 in |
| Height [Metric] | 17.6530 cm |
| Length | 5.5000 in |
| Length [Metric] | 13.9700 cm |
| Mounting Type | DIN Rail |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Returnable | Y |
| Standard | UL/CSA/IEC/NOM |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCE MarkedHACR Rated |
| Temperature Rating | 40 °C |
| Type | Type NGG Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364341384 |
| UPC 12 | 783643413849 |
| Width | 7.4000 in |
| Width [Metric] | 18.7960 cm |
| Wire Size | 8 to 1/0 AWG, 4 to 2/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 45 A |
| Interrupt Rating | 25 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 480 VAC |
| GENERAL APPLICATION |
| 8 to 1/0 AWG, 4 to 2/0 AWG aluminum wire |
| 14 kA at 600/347 VAC, 25 kA at 480 VAC, 65 kA at 240 VAC interrupt rating |
| General purpose |
