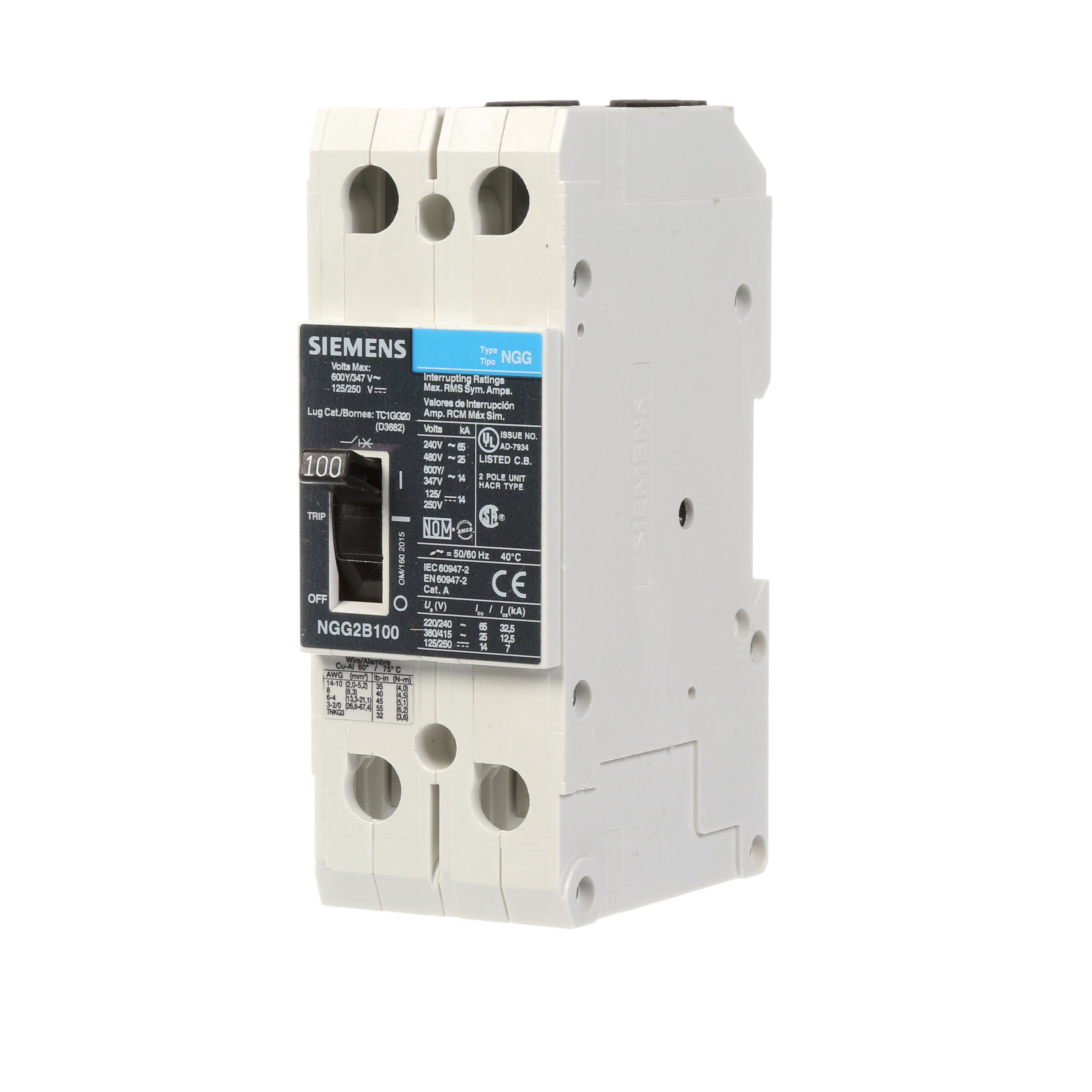

Siemens NGG2B100L Molded Case Circuit Breaker, 480 VAC, 100 A, 25 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Molded Case Circuit Breakers
646370
MFG #: NGG2B100L
Siemens
747.90000
/ ea
Siemens Molded Case Circuit Breaker, 480 VAC, 100 A, 50/60 Hz, 25 kA Interrupt, GG/125 A Frame, Thermal Magnetic Trip, 2 Poles, 1-Phase, Toggle Actuator, Line/Load Lug, 8 to 1/0/4 to 2/0 AWG Wire, DIN Rail Mount, 40 deg C, 6 in L x 3 in W x 4 in H
- Brochure URL - Siemens-Molded-Case-Circuit-Breakers-GenApp-Catalog-NGG-Product-Guide.pdf(Brochure URL)
- Catalog 1 URL - Siemens_HHED63B015A_Catalog.pdf(Catalog 1 URL)
- Catalog URL - Siemens_HHED63B015A_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - SIE_DW_NGG-1-Pole-2-Pole-3-Pole.dwg(Computer~Aided [CAD|BIM] Model URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Spec Sheet 1 URL - ID-SPE-v2-SF17-07-039.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=US2:NGG2B100L&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=US2:NGG2B100L&language=en(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- Features
| GENERAL APPLICATION |
| 8 to 1/0 AWG, 4 to 2/0 AWG aluminum |
| 14 kA at 600/347 VAC, 25 kA at 480 VAC, 65 kA at 240 VAC, 14 kA at 250 VDC |
| General purpose |
