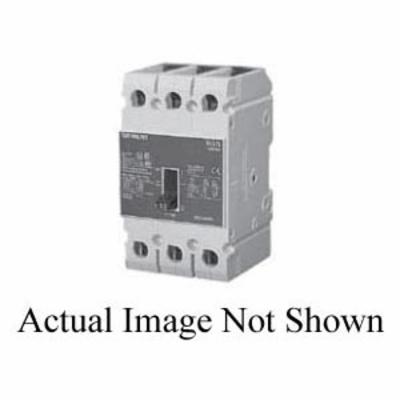

Siemens NGG2B090L Low Voltage Molded Case Circuit Breaker With Lugs, 600Y/347/480 VAC, 90 A, 14 to 25 kA Interrupt
Siemens NGG2B090L Low Voltage Molded Case Circuit Breaker With Lugs, 600Y/347/480 VAC, 90 A, 14 to 25 kA Interrupt
SKU813751
MFGR #NGG2B090L
Your Cost: $888.90/ea
List: Siemens Panelboard mounting circuit breakers are designed for quick installation in Siemens panelboards and switchboards. The interlocking features allow for one screw installation which mounts the breaker line end bus tab to the panelboard bus bar. Ideally suited for use in lighting panels, these breakers offer HACR ratings as well as Switching Duty ratings for 15 to 20 A and HID ratings from 15 to 50 A.
Siemens Panelboard mounting circuit breakers are designed for quick installation in Siemens panelboards and switchboards. The interlocking features allow for one screw installation which mounts the breaker line end bus tab to the panelboard bus bar. Ideally suited for use in lighting panels, these breakers offer HACR ratings as well as Switching Duty ratings for 15 to 20 A and HID ratings from 15 to 50 A.
Alternate Catalog Number US2:NGG2B090L ARRA Compliant C Buy American Compliant C Catalog Number NGG2B090L Connection Type Feed-Through Country of Origin MX Currency USD Dimensions 5.4 in H x 2 in W x 2.8 in D EU RoHS Indicator C Frame NGG Frequency Rating 50/60 Hz Gross Volume Per Pack 72.00 Gross Volume UOM in Gross Weight Per Pack 1.9560 lb Gross Weight per Pack Metric 0.89 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 4.0000 in Height [Metric] 10.1600 cm Length 6.0000 in Length [Metric] 15.2400 cm Number Of Poles 2 Phase 1 pH Returnable N Standard UL/CSA/IEC/NOM Standards UL Listed Temperature Rating 40 °C Type Low Voltage UNSPSC 39121601 UPC 11 78364341374 UPC 12 783643413740 Width 3.0000 in Width [Metric] 7.6200 cm Wire Size 8 to 1/0/8 to 2/0 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 90 A Interrupt Rating 14 to 25 kA Trip Type LI/Thermal Magnetic Voltage Rating 600Y/347/480 VAC GENERAL APPLICATION NGG frame with standard breaking capacity
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | US2:NGG2B090L |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | NGG2B090L |
| Connection Type | Feed-Through |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 5.4 in H x 2 in W x 2.8 in D |
| EU RoHS Indicator | C |
| Frame | NGG |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 72.00 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.9560 lb |
| Gross Weight per Pack Metric | 0.89 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 4.0000 in |
| Height [Metric] | 10.1600 cm |
| Length | 6.0000 in |
| Length [Metric] | 15.2400 cm |
| Number Of Poles | 2 |
| Phase | 1 pH |
| Returnable | N |
| Standard | UL/CSA/IEC/NOM |
| Standards | UL Listed |
| Temperature Rating | 40 °C |
| Type | Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364341374 |
| UPC 12 | 783643413740 |
| Width | 3.0000 in |
| Width [Metric] | 7.6200 cm |
| Wire Size | 8 to 1/0/8 to 2/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 90 A |
| Interrupt Rating | 14 to 25 kA |
| Trip Type | LI/Thermal Magnetic |
| Voltage Rating | 600Y/347/480 VAC |
| GENERAL APPLICATION |
| NGG frame with standard breaking capacity |
