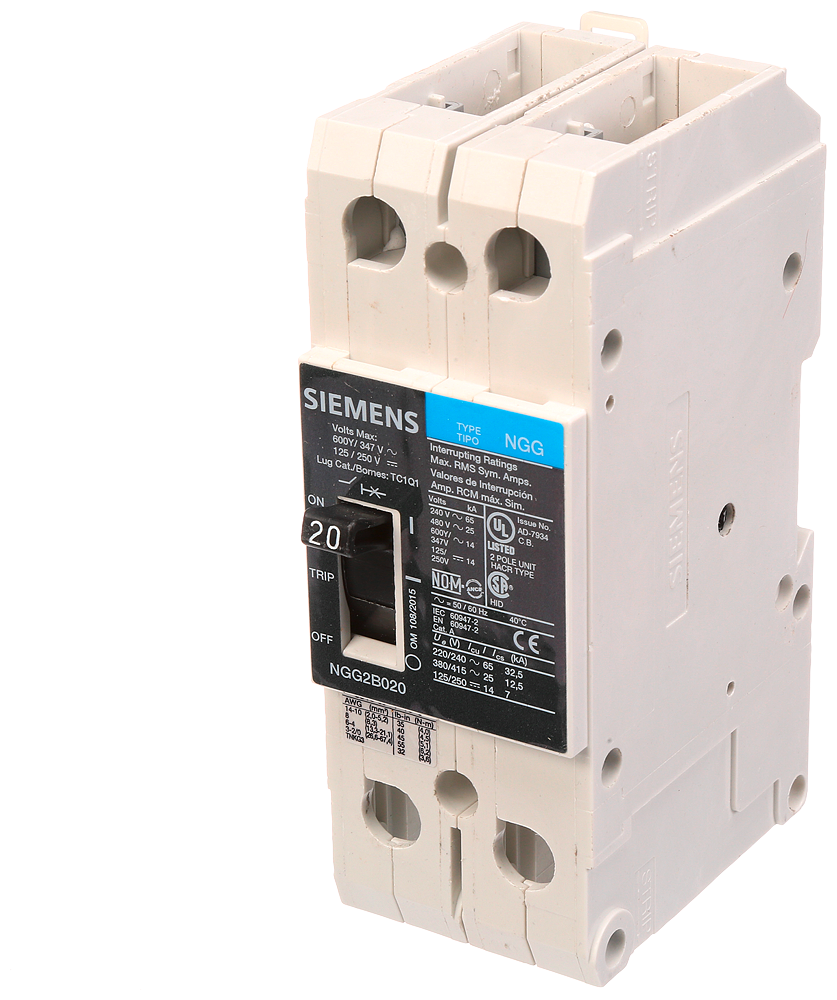

Siemens NGG2B020 Low Voltage Molded Case Circuit Breaker, 600Y/347/480 VAC, 20 A, 14 to 25 kA Interrupt, 2 Poles
Custom_Product_Images_Illustration
Siemens NGG2B020 Low Voltage Molded Case Circuit Breaker, 600Y/347/480 VAC, 20 A, 14 to 25 kA Interrupt, 2 Poles
SKU646899
MFGR #NGG2B020
Your Cost: $619.20/ea
List: Siemens Panelboard mounting circuit breakers are designed for quick installation in Siemens panelboards and switchboards. The interlocking features allow for one screw installation which mounts the breaker line end bus tab to the panelboard bus bar. Ideally suited for use in lighting panels, these breakers offer HACR ratings as well as Switching Duty ratings for 15 to 20 A and HID ratings from 15 to 50 A.
Siemens Panelboard mounting circuit breakers are designed for quick installation in Siemens panelboards and switchboards. The interlocking features allow for one screw installation which mounts the breaker line end bus tab to the panelboard bus bar. Ideally suited for use in lighting panels, these breakers offer HACR ratings as well as Switching Duty ratings for 15 to 20 A and HID ratings from 15 to 50 A.
Alternate Catalog Number US2:NGG2B020 ARRA Compliant C Buy American Compliant C Catalog Number NGG2B020 Connection Type Bolt-On Country of Origin MX Currency USD Dimensions 5.4 in H x 2 in W x 2.8 in D EU RoHS Indicator C Frame NGG Frequency Rating 50/60 Hz Gross Volume Per Pack 0.87 Gross Volume UOM in Gross Weight Per Pack 1.9400 lb Gross Weight per Pack Metric 0.88 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 5.2000 in Height [Metric] 13.2080 cm Length 6.4000 in Length [Metric] 16.2560 cm Number Of Poles 2 Phase 1 pH Returnable N Standard UL/CSA/IEC/NOM Temperature Rating 40 °C Type Low Voltage UNSPSC 39121601 UPC 11 78364336318 UPC 12 783643363182 Width 4.8000 in Width [Metric] 12.1920 cm Wire Size 14 to 6/12 to 6 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 20 A Interrupt Rating 14 to 25 kA Trip Type LI/Thermal Magnetic Voltage Rating 600Y/347/480 VAC GENERAL APPLICATION NGG frame with standard breaking capacity
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | US2:NGG2B020 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | NGG2B020 |
| Connection Type | Bolt-On |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 5.4 in H x 2 in W x 2.8 in D |
| EU RoHS Indicator | C |
| Frame | NGG |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 0.87 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.9400 lb |
| Gross Weight per Pack Metric | 0.88 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 5.2000 in |
| Height [Metric] | 13.2080 cm |
| Length | 6.4000 in |
| Length [Metric] | 16.2560 cm |
| Number Of Poles | 2 |
| Phase | 1 pH |
| Returnable | N |
| Standard | UL/CSA/IEC/NOM |
| Temperature Rating | 40 °C |
| Type | Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364336318 |
| UPC 12 | 783643363182 |
| Width | 4.8000 in |
| Width [Metric] | 12.1920 cm |
| Wire Size | 14 to 6/12 to 6 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 20 A |
| Interrupt Rating | 14 to 25 kA |
| Trip Type | LI/Thermal Magnetic |
| Voltage Rating | 600Y/347/480 VAC |
| GENERAL APPLICATION |
| NGG frame with standard breaking capacity |
