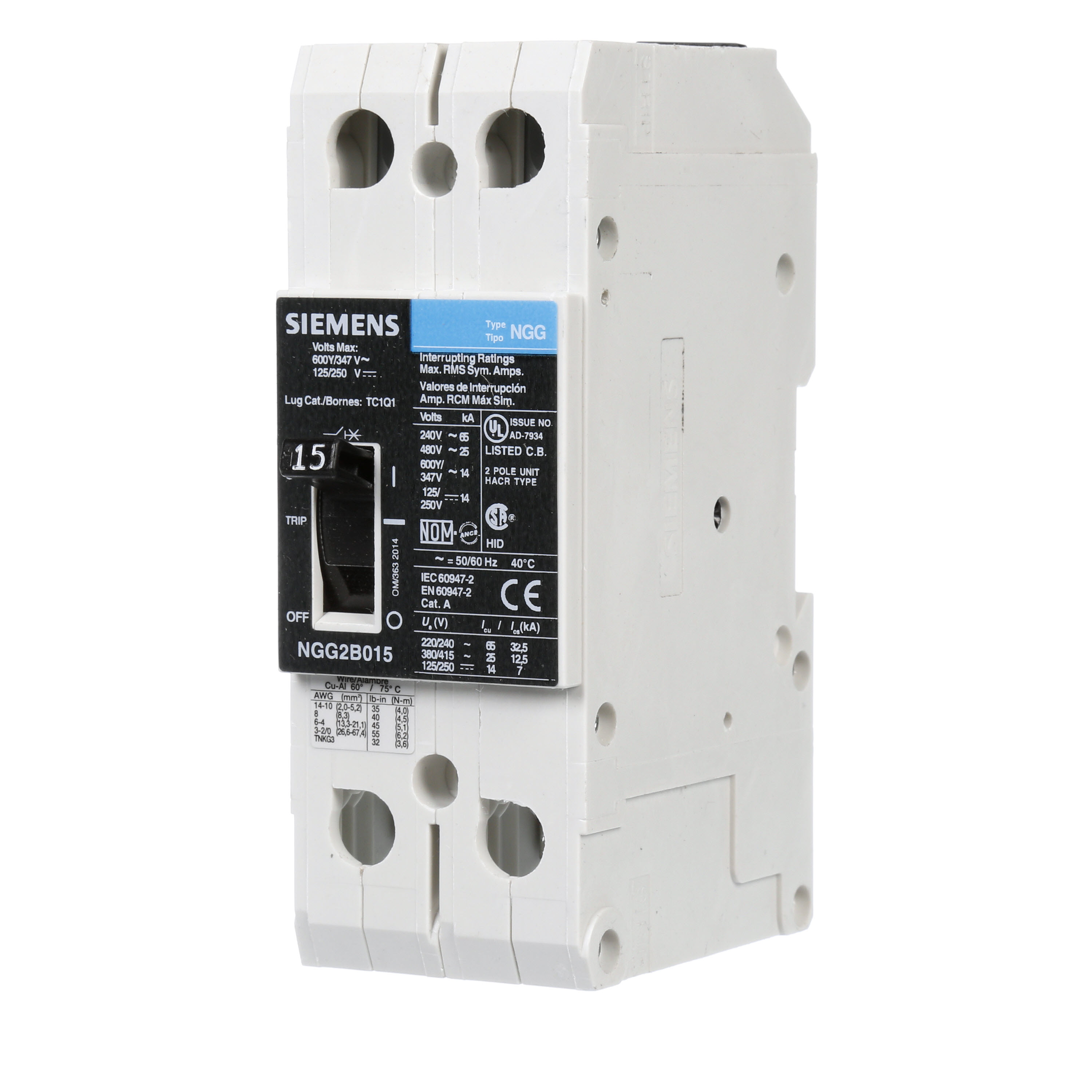

Siemens NGG2B015L Molded Case Circuit Breaker, 480 VAC, 15 A, 25 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Molded Case Circuit Breakers
375466
MFG #: NGG2B015L
Siemens
669.00000
/ ea
Siemens Molded Case Circuit Breaker, 480 VAC, 15 A, 50/60 Hz, 25 kA Interrupt, GG/125 A Frame, Thermal Magnetic Trip, 2 Poles, 1-Phase, Toggle Actuator, Line/Load Lug, 14 to 6/12 to 6 AWG Wire, DIN Rail Mount, 40 deg C, 7 in L x 5 in W x 4 in H
- Brochure URL - Siemens-Molded-Case-Circuit-Breakers-GenApp-Catalog-NGG-Product-Guide.pdf(Brochure URL)
- Catalog URL - Siemens_HHED63B015A_Catalog.pdf(Catalog URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=US2:NGG2B015L&language=en(Spec Sheet URL)
- Spec Sheet 1 URL - ID-SPE-v2-SF17-07-039.pdf(Spec Sheet 1 URL)
- Computer~Aided [CAD|BIM] Model URL - SIE_DW_NGG-1-Pole-2-Pole-3-Pole.dwg(Computer~Aided [CAD|BIM] Model URL)
- Spec Sheet URL - SF17-07-039.pdf(Spec Sheet URL)
- User Manual URL - SIE_IS_MoldedCaseCircuitBreak_806933.pdf(User Manual URL)
- User Manual URL - man(User Manual URL)
- Features
| GENERAL APPLICATION |
| 14 to 6 AWG copper, 12 to 6 AWG aluminum wire |
| 14 kA at 600/347 VAC, 25 kA at 480 VAC, 65 kA at 240 VAC, 14 kA at 250 VDC interrupt rating |
