Steiner serves territories in Northern Illinois, Northwest Indiana and Southern Wisconsin. Please for assistance if outside our sales territory.
Siemens

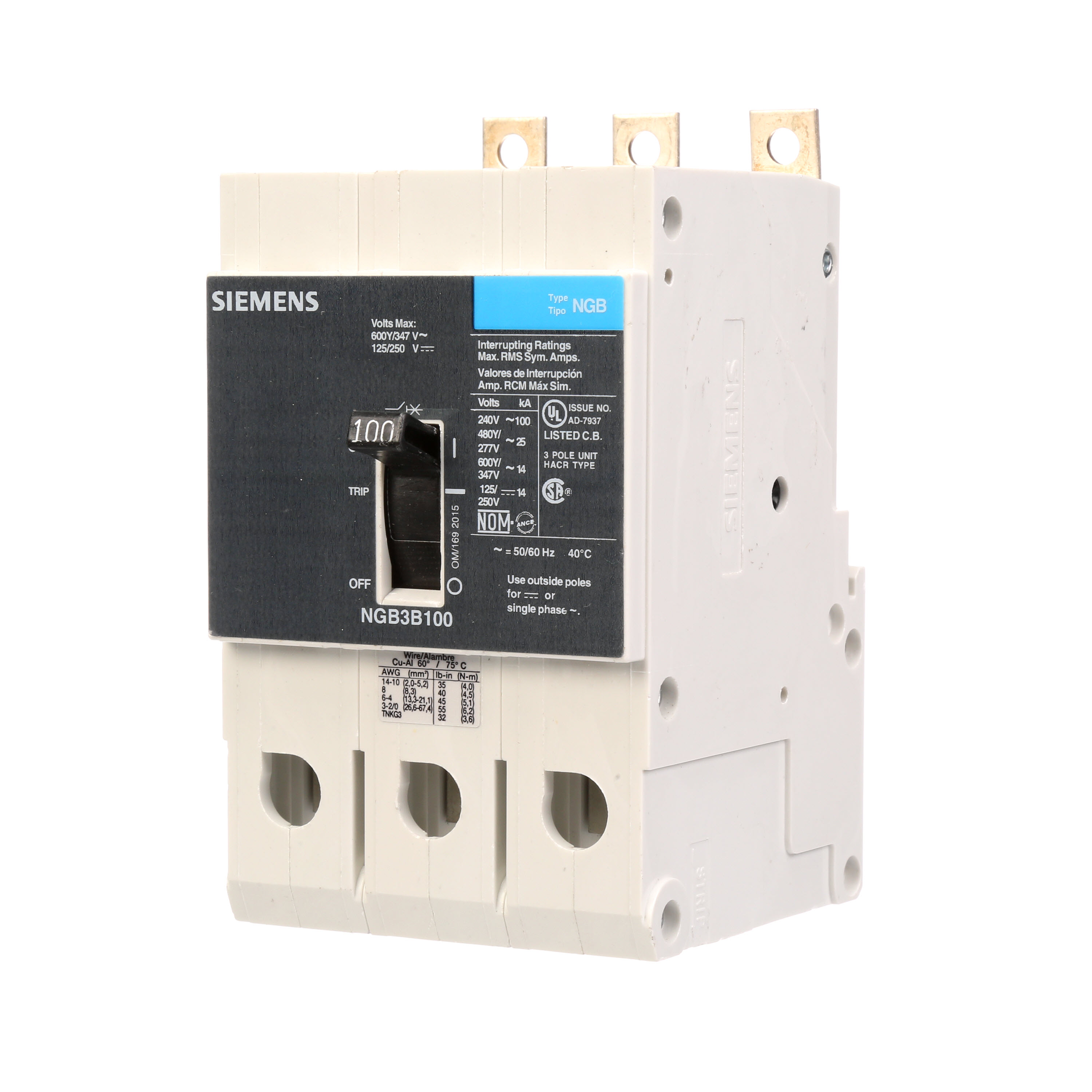

Siemens NGB3B100V Low Voltage Molded Case Circuit Breaker, 600Y/347/480Y/277 VAC, 100 A, 14 to 25 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Siemens
Siemens NGB3B100V Low Voltage Molded Case Circuit Breaker, 600Y/347/480Y/277 VAC, 100 A, 14 to 25 kA Interrupt, 3 Poles
SKU569237
MFGR #NGB3B100V
Your Cost: $1,936.26/ea
List: Siemens Panelboard mounting circuit breakers are designed for quick installation in Siemens panelboards and switchboards. The interlocking features allow for one screw installation which mounts the breaker line end bus tab to the panelboard bus bar. Ideally suited for use in lighting panels, these breakers offer HACR ratings as well as Switching Duty ratings for 15 to 20 A and HID ratings from 15 to 50 A.
Siemens Panelboard mounting circuit breakers are designed for quick installation in Siemens panelboards and switchboards. The interlocking features allow for one screw installation which mounts the breaker line end bus tab to the panelboard bus bar. Ideally suited for use in lighting panels, these breakers offer HACR ratings as well as Switching Duty ratings for 15 to 20 A and HID ratings from 15 to 50 A.
Alternate Catalog Number US2:NGB3B100V ARRA Compliant C Buy American Compliant C Catalog Number NGB3B100V Connection Type Load Country of Origin MX Currency USD Dimensions 5.4 in H x 3 in W x 2.8 in D EU RoHS Indicator C Frame NGB Frequency Rating 50/60 Hz Gross Volume Per Pack 44.10 Gross Volume UOM in Gross Weight Per Pack 3.5000 lb Gross Weight per Pack Metric 1.59 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 3.0000 in Height [Metric] 7.6200 cm Length 4.9000 in Length [Metric] 12.4460 cm Mounting Type Panel Number Of Poles 3 Phase 3 pH Returnable Y Standard UL/CSA/IEC/NOM Standards UL Listed Temperature Rating 50 °C Type Low Voltage UNSPSC 39121601 UPC 11 78364355544 UPC 12 783643555440 Width 3.0000 in Width [Metric] 7.6200 cm Wire Size 8 to 1/0/8 to 2/0 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 100 A Interrupt Rating 14 to 25 kA Trip Type LI/Thermal Magnetic Voltage Rating 600Y/347/480Y/277 VAC PANELBOARD MOUNT NGB frame with standard breaking capacity
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | US2:NGB3B100V |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | NGB3B100V |
| Connection Type | Load |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 5.4 in H x 3 in W x 2.8 in D |
| EU RoHS Indicator | C |
| Frame | NGB |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 44.10 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 3.5000 lb |
| Gross Weight per Pack Metric | 1.59 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 3.0000 in |
| Height [Metric] | 7.6200 cm |
| Length | 4.9000 in |
| Length [Metric] | 12.4460 cm |
| Mounting Type | Panel |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Returnable | Y |
| Standard | UL/CSA/IEC/NOM |
| Standards | UL Listed |
| Temperature Rating | 50 °C |
| Type | Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364355544 |
| UPC 12 | 783643555440 |
| Width | 3.0000 in |
| Width [Metric] | 7.6200 cm |
| Wire Size | 8 to 1/0/8 to 2/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 100 A |
| Interrupt Rating | 14 to 25 kA |
| Trip Type | LI/Thermal Magnetic |
| Voltage Rating | 600Y/347/480Y/277 VAC |
| PANELBOARD MOUNT |
| NGB frame with standard breaking capacity |
