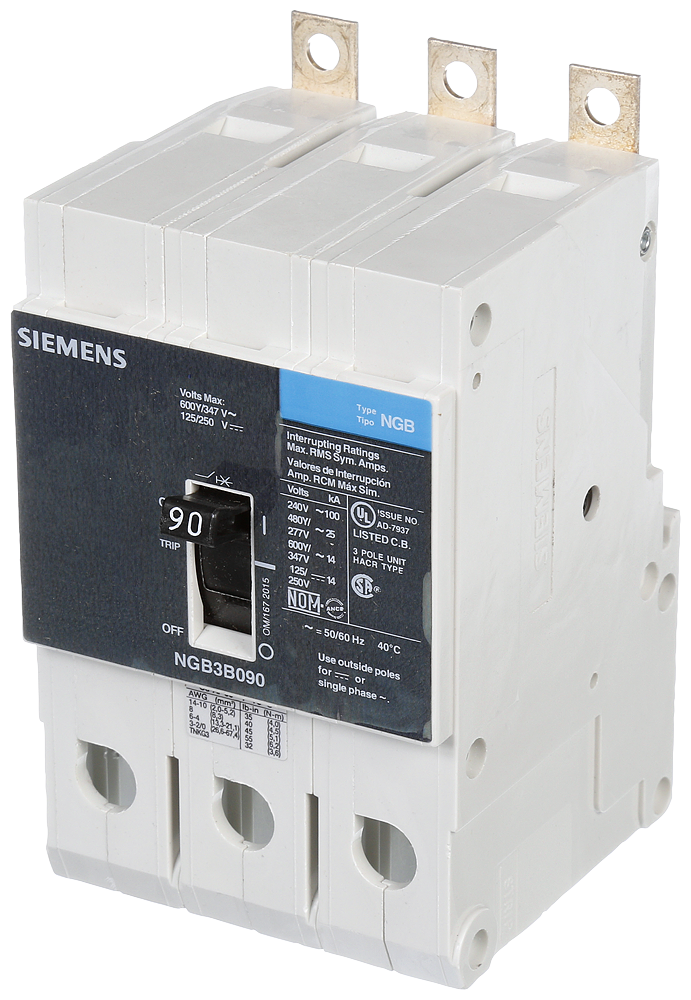

Siemens NGB3B090B Molded Case Circuit Breaker, 347/600 VAC, 90 A, 14 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Siemens NGB3B090B Molded Case Circuit Breaker, 347/600 VAC, 90 A, 14 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU813029
MFGR #NGB3B090B
Your Cost: $1,936.26/ea
List: Siemens Molded Case Circuit Breaker, 347/600 VAC, 90 A, 50/60 Hz, 14 kA Interrupt, GB Frame, Thermal Magnetic Trip, 3 Poles, 3-Phase, Load Lug, 4 to 2/0/6 to 1/0 AWG Wire, Panel Mount, 3 in W x 3.3 in D x 4.5 in H
Siemens Molded Case Circuit Breaker, 347/600 VAC, 90 A, 50/60 Hz, 14 kA Interrupt, GB Frame, Thermal Magnetic Trip, 3 Poles, 3-Phase, Load Lug, 4 to 2/0/6 to 1/0 AWG Wire, Panel Mount, 3 in W x 3.3 in D x 4.5 in H
Alternate Catalog Number US2:NGB3B090B ARRA Compliant C Buy American Compliant C Catalog Number NGB3B090B Connection Type Load Lug Country of Origin MX Currency USD Dimensions 5.4 in H x 3 in W x 2.8 in D EU RoHS Indicator C Frame NGB Frequency Rating 50/60 Hz Gross Volume Per Pack 551.43 Gross Volume UOM in Gross Weight Per Pack 2.6500 lb Gross Weight per Pack Metric 1.20 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 4.7000 in Height [Metric] 11.9380 cm Length 7.7000 in Length [Metric] 19.5580 cm Mounting Type Panel Number Of Poles 3 Phase 3 pH Returnable Y Standard UL/CSA/IEC/NOM Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedHACR RatedIEC 60 947-2 RatedUL 489 Type Type NGB Low Voltage UNSPSC 39121601 UPC 11 78364341436 UPC 12 783643414365 Width 6.5000 in Width [Metric] 16.5100 cm Wire Size 4 to 2/0 AWG, 6 to 1/0 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 90 A Interrupt Rating 14 kA Trip Type Thermal Magnetic Voltage Rating 600Y/347 VAC PANELBOARD MOUNT/BULK PACK 1/0 to 6 AWG copper, 2/0 to 4 AWG aluminum wire range 14 kA at 600Y/347 VAC, 10 kA at 240 VAC interrupt rating Bulk pack
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | US2:NGB3B090B |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | NGB3B090B |
| Connection Type | Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 5.4 in H x 3 in W x 2.8 in D |
| EU RoHS Indicator | C |
| Frame | NGB |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 551.43 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 2.6500 lb |
| Gross Weight per Pack Metric | 1.20 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 4.7000 in |
| Height [Metric] | 11.9380 cm |
| Length | 7.7000 in |
| Length [Metric] | 19.5580 cm |
| Mounting Type | Panel |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Returnable | Y |
| Standard | UL/CSA/IEC/NOM |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedHACR RatedIEC 60 947-2 RatedUL 489 |
| Type | Type NGB Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364341436 |
| UPC 12 | 783643414365 |
| Width | 6.5000 in |
| Width [Metric] | 16.5100 cm |
| Wire Size | 4 to 2/0 AWG, 6 to 1/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 90 A |
| Interrupt Rating | 14 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600Y/347 VAC |
| PANELBOARD MOUNT/BULK PACK |
| 1/0 to 6 AWG copper, 2/0 to 4 AWG aluminum wire range |
| 14 kA at 600Y/347 VAC, 10 kA at 240 VAC interrupt rating |
| Bulk pack |
