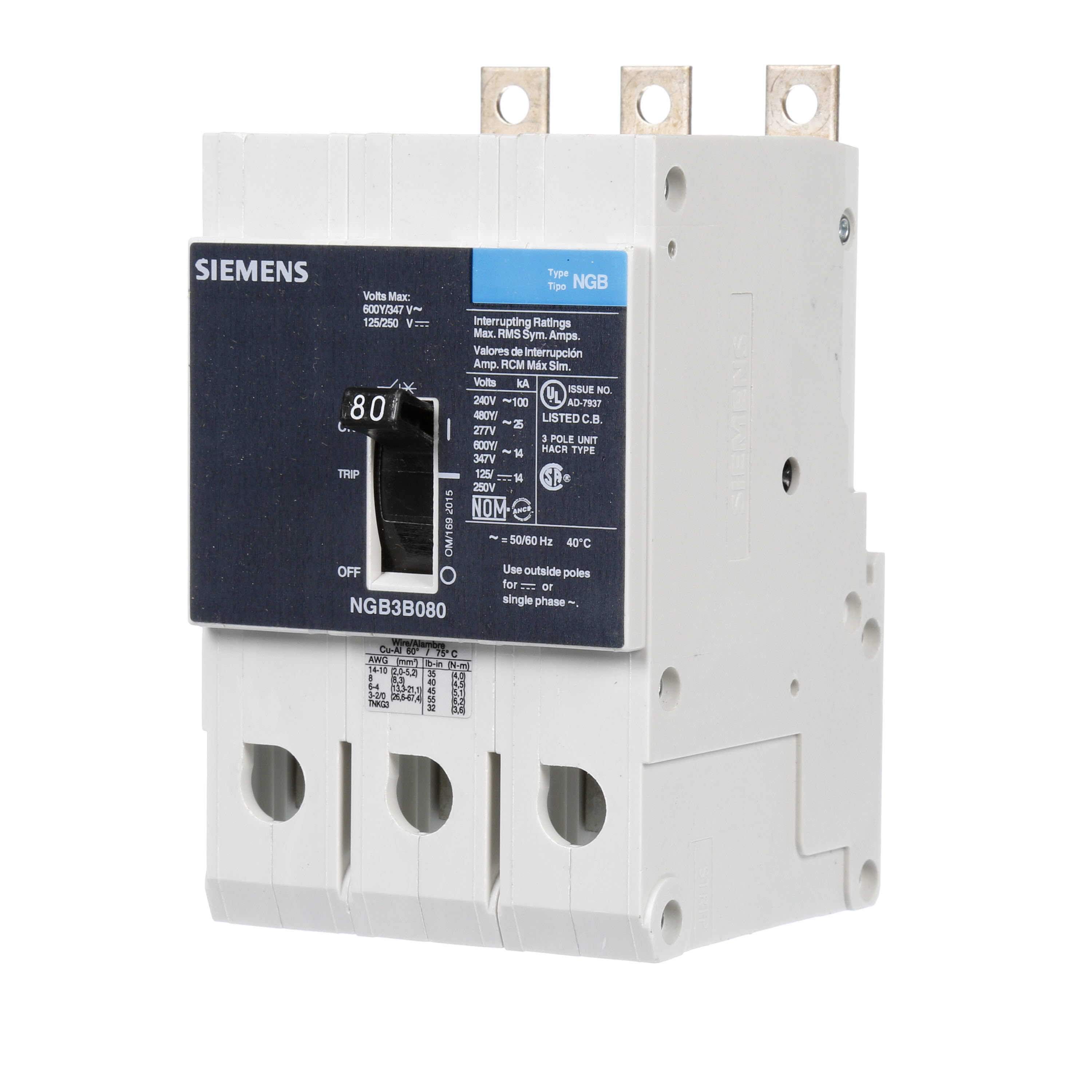

Siemens NGB3B080B Molded Case Circuit Breaker, 347/600 VAC, 80 A, 14 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Siemens NGB3B080B Molded Case Circuit Breaker, 347/600 VAC, 80 A, 14 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU865895
MFGR #NGB3B080B
Your Cost: $2,072.10/ea
List: Siemens Molded Case Circuit Breaker, 347/600 VAC, 80 A, 50/60 Hz, 14 kA Interrupt, GB Frame, Thermal Magnetic Trip, 3 Poles, 3-Phase, Load Lug, 4 to 2/0/6 to 1/0 AWG Wire, Panel Mount, 7 in L x 4.1 in W x 4.7 in H
Siemens Molded Case Circuit Breaker, 347/600 VAC, 80 A, 50/60 Hz, 14 kA Interrupt, GB Frame, Thermal Magnetic Trip, 3 Poles, 3-Phase, Load Lug, 4 to 2/0/6 to 1/0 AWG Wire, Panel Mount, 7 in L x 4.1 in W x 4.7 in H
Alternate Catalog Number US2:NGB3B080B ARRA Compliant C Buy American Compliant C Catalog Number NGB3B080B Connection Type Load Lug Country of Origin MX Currency USD Dimensions 7 in L x 4.1 in W x 4.7 in H EU RoHS Indicator C Frame NGB Frequency Rating 50/60 Hz Gross Volume Per Pack 139.64 Gross Volume UOM in Gross Weight Per Pack 2.6000 lb Gross Weight per Pack Metric 1.18 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 4.6500 in Height [Metric] 11.8110 cm Length 7.1500 in Length [Metric] 18.1610 cm Mounting Type Panel Number Of Poles 3 Phase 3 pH Returnable Y Standard UL/CSA/IEC/NOM Standards ARRA CompliantBuy American Act CompliantRoHS CompliantHACR RatedUL Listed Type Type NGB Low Voltage UNSPSC 39121601 UPC 11 78364341435 UPC 12 783643414358 Width 4.2000 in Width [Metric] 10.6680 cm Wire Size 4 to 2/0 AWG, 6 to 1/0 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 80 A Interrupt Rating 14 kA Trip Type Thermal Magnetic Voltage Rating 600Y/347 VAC PANELBOARD MOUNT/BULK PACK 1/0 to 6 AWG copper, 2/0 to 4 AWG aluminum wire range 14 kA at 600Y/347 VAC, 10 kA at 240 VAC interrupt rating Bulk pack
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | US2:NGB3B080B |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | NGB3B080B |
| Connection Type | Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 7 in L x 4.1 in W x 4.7 in H |
| EU RoHS Indicator | C |
| Frame | NGB |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 139.64 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 2.6000 lb |
| Gross Weight per Pack Metric | 1.18 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 4.6500 in |
| Height [Metric] | 11.8110 cm |
| Length | 7.1500 in |
| Length [Metric] | 18.1610 cm |
| Mounting Type | Panel |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Returnable | Y |
| Standard | UL/CSA/IEC/NOM |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantHACR RatedUL Listed |
| Type | Type NGB Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364341435 |
| UPC 12 | 783643414358 |
| Width | 4.2000 in |
| Width [Metric] | 10.6680 cm |
| Wire Size | 4 to 2/0 AWG, 6 to 1/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 80 A |
| Interrupt Rating | 14 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600Y/347 VAC |
| PANELBOARD MOUNT/BULK PACK |
| 1/0 to 6 AWG copper, 2/0 to 4 AWG aluminum wire range |
| 14 kA at 600Y/347 VAC, 10 kA at 240 VAC interrupt rating |
| Bulk pack |
