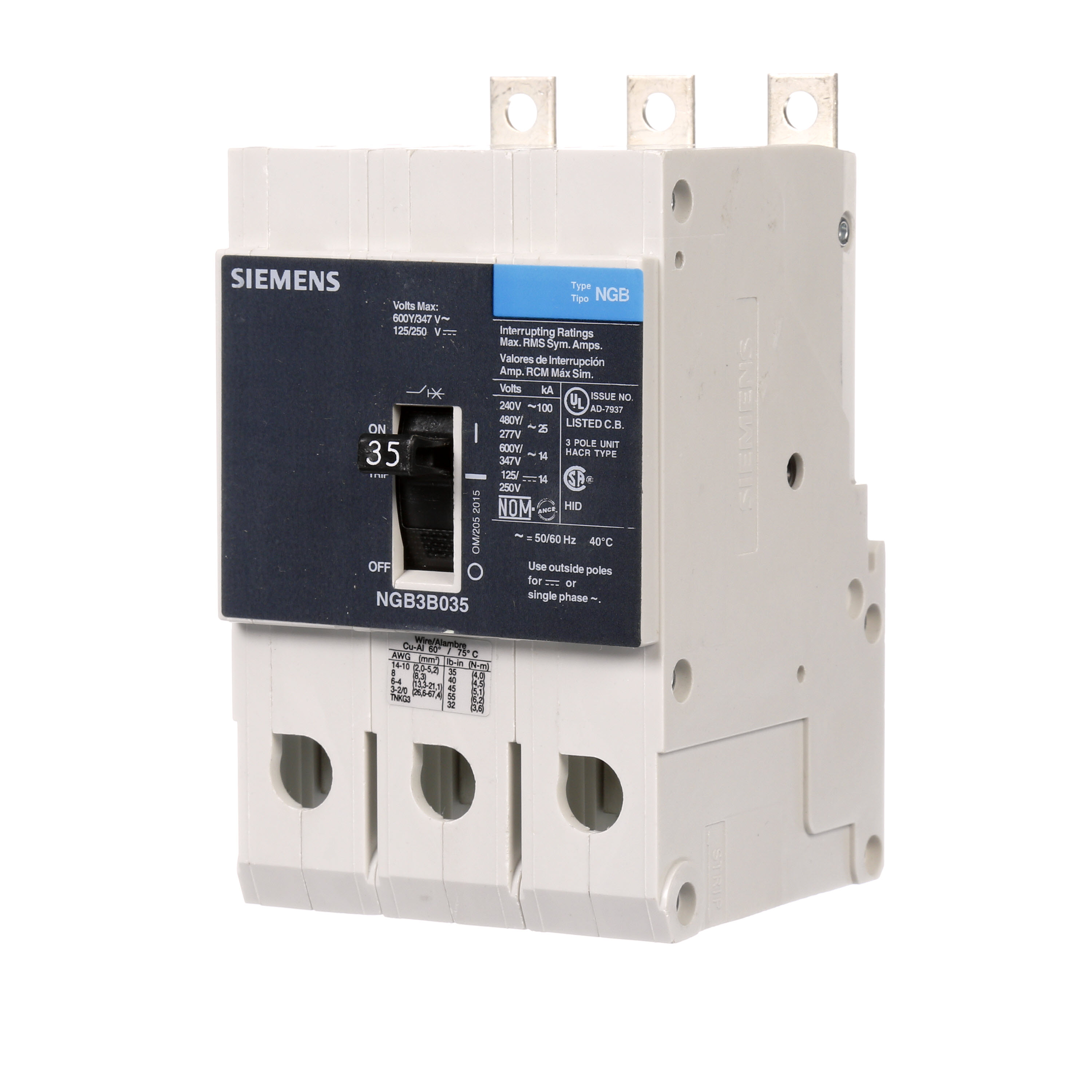

Siemens NGB3B035B Low Voltage Molded Case Circuit Breaker, 600Y/347/480Y/277 VAC, 35 A, 14 to 25 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Siemens NGB3B035B Low Voltage Molded Case Circuit Breaker, 600Y/347/480Y/277 VAC, 35 A, 14 to 25 kA Interrupt, 3 Poles
SKU702559
MFGR #NGB3B035B
Your Cost: $1,649.48/ea
List: Siemens Panelboard mounting circuit breakers are designed for quick installation in Siemens panelboards and switchboards. The interlocking features allow for one screw installation which mounts the breaker line end bus tab to the panelboard bus bar. Ideally suited for use in lighting panels, these breakers offer HACR ratings as well as Switching Duty ratings for 15 to 20 A and HID ratings from 15 to 50 A.
Siemens Panelboard mounting circuit breakers are designed for quick installation in Siemens panelboards and switchboards. The interlocking features allow for one screw installation which mounts the breaker line end bus tab to the panelboard bus bar. Ideally suited for use in lighting panels, these breakers offer HACR ratings as well as Switching Duty ratings for 15 to 20 A and HID ratings from 15 to 50 A.
Alternate Catalog Number US2:NGB3B035B ARRA Compliant C Buy American Compliant C Catalog Number NGB3B035B Connection Type Load Country of Origin MX Currency USD Dimensions 5.4 in H x 3 in W x 2.8 in D EU RoHS Indicator C Frame NGB Frequency Rating 50/60 Hz Gross Volume Per Pack 130.14 Gross Volume UOM in Gross Weight Per Pack 2.6500 lb Gross Weight per Pack Metric 1.20 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 4.6000 in Height [Metric] 11.6840 cm Length 6.9000 in Length [Metric] 17.5260 cm Mounting Type Panel Number Of Poles 3 Phase 3 pH Returnable Y Standard UL/CSA/IEC/NOM Temperature Rating 50 °C Type Low Voltage UNSPSC 39121601 UPC 11 78364341429 UPC 12 783643414297 Width 4.1000 in Width [Metric] 10.4140 cm Wire Size 8 to 1/0 AWG, 8 to 2/0 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 35 A Interrupt Rating 14 to 25 kA Trip Type LI/Thermal Magnetic Voltage Rating 600Y/347/480Y/277 VAC PANELBOARD MOUNT/BULK PACK NGB frame with standard breaking capacity
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | US2:NGB3B035B |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | NGB3B035B |
| Connection Type | Load |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 5.4 in H x 3 in W x 2.8 in D |
| EU RoHS Indicator | C |
| Frame | NGB |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 130.14 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 2.6500 lb |
| Gross Weight per Pack Metric | 1.20 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 4.6000 in |
| Height [Metric] | 11.6840 cm |
| Length | 6.9000 in |
| Length [Metric] | 17.5260 cm |
| Mounting Type | Panel |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Returnable | Y |
| Standard | UL/CSA/IEC/NOM |
| Temperature Rating | 50 °C |
| Type | Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364341429 |
| UPC 12 | 783643414297 |
| Width | 4.1000 in |
| Width [Metric] | 10.4140 cm |
| Wire Size | 8 to 1/0 AWG, 8 to 2/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 35 A |
| Interrupt Rating | 14 to 25 kA |
| Trip Type | LI/Thermal Magnetic |
| Voltage Rating | 600Y/347/480Y/277 VAC |
| PANELBOARD MOUNT/BULK PACK |
| NGB frame with standard breaking capacity |
