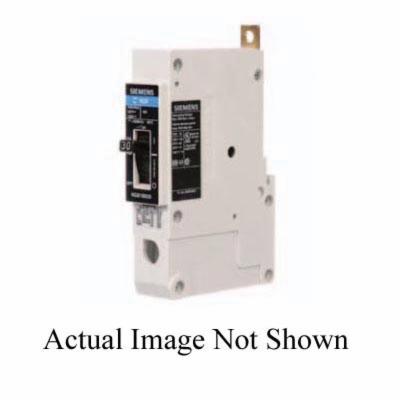

Siemens NGB1B110V Low Voltage Molded Case Circuit Breaker, 347 VAC, 110 A, 14 kA Interrupt, 1 Pole
Siemens NGB1B110V Low Voltage Molded Case Circuit Breaker, 347 VAC, 110 A, 14 kA Interrupt, 1 Pole
SKU713862
MFGR #NGB1B110V
Your Cost: $1,369.90/ea
List: Siemens Panelboard mounting circuit breakers are designed for quick installation in Siemens panelboards and switchboards. The interlocking features allow for one screw installation which mounts the breaker line end bus tab to the panelboard bus bar. Ideally suited for use in lighting panels, these breakers offer HACR ratings as well as Switching Duty ratings for 15 to 20 A and HID ratings from 15 to 50 A.
Siemens Panelboard mounting circuit breakers are designed for quick installation in Siemens panelboards and switchboards. The interlocking features allow for one screw installation which mounts the breaker line end bus tab to the panelboard bus bar. Ideally suited for use in lighting panels, these breakers offer HACR ratings as well as Switching Duty ratings for 15 to 20 A and HID ratings from 15 to 50 A.
Alternate Catalog Number US2:NGB1B110V ARRA Compliant C Buy American Compliant C Catalog Number NGB1B110V Connection Type Load Country of Origin MX Currency USD EU RoHS Indicator C Frame NGB Frequency Rating 50/60 Hz Gross Volume Per Pack 358.35 Gross Volume UOM in Gross Weight Per Pack 0.7760 lb Gross Weight per Pack Metric 0.35 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 6.2700 in Height [Metric] 15.9258 cm Length 7.5600 in Length [Metric] 19.2024 cm Mounting Type Panel Number Of Poles 1 Phase 1 pH Returnable N Standard UL/CSA/IEC/NOM Temperature Rating 50 °C Type Low Voltage UNSPSC 39121601 UPC 11 78364355515 UPC 12 783643555150 Width 7.5600 in Width [Metric] 19.2024 cm Wire Size 8 to 1/0/8 to 2/0 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 110 A Interrupt Rating 14 kA Trip Type LI/Thermal Magnetic Voltage Rating 347 VAC PANELBOARD MOUNT
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | US2:NGB1B110V |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | NGB1B110V |
| Connection Type | Load |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Frame | NGB |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 358.35 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.7760 lb |
| Gross Weight per Pack Metric | 0.35 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 6.2700 in |
| Height [Metric] | 15.9258 cm |
| Length | 7.5600 in |
| Length [Metric] | 19.2024 cm |
| Mounting Type | Panel |
| Number Of Poles | 1 |
| Phase | 1 pH |
| Returnable | N |
| Standard | UL/CSA/IEC/NOM |
| Temperature Rating | 50 °C |
| Type | Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364355515 |
| UPC 12 | 783643555150 |
| Width | 7.5600 in |
| Width [Metric] | 19.2024 cm |
| Wire Size | 8 to 1/0/8 to 2/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 110 A |
| Interrupt Rating | 14 kA |
| Trip Type | LI/Thermal Magnetic |
| Voltage Rating | 347 VAC |
| PANELBOARD MOUNT |
