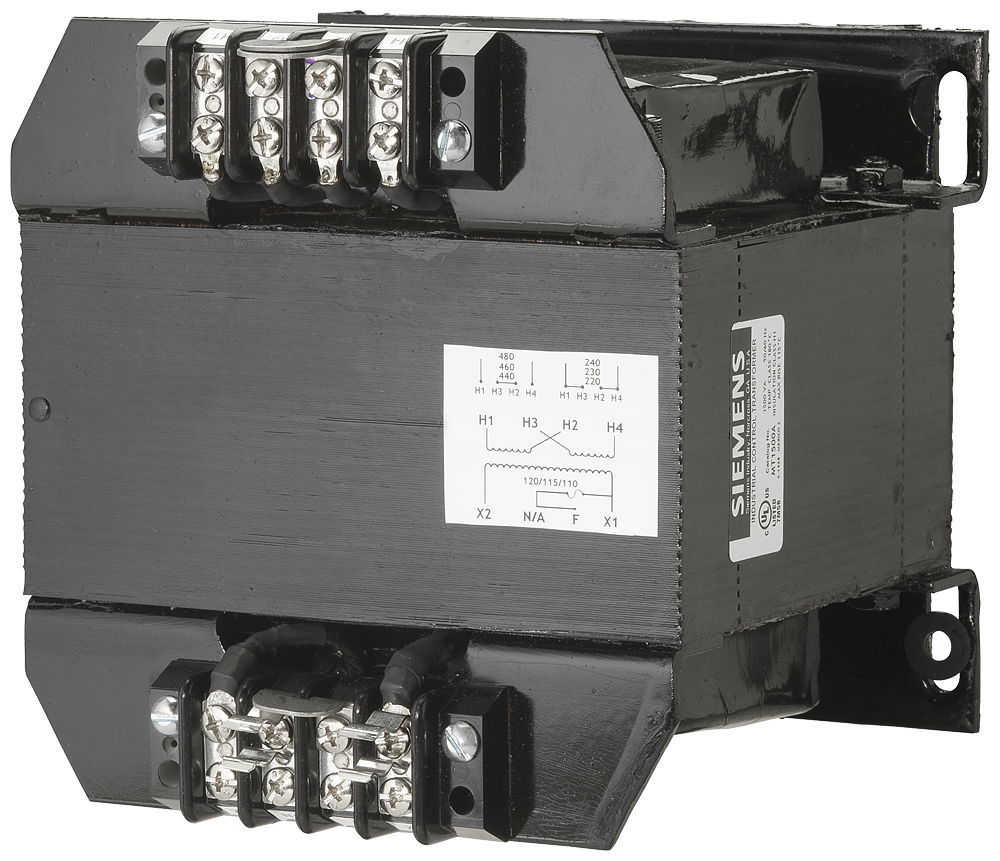

Siemens MT1500A Class MT Control Power Transformer, 240/48 VAC Primary, 120 VAC Secondary, 1500 VA, 50/60 Hz, 1 Phase

Control Transformers
404353 MFG #: MT1500A
Siemens
680.76000 / ea
SIEMENS MT1500A 1500VA CONTROL TFMR
QTY
  • Features
Features: Completely seals the transformer coils against moisture, dust, dirt and industrial contaminants for maximum protection in hostile and industrial environments, Integrally molded barriers, Molded into the trans-former, are difficult to break during wiring, ; VA Rating: 1500 VA
Epoxy encapsulated (50 to 750 VA), epoxy resin impregnated (1 to 5 kVA)
Completely seals the transformer coils against moisture, dust, dirt and industrial contaminants for maximum protection in hostile and industrial environments
Fuse clips (most models), factory mounted for integral fusing on the secondary side to save panel space, save wiring time and save the cost of buying an add-on fuse block or kit
Integrally molded barriers, between terminals and transformer, protect against electrical creepage, up to 30% greater terminal contact area permits low loss connections, extra deep barriers reduce the chance of shorts from frayed leads or careless wiring
Terminals, molded into the transformer, are difficult to break during wiring, a full quarter-inch of thread on the #10-32 terminal screws prevents stripping and pullout
Jumpers supplied, two jumper links are standard with all transformers which can be wired for dual primary voltages
Laminations are built with silicon steel to minimize core losses and to increase optimum performance and efficiency
Insulation materials are of the highest rating available for the temperature class
240/480, 230/460, 220/440 VAC primary voltage
120/115/110 VAC secondary voltage
