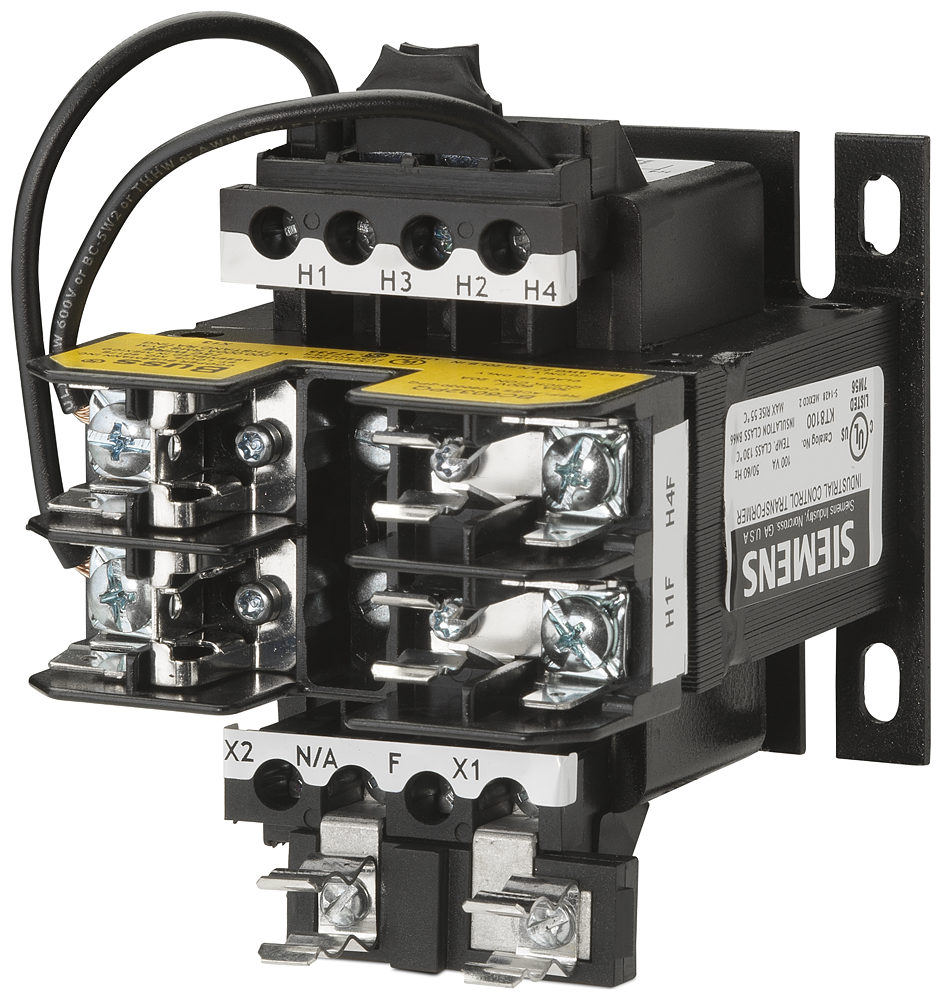

Siemens MT0100E Class MT Open Style Control Power Transformer, 550/575/600 VAC Primary, 110/115/120 VAC Secondary
Control Transformers
1052551
MFG #: MT0100E
Siemens
90.11000
/ ea
Siemens Control Power Transformer, Class MT Open Style, 550/575/600 VAC Primary, 110/115/120 VAC Secondary, 100 VA, 50/60 Hz, 1 Phase, 0.29 A Maximum, Screw, Surface Mount, 105 deg C, 55 deg C, 3.46 in H x 3.31 in W x 4.11 in D
- Features
| Epoxy encapsulated completely seals the transformer coils against moisture, dust, dirt and industrial contaminants for maximum protection in hostile and industrial environments |
| Fuse clips factory mounted for integral fusing on the secondary side to save panel space, save wiring time and save the cost of buying an add-on fuse block or kit |
| Integrally molded barriers between terminals and transformer, protect against electrical creepage |
| Extra-deep barriers reduce the chance of shorts from frayed leads or careless wiring |
| Terminals molded into the transformer, are difficult to break during wiring |
| Laminations are built with silicon steel to minimize core losses and to increase optimum performance and efficiency |
| Copper magnet wire of the highest quality assures efficient operation |
| Mounting brackets are heavy gauge steel to add strength to core construction and provide stable mounting |
| Robust design |
| 550/575/600 VAC primary volt |
| 110/115/120 VAC secondary volt |
| 0.29 A max at 240 VAC |
