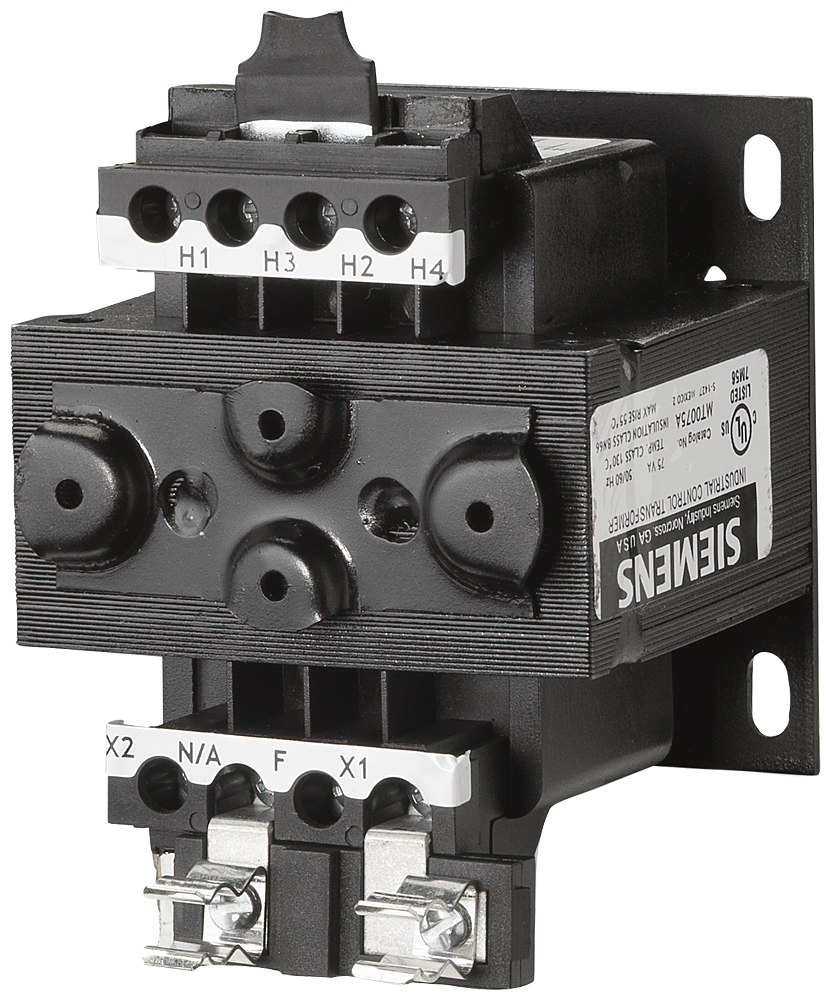

Siemens MT0075C Class MT Control Power Transformer, 120/240 VAC Primary, 24 VAC Secondary, 75 VA, 50/60 Hz, 1 Phase
Custom_Product_Images_Illustration
Siemens MT0075C Class MT Control Power Transformer, 120/240 VAC Primary, 24 VAC Secondary, 75 VA, 50/60 Hz, 1 Phase
SKU913611
MFGR #MT0075C
Your Cost: $102.54/ea
List: SIEMENS MT0075C CONTROL TRANSFORMER 75VA 120/240-24V
SIEMENS MT0075C CONTROL TRANSFORMER 75VA 120/240-24V
Alternate Catalog Number US2:MT0075C ARRA Compliant C Buy American Compliant C Catalog Number MT0075C Connection Type Screw Country of Origin MX Currency USD Dimensions 3.46 in H x 3 in W x 4.1 in D Enclosure Type IP20 EU RoHS Indicator C Gross Volume Per Pack 0.01 Gross Volume UOM in Gross Weight Per Pack 4.2000 lb Gross Weight per Pack Metric 1.90 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504320000 Height 8.6000 in Height [Metric] 21.8440 cm Insulation Epoxy Length 8.4000 in Length [Metric] 21.3360 cm Maximum Amperage Rating 0.29 A Mounting Type Slotted Returnable Y Standards ARRA CompliantBuy American Act CompliantRoHS CompliantcUL ListedUL ListedCSA CertifiedANSI Specified Temperature Rating 55 °C Type Class MT UNSPSC 39121026 UPC 11 75455402672 UPC 12 754554026725 Width 8.2000 in Width [Metric] 20.8280 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Frequency Rating 50/60 Hz Phase 1 pH Power Rating 75 VA Primary Voltage 120/240 VAC Secondary Voltage 24 VAC Features: Completely seals the transformer coils against moisture, dust, dirt and industrial contaminants for maximum protection in hostile and industrial environments, Integrally molded barriers, Molded into the trans-former, are difficult to break during wiring, ; VA Rating: 75 VA Epoxy encapsulated (50 to 750 VA), epoxy resin impregnated (1 to 5 kVA) Terminals, molded into the transformer, are difficult to break during wiring, a full quarter-inch of thread on the #10-32 terminal screws prevents stripping and pullout 0.29 A max at 240 VAC
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
Alternate Catalog Number | US2:MT0075C |
ARRA Compliant | C |
Buy American Compliant | C |
Catalog Number | MT0075C |
Connection Type | Screw |
Country of Origin | MX |
Currency | USD |
Dimensions | 3.46 in H x 3 in W x 4.1 in D |
Enclosure Type | IP20 |
EU RoHS Indicator | C |
Gross Volume Per Pack | 0.01 |
Gross Volume UOM | in |
Gross Weight Per Pack | 4.2000 lb |
Gross Weight per Pack Metric | 1.90 |
Gross Weight UOM Metric | kg |
Harmonization Tariff Schedule Code | 8504320000 |
Height | 8.6000 in |
Height [Metric] | 21.8440 cm |
Insulation | Epoxy |
Length | 8.4000 in |
Length [Metric] | 21.3360 cm |
Maximum Amperage Rating | 0.29 A |
Mounting Type | Slotted |
Returnable | Y |
Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantcUL ListedUL ListedCSA CertifiedANSI Specified |
Temperature Rating | 55 °C |
Type | Class MT |
UNSPSC | 39121026 |
UPC 11 | 75455402672 |
UPC 12 | 754554026725 |
Width | 8.2000 in |
Width [Metric] | 20.8280 cm |
Stock Status | NONSTOCK |
Brand | Siemens |
Manufacturer | Siemens |
Frequency Rating | 50/60 Hz |
Phase | 1 pH |
Power Rating | 75 VA |
Primary Voltage | 120/240 VAC |
Secondary Voltage | 24 VAC |
Features: Completely seals the transformer coils against moisture, dust, dirt and industrial contaminants for maximum protection in hostile and industrial environments, Integrally molded barriers, Molded into the trans-former, are difficult to break during wiring, ; VA Rating: 75 VA |
Epoxy encapsulated (50 to 750 VA), epoxy resin impregnated (1 to 5 kVA) |
Terminals, molded into the transformer, are difficult to break during wiring, a full quarter-inch of thread on the #10-32 terminal screws prevents stripping and pullout |
0.29 A max at 240 VAC |
