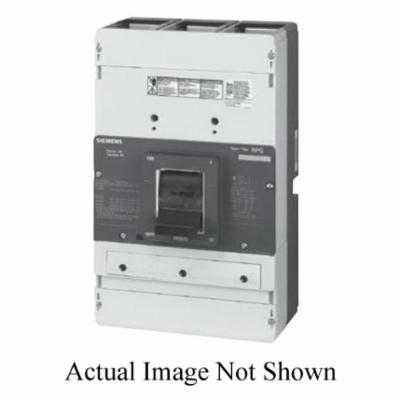

Siemens LPX3B160 VL Series Molded Case Circuit Breaker, 480 VAC, 1600 A, 100 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Siemens LPX3B160 VL Series Molded Case Circuit Breaker, 480 VAC, 1600 A, 100 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU878790
MFGR #LPX3B160
Your Cost: $59,745.97/ea
List: Siemens VL molded case circuit breakers utilize a compact and modular design which can be configured to suit a wide range of ratings from 30 A up to 1600 A. Designed for global requirements, most breakers include the world's major standards and markings such as UL, CSA, NOM, IEC, CE and CCC. At 480 VAC, VL circuit breakers feature N-Class (35kA), H-Class (65 kA) and L-Class (100 kA) interrupting ratings. They also feature both thermal magnetic and electronic trip units across the entire product line, assuring compatibility for virtually any application. VL trip units measure true RMS current. This type of measurement ensures the most accurate means of measuring currents in today's harmonic filled electrical distribution systems.
Siemens VL molded case circuit breakers utilize a compact and modular design which can be configured to suit a wide range of ratings from 30 A up to 1600 A. Designed for global requirements, most breakers include the world's major standards and markings such as UL, CSA, NOM, IEC, CE and CCC. At 480 VAC, VL circuit breakers feature N-Class (35kA), H-Class (65 kA) and L-Class (100 kA) interrupting ratings. They also feature both thermal magnetic and electronic trip units across the entire product line, assuring compatibility for virtually any application. VL trip units measure true RMS current. This type of measurement ensures the most accurate means of measuring currents in today's harmonic filled electrical distribution systems.
Alternate Catalog Number US2:LPX3B160 Application GLOBAL NON-INTERCHANGEABLE ARRA Compliant C Buy American Compliant C Catalog Number LPX3B160 Country of Origin MX Currency USD Dimensions 20 in L x 12 in W x 10 in H EU RoHS Indicator C Frame PG Frequency Rating 50/60 Hz Gross Volume Per Pack 2400.01 Gross Volume UOM in Gross Weight Per Pack 55.4900 lb Gross Weight per Pack Metric 25.17 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 10.0000 in Height [Metric] 25.4000 cm Length 20.0000 in Length [Metric] 50.8000 cm Mounting Type Fixed Number Of Poles 3 Phase 3 pH Replaced Catalog Number LPG3B160 Returnable N Series VL Series Standards UL Listed Sub Brand VL Temperature Rating 40 °C Type PG UNSPSC 39121601 UPC 11 78364350017 UPC 12 783643500174 Width 12.0000 in Width [Metric] 30.4800 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 1600 A Interrupt Rating 100 kA Trip Type Thermal Magnetic Voltage Rating 480 VAC GLOBAL NON-INTERCHANGEABLE The modularity of the VL allows for last minute adaptation, forgives changes in system design and reduces inventory Compact size reduced dimensions save panel space, which can reduce the overall system design requirements and therefore material costs VL breakers are designed for global use, allowing the user to serve virtually every market using one design and footprint, all VL breakers are HACR rated Communication is possible over PROFIBUS DP or MODBUS RTU with electronic trip units A wide variety of protection options, ampere ratings as well as a full basket of available accessories ensure that Siemens has the product to suit your needs Most VL breakers are with 100% ratings High reliability most VL components are tested to twice the endurance specified by UL LPG frame with very high breaking capacity Without auxiliary release, alarm switch, connection accessories
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | US2:LPX3B160 |
| Application | GLOBAL NON-INTERCHANGEABLE |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | LPX3B160 |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 20 in L x 12 in W x 10 in H |
| EU RoHS Indicator | C |
| Frame | PG |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 2400.01 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 55.4900 lb |
| Gross Weight per Pack Metric | 25.17 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 10.0000 in |
| Height [Metric] | 25.4000 cm |
| Length | 20.0000 in |
| Length [Metric] | 50.8000 cm |
| Mounting Type | Fixed |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Replaced Catalog Number | LPG3B160 |
| Returnable | N |
| Series | VL Series |
| Standards | UL Listed |
| Sub Brand | VL |
| Temperature Rating | 40 °C |
| Type | PG |
| UNSPSC | 39121601 |
| UPC 11 | 78364350017 |
| UPC 12 | 783643500174 |
| Width | 12.0000 in |
| Width [Metric] | 30.4800 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 1600 A |
| Interrupt Rating | 100 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 480 VAC |
| GLOBAL NON-INTERCHANGEABLE |
| The modularity of the VL allows for last minute adaptation, forgives changes in system design and reduces inventory |
| Compact size reduced dimensions save panel space, which can reduce the overall system design requirements and therefore material costs |
| VL breakers are designed for global use, allowing the user to serve virtually every market using one design and footprint, all VL breakers are HACR rated |
| Communication is possible over PROFIBUS DP or MODBUS RTU with electronic trip units |
| A wide variety of protection options, ampere ratings as well as a full basket of available accessories ensure that Siemens has the product to suit your needs |
| Most VL breakers are with 100% ratings |
| High reliability most VL components are tested to twice the endurance specified by UL |
| LPG frame with very high breaking capacity |
| Without auxiliary release, alarm switch, connection accessories |
