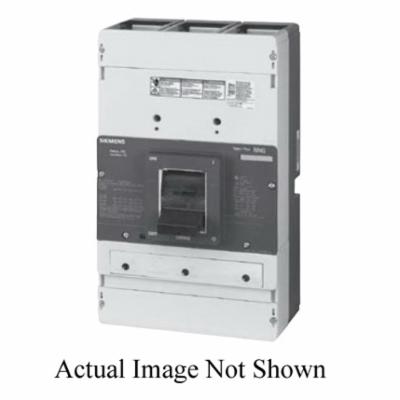

Siemens LNG3B120L VL Series Molded Case Circuit Breaker, 600/480 VAC, 1200 A, 100 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Siemens LNG3B120L VL Series Molded Case Circuit Breaker, 600/480 VAC, 1200 A, 100 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU591283
MFGR #LNG3B120L
Your Cost: $52,361.01/ea
List: Siemens VL molded case circuit breakers utilize a compact and modular design which can be configured to suit a wide range of ratings from 30 A up to 1600 A. Designed for global requirements, most breakers include the world's major standards and markings such as UL, CSA, NOM, IEC, CE and CCC. At 480 VAC, VL circuit breakers feature N-Class (35kA), H-Class (65 kA) and L-Class (100 kA) interrupting ratings. They also feature both thermal magnetic and electronic trip units across the entire product line, assuring compatibility for virtually any application. VL trip units measure true RMS current. This type of measurement ensures the most accurate means of measuring currents in today's harmonic filled electrical distribution systems.
Siemens VL molded case circuit breakers utilize a compact and modular design which can be configured to suit a wide range of ratings from 30 A up to 1600 A. Designed for global requirements, most breakers include the world's major standards and markings such as UL, CSA, NOM, IEC, CE and CCC. At 480 VAC, VL circuit breakers feature N-Class (35kA), H-Class (65 kA) and L-Class (100 kA) interrupting ratings. They also feature both thermal magnetic and electronic trip units across the entire product line, assuring compatibility for virtually any application. VL trip units measure true RMS current. This type of measurement ensures the most accurate means of measuring currents in today's harmonic filled electrical distribution systems.
Alternate Catalog Number US2:LNG3B120L Application GLOBAL INTERCHANGEABLE ARRA Compliant C Buy American Compliant C Catalog Number LNG3B120L Connection Type Standard Line/Load Lug Country of Origin MX Currency USD Dimensions 16 in H x 9 in W x 6.2 in D EU RoHS Indicator C Frame NG Frequency Rating 50/60 Hz Gross Weight Per Pack 0.0100 lb Gross Weight per Pack Metric 0.00 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 0 Length 0 Number Of Poles 3 Phase 3 pH Returnable N Series VL Series Standards UL ListedIEC CertifiedCCC CertifiedCE CertifiedCSA CertifiedNOM Certified Sub Brand VL Temperature Rating 40 °C Type NG UNSPSC 39121601 UPC 11 78364360146 UPC 12 783643601468 Width 0 Wire Size 1/0 AWG to 500 kcmil Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 1200 A Interrupt Rating 100 kA Trip Type Thermal Magnetic Voltage Rating 600/480 VAC GLOBAL INTERCHANGEABLE The modularity of the VL allows for last minute adaptation, forgives changes in system design and reduces inventory Compact size reduced dimensions save panel space, which can reduce the overall system design requirements and therefore material costs VL breakers are designed for global use, allowing the user to serve virtually every market using one design and footprint, all VL breakers are HACR rated Communication is possible over PROFIBUS DP or MODBUS RTU with electronic trip units A wide variety of protection options, ampere ratings as well as a full basket of available accessories ensure that Siemens has the product to suit your needs Most VL breakers are with 100% ratings High reliability most VL components are tested to twice the endurance specified by UL LNG frame with very high breaking capacity
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | US2:LNG3B120L |
| Application | GLOBAL INTERCHANGEABLE |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | LNG3B120L |
| Connection Type | Standard Line/Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 16 in H x 9 in W x 6.2 in D |
| EU RoHS Indicator | C |
| Frame | NG |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.0100 lb |
| Gross Weight per Pack Metric | 0.00 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 0 |
| Length | 0 |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Returnable | N |
| Series | VL Series |
| Standards | UL ListedIEC CertifiedCCC CertifiedCE CertifiedCSA CertifiedNOM Certified |
| Sub Brand | VL |
| Temperature Rating | 40 °C |
| Type | NG |
| UNSPSC | 39121601 |
| UPC 11 | 78364360146 |
| UPC 12 | 783643601468 |
| Width | 0 |
| Wire Size | 1/0 AWG to 500 kcmil |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 1200 A |
| Interrupt Rating | 100 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600/480 VAC |
| GLOBAL INTERCHANGEABLE |
| The modularity of the VL allows for last minute adaptation, forgives changes in system design and reduces inventory |
| Compact size reduced dimensions save panel space, which can reduce the overall system design requirements and therefore material costs |
| VL breakers are designed for global use, allowing the user to serve virtually every market using one design and footprint, all VL breakers are HACR rated |
| Communication is possible over PROFIBUS DP or MODBUS RTU with electronic trip units |
| A wide variety of protection options, ampere ratings as well as a full basket of available accessories ensure that Siemens has the product to suit your needs |
| Most VL breakers are with 100% ratings |
| High reliability most VL components are tested to twice the endurance specified by UL |
| LNG frame with very high breaking capacity |
