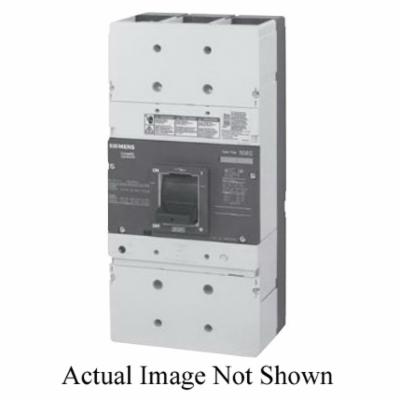

Siemens LMG3B800L VL Series Molded Case Circuit Breaker, 600 VAC, 800 A, 100 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Siemens LMG3B800L VL Series Molded Case Circuit Breaker, 600 VAC, 800 A, 100 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU763078
MFGR #LMG3B800L
Your Cost: $36,814.85/ea
List: Siemens VL molded case circuit breakers utilize a compact and modular design which can be configured to suit a wide range of ratings from 30 A up to 1600 A. Designed for global requirements, most breakers include the world's major standards and markings such as UL, CSA, NOM, IEC, CE and CCC. At 480 VAC, VL circuit breakers feature N-Class (35kA), H-Class (65 kA) and L-Class (100 kA) interrupting ratings. They also feature both thermal magnetic and electronic trip units across the entire product line, assuring compatibility for virtually any application. VL trip units measure true RMS current. This type of measurement ensures the most accurate means of measuring currents in today's harmonic filled electrical distribution systems.
Siemens VL molded case circuit breakers utilize a compact and modular design which can be configured to suit a wide range of ratings from 30 A up to 1600 A. Designed for global requirements, most breakers include the world's major standards and markings such as UL, CSA, NOM, IEC, CE and CCC. At 480 VAC, VL circuit breakers feature N-Class (35kA), H-Class (65 kA) and L-Class (100 kA) interrupting ratings. They also feature both thermal magnetic and electronic trip units across the entire product line, assuring compatibility for virtually any application. VL trip units measure true RMS current. This type of measurement ensures the most accurate means of measuring currents in today's harmonic filled electrical distribution systems.
Alternate Catalog Number US2:LMG3B800L Application GLOBAL INTERCHANGEABLE ARRA Compliant C Buy American Compliant C Catalog Number LMG3B800L Connection Type Standard Line/Load Lug Country of Origin MX Currency USD Dimensions 16 in H x 7.5 in W x 4.7 in D EU RoHS Indicator C Frame MG Frequency Rating 50/60 Hz Gross Weight Per Pack 0.0100 lb Gross Weight per Pack Metric 0.00 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 0 Length 0 Number Of Poles 3 Phase 3 pH Returnable N Series VL Series Standards UL ListedIEC CertifiedCCC CertifiedCE CertifiedCSA CertifiedNOM Certified Sub Brand VL Temperature Rating 40 °C Type MG UNSPSC 39121601 UPC 11 78364359547 UPC 12 783643595477 Width 0 Wire Size 1/0 AWG to 500 kcmil Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 800 A Interrupt Rating 100 kA Trip Type Thermal Magnetic Voltage Rating 600 VAC GLOBAL INTERCHANGEABLE The modularity of the VL allows for last minute adaptation, forgives changes in system design and reduces inventory Compact size reduced dimensions save panel space, which can reduce the overall system design requirements and therefore material costs VL breakers are designed for global use, allowing the user to serve virtually every market using one design and footprint, all VL breakers are HACR rated Communication is possible over PROFIBUS DP or MODBUS RTU with electronic trip units A wide variety of protection options, ampere ratings as well as a full basket of available accessories ensure that Siemens has the product to suit your needs Most VL breakers are with 100% ratings High reliability most VL components are tested to twice the endurance specified by UL LMG frame with very high breaking capacity
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | US2:LMG3B800L |
| Application | GLOBAL INTERCHANGEABLE |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | LMG3B800L |
| Connection Type | Standard Line/Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 16 in H x 7.5 in W x 4.7 in D |
| EU RoHS Indicator | C |
| Frame | MG |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.0100 lb |
| Gross Weight per Pack Metric | 0.00 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 0 |
| Length | 0 |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Returnable | N |
| Series | VL Series |
| Standards | UL ListedIEC CertifiedCCC CertifiedCE CertifiedCSA CertifiedNOM Certified |
| Sub Brand | VL |
| Temperature Rating | 40 °C |
| Type | MG |
| UNSPSC | 39121601 |
| UPC 11 | 78364359547 |
| UPC 12 | 783643595477 |
| Width | 0 |
| Wire Size | 1/0 AWG to 500 kcmil |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 800 A |
| Interrupt Rating | 100 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC |
| GLOBAL INTERCHANGEABLE |
| The modularity of the VL allows for last minute adaptation, forgives changes in system design and reduces inventory |
| Compact size reduced dimensions save panel space, which can reduce the overall system design requirements and therefore material costs |
| VL breakers are designed for global use, allowing the user to serve virtually every market using one design and footprint, all VL breakers are HACR rated |
| Communication is possible over PROFIBUS DP or MODBUS RTU with electronic trip units |
| A wide variety of protection options, ampere ratings as well as a full basket of available accessories ensure that Siemens has the product to suit your needs |
| Most VL breakers are with 100% ratings |
| High reliability most VL components are tested to twice the endurance specified by UL |
| LMG frame with very high breaking capacity |
