Siemens

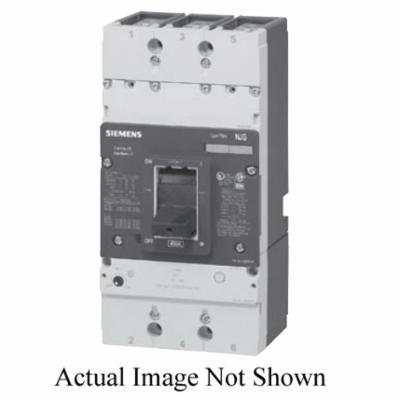

Siemens LJG3V400L VL Series Molded Case Circuit Breaker, 600 VAC, 400 A, 100 kA Interrupt, 3 Poles, Electronic Trip
Siemens
Siemens LJG3V400L VL Series Molded Case Circuit Breaker, 600 VAC, 400 A, 100 kA Interrupt, 3 Poles, Electronic Trip
SKU932247
MFGR #LJG3V400L
Your Cost: $37,595.11/ea
List: Siemens VL molded case circuit breakers utilize a compact and modular design which can be configured to suit a wide range of ratings from 30 A up to 1600 A. Designed for global requirements, most breakers include the world's major standards and markings such as UL, CSA, NOM, IEC, CE and CCC. At 480 VAC, VL circuit breakers feature N-Class (35kA), H-Class (65 kA) and L-Class (100 kA) interrupting ratings. They also feature both thermal magnetic and electronic trip units across the entire product line, assuring compatibility for virtually any application. VL trip units measure true RMS current. This type of measurement ensures the most accurate means of measuring currents in today's harmonic filled electrical distribution systems.
Siemens VL molded case circuit breakers utilize a compact and modular design which can be configured to suit a wide range of ratings from 30 A up to 1600 A. Designed for global requirements, most breakers include the world's major standards and markings such as UL, CSA, NOM, IEC, CE and CCC. At 480 VAC, VL circuit breakers feature N-Class (35kA), H-Class (65 kA) and L-Class (100 kA) interrupting ratings. They also feature both thermal magnetic and electronic trip units across the entire product line, assuring compatibility for virtually any application. VL trip units measure true RMS current. This type of measurement ensures the most accurate means of measuring currents in today's harmonic filled electrical distribution systems.
Actuator N/A Alternate Catalog Number US2:LJG3V400L Application GLOBAL INTERCHANGEABLE ARRA Compliant C Auxiliary Contacts N/A Buy American Compliant C Catalog Number LJG3V400L Connection LINE & LOAD STANDARD (CU/AL) LUGS Connection Type Standard Line/Load Lug Country of Origin DE Currency USD Dimensions 11 in H x 5.5 in W x 4.2 in D Enclosure N/A Environmental Conditions N/A EU RoHS Indicator C Frame JG Frequency Rating 50/60 Hz Gross Weight Per Pack 1.0000 lb Gross Weight per Pack Metric 0.45 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 0 Length 0 Load Rating N/A Material MOLDED CASE CIRCUIT BREAKER Number Of Poles 3 Operating Temperature 40 °C Phase 3 pH Returnable N Series VL Series Standard UL/IEC/CE/CSA/NOM/CCC Standards UL ListedIEC CertifiedCCC CertifiedCE CertifiedCSA CertifiedNOM Certified Sub Brand VL Temperature Rating 40 °C Trip Range N/A Type JG UNSPSC 39121601 UPC 11 04089280948 UPC 12 040892809480 Width 0 Wire Size 3/0 AWG to 250 kcmil Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 400 A Interrupt Rating 100 kA Trip Type electronic Voltage Rating 600 VAC GLOBAL INTERCHANGEABLE LONG DELAY/SHORT DELAY/INSTANTANEOUS/& GROUND FAULT TRIP FUNCTIONS The modularity of the VL allows for last minute adaptation, forgives changes in system design and reduces inventory Compact size reduced dimensions save panel space, which can reduce the overall system design requirements and therefore material costs VL breakers are designed for global use, allowing the user to serve virtually every market using one design and footprint, all VL breakers are HACR rated Communication is possible over PROFIBUS DP or MODBUS RTU with electronic trip units A wide variety of protection options, ampere ratings as well as a full basket of available accessories ensure that Siemens has the product to suit your needs Most VL breakers are with 100% ratings High reliability most VL components are tested to twice the endurance specified by UL LJG frame with very high breaking capacity 4-Wire, long, short delay, instantaneous and ground fault trip functions
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | N/A |
| Alternate Catalog Number | US2:LJG3V400L |
| Application | GLOBAL INTERCHANGEABLE |
| ARRA Compliant | C |
| Auxiliary Contacts | N/A |
| Buy American Compliant | C |
| Catalog Number | LJG3V400L |
| Connection | LINE & LOAD STANDARD (CU/AL) LUGS |
| Connection Type | Standard Line/Load Lug |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 11 in H x 5.5 in W x 4.2 in D |
| Enclosure | N/A |
| Environmental Conditions | N/A |
| EU RoHS Indicator | C |
| Frame | JG |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 1.0000 lb |
| Gross Weight per Pack Metric | 0.45 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 0 |
| Length | 0 |
| Load Rating | N/A |
| Material | MOLDED CASE CIRCUIT BREAKER |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 pH |
| Returnable | N |
| Series | VL Series |
| Standard | UL/IEC/CE/CSA/NOM/CCC |
| Standards | UL ListedIEC CertifiedCCC CertifiedCE CertifiedCSA CertifiedNOM Certified |
| Sub Brand | VL |
| Temperature Rating | 40 °C |
| Trip Range | N/A |
| Type | JG |
| UNSPSC | 39121601 |
| UPC 11 | 04089280948 |
| UPC 12 | 040892809480 |
| Width | 0 |
| Wire Size | 3/0 AWG to 250 kcmil |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 400 A |
| Interrupt Rating | 100 kA |
| Trip Type | electronic |
| Voltage Rating | 600 VAC |
| GLOBAL INTERCHANGEABLE |
| LONG DELAY/SHORT DELAY/INSTANTANEOUS/& GROUND FAULT TRIP FUNCTIONS |
| The modularity of the VL allows for last minute adaptation, forgives changes in system design and reduces inventory |
| Compact size reduced dimensions save panel space, which can reduce the overall system design requirements and therefore material costs |
| VL breakers are designed for global use, allowing the user to serve virtually every market using one design and footprint, all VL breakers are HACR rated |
| Communication is possible over PROFIBUS DP or MODBUS RTU with electronic trip units |
| A wide variety of protection options, ampere ratings as well as a full basket of available accessories ensure that Siemens has the product to suit your needs |
| Most VL breakers are with 100% ratings |
| High reliability most VL components are tested to twice the endurance specified by UL |
| LJG frame with very high breaking capacity |
| 4-Wire, long, short delay, instantaneous and ground fault trip functions |
