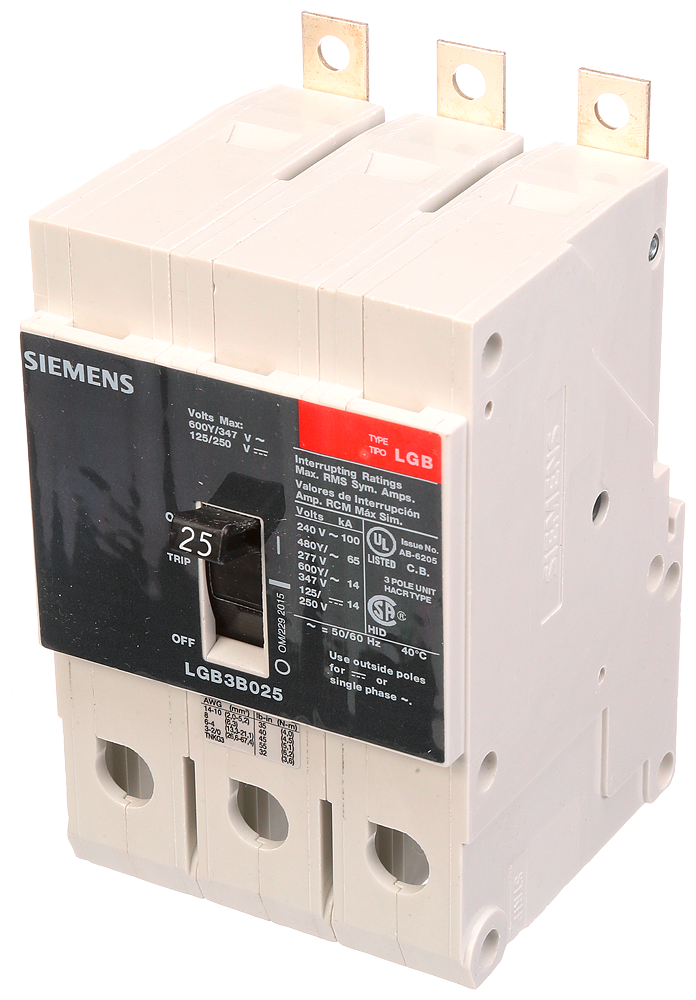

Siemens LGB3B025B Molded Case Circuit Breaker, 480 VAC, 25 A, 65 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Siemens LGB3B025B Molded Case Circuit Breaker, 480 VAC, 25 A, 65 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU880984
MFGR #LGB3B025B
$/ea
Siemens Molded Case Circuit Breaker, 480 VAC, 25 A, 50/60 Hz, 65 kA Interrupt, G/125 A Frame, Thermal Magnetic Trip, 3 Poles, 3-Phase, Load Lug, 14 to 6/12 to 10 AWG Wire, Panel Mount, 40 deg C, 2.87 in L x 2.96 in W x 4.99 in H
Siemens Molded Case Circuit Breaker, 480 VAC, 25 A, 50/60 Hz, 65 kA Interrupt, G/125 A Frame, Thermal Magnetic Trip, 3 Poles, 3-Phase, Load Lug, 14 to 6/12 to 10 AWG Wire, Panel Mount, 40 deg C, 2.87 in L x 2.96 in W x 4.99 in H
Alternate Catalog Number US2:LGB3B025B ARRA Compliant C Buy American Compliant C Catalog Number LGB3B025B Connection Type Load Lug/Low Tab Country of Origin MX Currency USD Dimensions 2.87 in L x 2.96 in W x 4.99 in H EU RoHS Indicator C Frame 125 A Frequency Rating 50/60 Hz Gross Volume Per Pack 182.16 Gross Volume UOM in Gross Weight Per Pack 2.4200 lb Gross Weight per Pack Metric 1.10 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 4.6000 in Height [Metric] 11.6840 cm Length 5.5000 in Length [Metric] 13.9700 cm Mounting Type Panel Number Of Poles 3 Phase 3 pH Returnable N Standard UL/CSA/IEC/NOM Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489CSA C22.2 Temperature Rating 40 °C Type Type LGB Low Voltage UNSPSC 39121601 UPC 11 88762122023 UPC 12 887621220235 Width 7.2000 in Width [Metric] 18.2880 cm Wire Size 14 to 6 AWG, 12 to 10 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 25 A Interrupt Rating 65 kA Trip Type Thermal Magnetic Voltage Rating 480 VAC PANELBOARD MOUNT The GB circuit breaker includes the same design features as the GG except the line end of the breaker is configured for panelboard mounting applications and it is without some of the global markings 14 to 6 AWG copper, 12 to 10 AWG aluminum wire range
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | US2:LGB3B025B |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | LGB3B025B |
| Connection Type | Load Lug/Low Tab |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.87 in L x 2.96 in W x 4.99 in H |
| EU RoHS Indicator | C |
| Frame | 125 A |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 182.16 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 2.4200 lb |
| Gross Weight per Pack Metric | 1.10 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 4.6000 in |
| Height [Metric] | 11.6840 cm |
| Length | 5.5000 in |
| Length [Metric] | 13.9700 cm |
| Mounting Type | Panel |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Returnable | N |
| Standard | UL/CSA/IEC/NOM |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489CSA C22.2 |
| Temperature Rating | 40 °C |
| Type | Type LGB Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 88762122023 |
| UPC 12 | 887621220235 |
| Width | 7.2000 in |
| Width [Metric] | 18.2880 cm |
| Wire Size | 14 to 6 AWG, 12 to 10 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 25 A |
| Interrupt Rating | 65 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 480 VAC |
| PANELBOARD MOUNT |
| The GB circuit breaker includes the same design features as the GG except the line end of the breaker is configured for panelboard mounting applications and it is without some of the global markings |
| 14 to 6 AWG copper, 12 to 10 AWG aluminum wire range |
