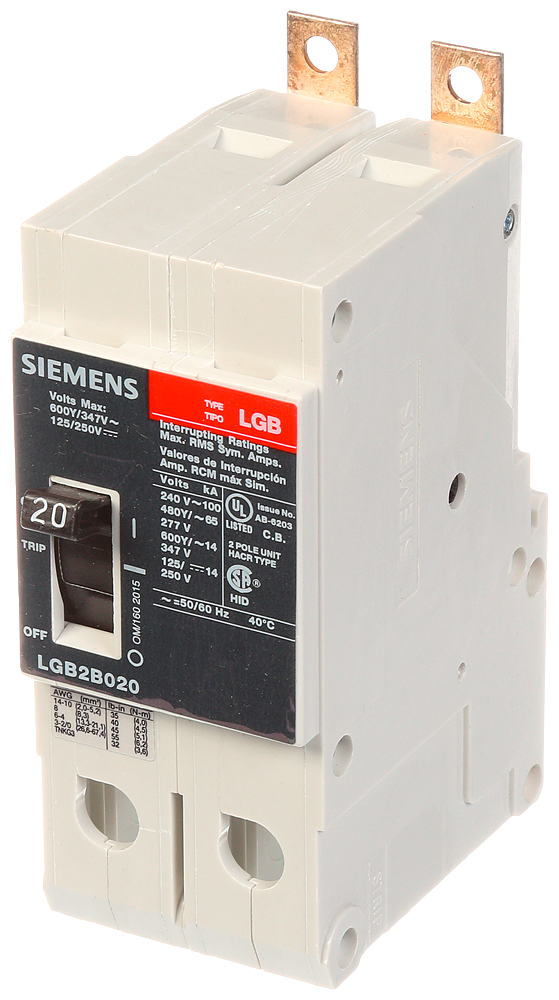

Siemens LGB2B020B Molded Case Circuit Breaker, 480 VAC, 20 A, 65 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Siemens LGB2B020B Molded Case Circuit Breaker, 480 VAC, 20 A, 65 kA Interrupt, 2 Poles, Thermal Magnetic Trip
SKU880928
MFGR #LGB2B020B
Your Cost: $2,003.83/ea
List: Siemens Molded Case Circuit Breaker, 480 VAC, 20 A, 50/60 Hz, 65 kA Interrupt, G/125 A Frame, Thermal Magnetic Trip, 2 Poles, 1-Phase, Load Lug, 14 to 6/12 to 10 AWG Wire, Panel Mount, 40 deg C, 2.87 in L x 1.97 in W x 4.99 in H
Siemens Molded Case Circuit Breaker, 480 VAC, 20 A, 50/60 Hz, 65 kA Interrupt, G/125 A Frame, Thermal Magnetic Trip, 2 Poles, 1-Phase, Load Lug, 14 to 6/12 to 10 AWG Wire, Panel Mount, 40 deg C, 2.87 in L x 1.97 in W x 4.99 in H
Alternate Catalog Number US2:LGB2B020B ARRA Compliant C Buy American Compliant C Catalog Number LGB2B020B Connection Type Load Lug/Low Tab Country of Origin MX Currency USD Dimensions 2.87 in L x 1.97 in W x 4.99 in H EU RoHS Indicator C Frame 125 A Frequency Rating 50/60 Hz Gross Volume Per Pack 622.22 Gross Volume UOM in Gross Weight Per Pack 1.8500 lb Gross Weight per Pack Metric 0.84 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 4.8000 in Height [Metric] 12.1920 cm Length 7.5000 in Length [Metric] 19.0500 cm Mounting Type Panel Number Of Poles 2 Phase 1 pH Returnable Y Standard UL/CSA/IEC/NOM Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489CSA C22.2 Temperature Rating 40 °C Type Type LGB Low Voltage UNSPSC 39121601 UPC 11 88762122007 UPC 12 887621220075 Width 5.8000 in Width [Metric] 14.7320 cm Wire Size 14 to 6 AWG, 12 to 10 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 20 A Interrupt Rating 65 kA Trip Type Thermal Magnetic Voltage Rating 480 VAC PANELBOARD MOUNT The GB circuit breaker includes the same design features as the GG except the line end of the breaker is configured for panelboard mounting applications and it is without some of the global markings 14 to 6 AWG copper, 12 to 10 AWG aluminum wire range
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | US2:LGB2B020B |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | LGB2B020B |
| Connection Type | Load Lug/Low Tab |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.87 in L x 1.97 in W x 4.99 in H |
| EU RoHS Indicator | C |
| Frame | 125 A |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 622.22 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.8500 lb |
| Gross Weight per Pack Metric | 0.84 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 4.8000 in |
| Height [Metric] | 12.1920 cm |
| Length | 7.5000 in |
| Length [Metric] | 19.0500 cm |
| Mounting Type | Panel |
| Number Of Poles | 2 |
| Phase | 1 pH |
| Returnable | Y |
| Standard | UL/CSA/IEC/NOM |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489CSA C22.2 |
| Temperature Rating | 40 °C |
| Type | Type LGB Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 88762122007 |
| UPC 12 | 887621220075 |
| Width | 5.8000 in |
| Width [Metric] | 14.7320 cm |
| Wire Size | 14 to 6 AWG, 12 to 10 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 20 A |
| Interrupt Rating | 65 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 480 VAC |
| PANELBOARD MOUNT |
| The GB circuit breaker includes the same design features as the GG except the line end of the breaker is configured for panelboard mounting applications and it is without some of the global markings |
| 14 to 6 AWG copper, 12 to 10 AWG aluminum wire range |
