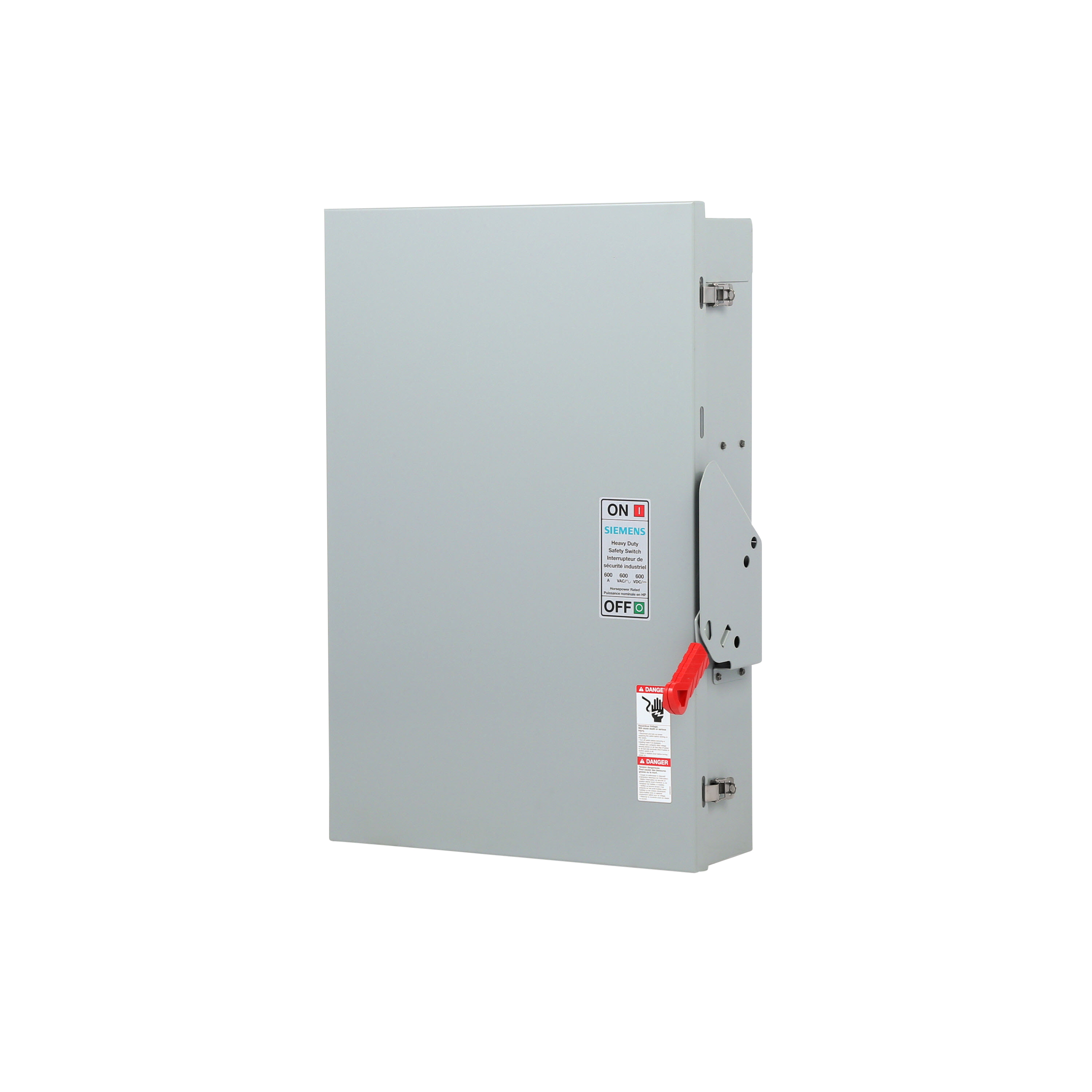

Siemens HNF366RA 600A 3P 600V 3W NON-FUSED HD TYPE 3R
Heavy Duty Safety Switches
941217
MFG #: HNF366RA
Siemens
3347.21000
/ ea
Siemens SpeedFax™ Heavy Duty Safety Switch, Low Voltage Non-Fusible, 600 VAC, 600 A, 500 hp, 3 Phase, 60 Hz, 3 Poles, 3 Wires, 200 kA Short Circuit, TPST, Lever Actuator, NEMA 3R, Surface Mount, Lug Terminal, -20 to 120 deg F, 44.07 in H x 24.65 in W x 14.68 in D
- Catalog URL - Siemens_HF324SS_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - SIE_DW_HNF366RA.pdf(Computer~Aided [CAD|BIM] Model URL)
- Spec Sheet URL - 10991_S46IN5QBECGAJRV3.pdf(Spec Sheet URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Owners Manual URL - SIE_IM_SwitchMaintenance.pdf(Owners Manual URL)
- User Manual URL - man(User Manual URL)
- Applications
- Features
| DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS |
| Heavy Duty Safety Switches 200 - 1200 amp |
| Visible blade, double break switching action |
| Highly visible red handle grip designed for hook stick operation |
| Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking |
| Handle can be padlocked in the OFF position with up to three padlocks with 5/16 in hasps |
| Generous top, bottom and side gutters that meet or exceed NEC wire bending space requirements |
| Tangential knockouts through 600 A for easy conduit lineup |
| Side hinged door that opens past 180 deg for easier wiring |
| Lugs are field convertible to copper body and to a wide variety of compression connectors |
| Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals |
| Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication |
| Drawn cover for increased rigidity and resistance to abuse |
| Top key hole and bottom mounting holes provide easy 2 or 3-point mounting |
