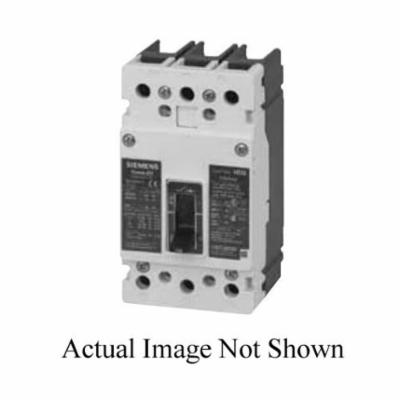

Siemens HEG2B030L VL Series Low Voltage Molded Case Circuit Breaker, 480 VAC, 30 A, 65 kA Interrupt, 2 Poles
Siemens HEG2B030L VL Series Low Voltage Molded Case Circuit Breaker, 480 VAC, 30 A, 65 kA Interrupt, 2 Poles
SKU716679
MFGR #HEG2B030L
Your Cost: $5,510.52/ea
List: SIEMENS HEG2B030L 2P 30A 65KA MCCB
SIEMENS HEG2B030L 2P 30A 65KA MCCB
ARRA Compliant C Buy American Compliant C Catalog Number HEG2B030L Connection Type Load Lug Country of Origin DO Currency USD Dimensions 6 in L x 4 in W x 3 in H EU RoHS Indicator C Frame EG Frequency Rating 50/60 Hz Gross Weight Per Pack 2.0000 lb Gross Weight per Pack Metric 0.91 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200040 Height 3.00 in Height [Metric] 7.6200 cm Length 6.00 in Length [Metric] 15.2400 cm Number Of Poles 2 Phase 1 pH Returnable N Series VL Series Standard UL/CSA/IEC/NOM Standards UL ListedIEC CertifiedCSA CertifiedNOM Certified Temperature Rating 40 °C Type Low Voltage UNSPSC 39121601 UPC 11 78364352028 UPC 12 783643520288 Width 4.00 in Width [Metric] 10.1600 cm Wire Size 8 to 1/0 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 30 A Interrupt Rating 65 kA Trip Type Thermal Magnetic Voltage Rating 480 VAC GENERAL APPLICATION The modularity of the VL allows for last minute adaptation, forgives changes in system design and reduces inventory Compact size reduced dimensions save panel space, which can reduce the overall system design requirements and therefore material costs VL breaker are designed for global use, allowing the user to serve virtually every market using one design and footprint, all VL breaker are HACR rated Communication is possible over PROFIBUS DP or MODBUS RTU with electronic trip units A wide variety of protection options, ampere ratings as well as a full basket of available accessories ensure that Siemens has the product to suit your needs Most VL breaker are also available with 100% ratings High reliability most VL components are tested to twice the endurance specified by UL With high breaking capacity
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HEG2B030L |
| Connection Type | Load Lug |
| Country of Origin | DO |
| Currency | USD |
| Dimensions | 6 in L x 4 in W x 3 in H |
| EU RoHS Indicator | C |
| Frame | EG |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 2.0000 lb |
| Gross Weight per Pack Metric | 0.91 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 3.00 in |
| Height [Metric] | 7.6200 cm |
| Length | 6.00 in |
| Length [Metric] | 15.2400 cm |
| Number Of Poles | 2 |
| Phase | 1 pH |
| Returnable | N |
| Series | VL Series |
| Standard | UL/CSA/IEC/NOM |
| Standards | UL ListedIEC CertifiedCSA CertifiedNOM Certified |
| Temperature Rating | 40 °C |
| Type | Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364352028 |
| UPC 12 | 783643520288 |
| Width | 4.00 in |
| Width [Metric] | 10.1600 cm |
| Wire Size | 8 to 1/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 30 A |
| Interrupt Rating | 65 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 480 VAC |
| GENERAL APPLICATION |
| The modularity of the VL allows for last minute adaptation, forgives changes in system design and reduces inventory |
| Compact size reduced dimensions save panel space, which can reduce the overall system design requirements and therefore material costs |
| VL breaker are designed for global use, allowing the user to serve virtually every market using one design and footprint, all VL breaker are HACR rated |
| Communication is possible over PROFIBUS DP or MODBUS RTU with electronic trip units |
| A wide variety of protection options, ampere ratings as well as a full basket of available accessories ensure that Siemens has the product to suit your needs |
| Most VL breaker are also available with 100% ratings |
| High reliability most VL components are tested to twice the endurance specified by UL |
| With high breaking capacity |
