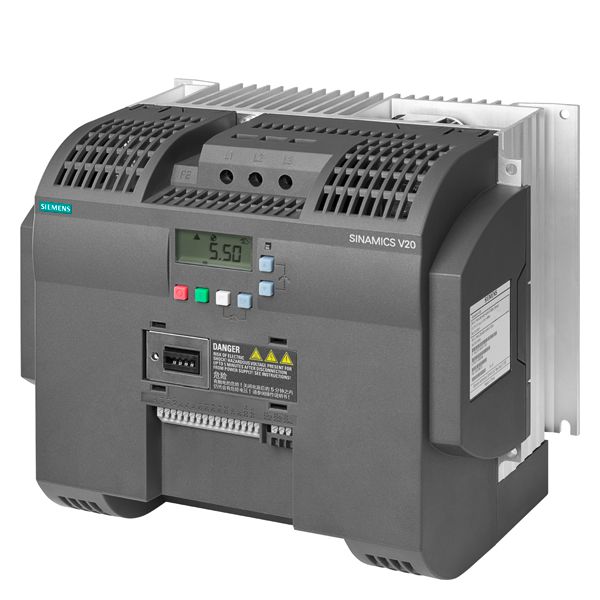

Siemens 6SL32105BE275CV0 SINAMICS V20,
AC Variable Frequency Drives
1018792
MFG #: 6SL32105BE275CV0
Siemens
2066.79000
/ ea
SINAMICS V20 3AC380-480V -15/+10% 47-63HZ RATED POWER 7.5KW WITH 150% OVERLOAD FOR 60SEC INTEGRATED FILTER C3 I/O-INTERFACE 4DI, 2DO,2AI,1AO FIELDBUS USS/ MODBUS RTU WITH INBUILT BOP PROTECTION IP20/ UL OPEN TYPE SIZE FSD 240X207X173(HXWXD)
- 3D Rendering URL - getCadDocument?articleNumber=6SL3210-5BE27-5CV0&fileType=3DPDF(3D Rendering URL)
- Catalog URL - Siemens_6SL32105BB137UV1_Catalog.pdf(Catalog URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=6SL3210-5BE27-5CV0&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=6SL3210-5BE27-5CV0&language=en(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- Features
| Simple installation - push-through and wall mounting - side-by-side possible for both versions |
| Simple commissioning, diagnostics, and service via mobile and local operator panels, as well as a multitude of options |
| Easy handling - parameter readout and cloning without power supply |
| Greater voltage range, advanced cooling, and coated electronics boards add to the robustness of the converter in tough environmental conditions |
| Stable operation under difficult line supply conditions |
| Operating and ambient temperature from -10 to 60 deg C |
| ECO mode for U/f, U2/f, hibernation mode in idle state |
| Integrated energy and water flow monitoring |
| High overload capacity (HO) and low overload capacity (LO) for frame size FSE |
| 16.5 A rated current (HO) output, 16.5 A rated current (LO) output and 16.5 A rated current (HO) at 480 V, 16.5 A rated current (LO) at 480 V |
| 10 hp rated power (HO) output, 10 hp rated power (LO) output |
