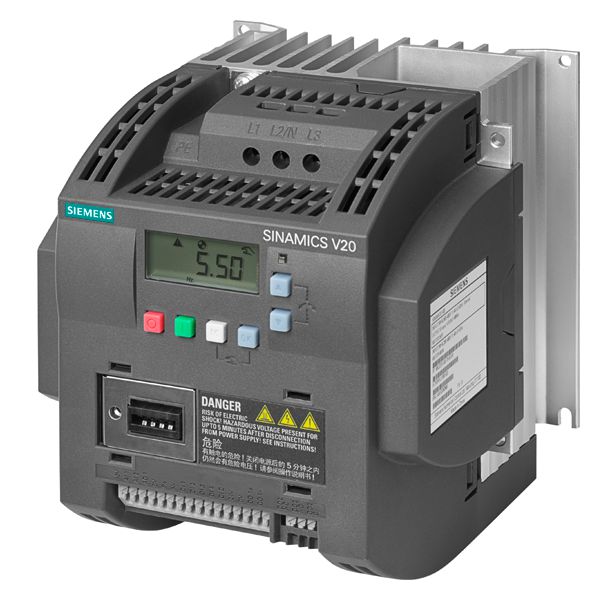

Siemens 6SL32105BE230CV0 SINAMICS V20,
SKU1018784
MFGR #6SL32105BE230CV0
Your Cost: $546.73/ea
List: SINAMICS V20 3AC380-480V -15/+10% 47-63HZ RATED POWER 3.0KW WITH 150% OVERLOAD FOR 60SEC FILTER C3 I/O-INTERFACE 4DI, 2DO,2AI,1AO FIELDBUS USS/ MODBUS RTU WITHINBUILT BOP PROTECTION IP20/ UL OPEN TYPE SIZE FSC 184X182X169(HXWXD)
SINAMICS V20 3AC380-480V -15/+10% 47-63HZ RATED POWER 3.0KW WITH 150% OVERLOAD FOR 60SEC FILTER C3 I/O-INTERFACE 4DI, 2DO,2AI,1AO FIELDBUS USS/ MODBUS RTU WITHINBUILT BOP PROTECTION IP20/ UL OPEN TYPE SIZE FSC 184X182X169(HXWXD)
Alternate Catalog Number 6SL3210-5BE23-0CV0 ARRA Compliant C Buy American Compliant C Catalog Number 6SL32105BE230CV0 Country of Origin CN Currency USD Display Type BOP Enclosure Type IP20/Open EU RoHS Indicator C Gross Volume Per Pack 472.17 Gross Volume UOM in Gross Weight Per Pack 3.9900 lb Gross Weight per Pack Metric 1.81 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504409570 Height 7.4900 in Height [Metric] 19.0246 cm Length 7.8800 in Length [Metric] 20.0152 cm Returnable N Series SINAMICS V20 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantcULus ListedCE CertifiedC-TICK CertifiedKC CertifiedEN 61800-5-1EN 60204-1EN 61800-3WEEE (2012/19/EU) Type Compact UNSPSC 39121007 UPC 11 88762105780 UPC 12 887621057800 Width [Metric] 20.3200 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 7.3 A Depth 169 mm Horsepower 4 hp Voltage Rating 380 to 480 VAC Width 8.0000 in Simple installation - push-through and wall mounting - side-by-side possible for both versions Simple commissioning, diagnostics, and service via mobile and local operator panels, as well as a multitude of options Easy handling - parameter readout and cloning without power supply Greater voltage range, advanced cooling, and coated electronics boards add to the robustness of the converter in tough environmental conditions Stable operation under difficult line supply conditions Operating and ambient temperature from -10 to 60 deg C ECO mode for U/f, U2/f, hibernation mode in idle state Integrated energy and water flow monitoring High overload capacity (HO) and low overload capacity (LO) for frame size FSE 7.3 A rated current (HO) output, 7.3 A rated current (LO) output and 7.3 A rated current (HO) at 480 V, 7.3 A rated current (LO) at 480 V 4 hp rated power (HO) output, 4 hp rated power (LO) output
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 6SL3210-5BE23-0CV0 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 6SL32105BE230CV0 |
| Country of Origin | CN |
| Currency | USD |
| Display Type | BOP |
| Enclosure Type | IP20/Open |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 472.17 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 3.9900 lb |
| Gross Weight per Pack Metric | 1.81 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504409570 |
| Height | 7.4900 in |
| Height [Metric] | 19.0246 cm |
| Length | 7.8800 in |
| Length [Metric] | 20.0152 cm |
| Returnable | N |
| Series | SINAMICS V20 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantcULus ListedCE CertifiedC-TICK CertifiedKC CertifiedEN 61800-5-1EN 60204-1EN 61800-3WEEE (2012/19/EU) |
| Type | Compact |
| UNSPSC | 39121007 |
| UPC 11 | 88762105780 |
| UPC 12 | 887621057800 |
| Width [Metric] | 20.3200 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 7.3 A |
| Depth | 169 mm |
| Horsepower | 4 hp |
| Voltage Rating | 380 to 480 VAC |
| Width | 8.0000 in |
| Simple installation - push-through and wall mounting - side-by-side possible for both versions |
| Simple commissioning, diagnostics, and service via mobile and local operator panels, as well as a multitude of options |
| Easy handling - parameter readout and cloning without power supply |
| Greater voltage range, advanced cooling, and coated electronics boards add to the robustness of the converter in tough environmental conditions |
| Stable operation under difficult line supply conditions |
| Operating and ambient temperature from -10 to 60 deg C |
| ECO mode for U/f, U2/f, hibernation mode in idle state |
| Integrated energy and water flow monitoring |
| High overload capacity (HO) and low overload capacity (LO) for frame size FSE |
| 7.3 A rated current (HO) output, 7.3 A rated current (LO) output and 7.3 A rated current (HO) at 480 V, 7.3 A rated current (LO) at 480 V |
| 4 hp rated power (HO) output, 4 hp rated power (LO) output |
