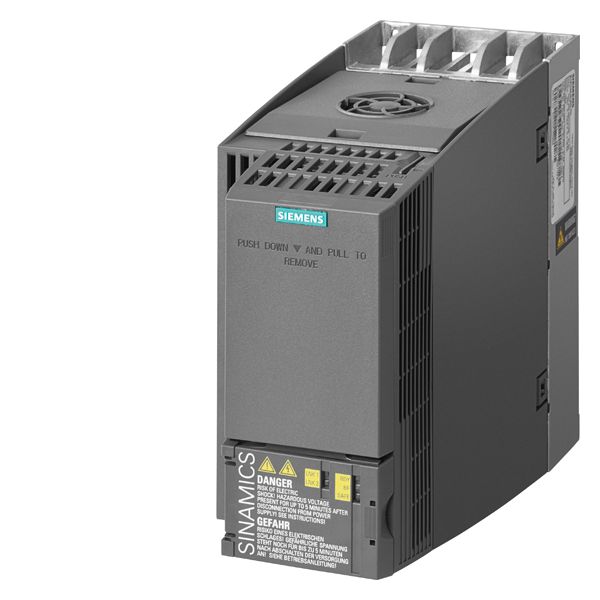

Siemens 6SL32101KE213UF1 SINAMICS G120C
SKU716838
MFGR #6SL32101KE213UF1
Your Cost: $1,320.19/ea
List: SIEMENS 6SL32101KE213UF1 SINAMICS G120C 5.5KW 3AC 480V FSB UNFIL
SIEMENS 6SL32101KE213UF1 SINAMICS G120C 5.5KW 3AC 480V FSB UNFIL
Alternate Catalog Number 6SL3210-1KE21-3UF1 Amperage Rating 8.8 A ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 6SL32101KE213UF1 Country of Origin GB Currency USD Depth 203 mm Enclosure Type IP20/Open EU RoHS Indicator C Gross Volume Per Pack 427.50 Gross Volume UOM in Gross Weight Per Pack 5.9500 lb Gross Weight per Pack Metric 2.70 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504409570 Height 4.6100 in Height [Metric] 11.7094 cm Horsepower 5 hp Length 9.6900 in Length [Metric] 24.6126 cm Manufacturer Siemens Returnable Y Series SINAMICS G120C Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL/cUL ListedCE CertifiedC-TICK CertifiedEMC 2004/108/ECLow Voltage Directive 2006/95/ECWEEE (2012/19/EU) Stock Status NONSTOCK Type Compact UNSPSC 39121007 UPC 11 88762103062 UPC 12 887621030629 Voltage Rating 380 to 480 VAC Width 9.5700 in Width [Metric] 24.3078 cm High torques at low frequency setpoints are possible thanks to energy-efficient, sensorless vector control Due to the certified safe torque off safety function, which is integrated as standard, additional external components can be omitted All standard bus systems such as PROFINET, EtherNet/IP, PROFIBUS and USS/ Modbus RTU are supported Intuitive series commissioning, cloning function using a SINAMICS G120 smart access Module, BOP-2, IOP-2 or SD card Simple and fast software parameter assignment Full integration of the drives into the TIA portal system diagnostics and the use of the TIA portal library concept guarantee simple reusability of the converters, including their parameters and hardware components Integrated input reactor and EMC filter All frame sizes in side-by-side design without power reduction or current derating Without filter 16.5 A rated current (LO) input, 12.8 A rated current (HO) input, 12.5 A rated current (LO) output, 8.8 A rated current (HO) output, 13 A current rated (IN) output, 17.6 A max output current 7.5 hp rated power NEC at 480 V (LO) output, 5 hp rated power NEC at 480 V (HO) output
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 6SL3210-1KE21-3UF1 |
| Amperage Rating | 8.8 A |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 6SL32101KE213UF1 |
| Country of Origin | GB |
| Currency | USD |
| Depth | 203 mm |
| Enclosure Type | IP20/Open |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 427.50 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 5.9500 lb |
| Gross Weight per Pack Metric | 2.70 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504409570 |
| Height | 4.6100 in |
| Height [Metric] | 11.7094 cm |
| Horsepower | 5 hp |
| Length | 9.6900 in |
| Length [Metric] | 24.6126 cm |
| Manufacturer | Siemens |
| Returnable | Y |
| Series | SINAMICS G120C |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL/cUL ListedCE CertifiedC-TICK CertifiedEMC 2004/108/ECLow Voltage Directive 2006/95/ECWEEE (2012/19/EU) |
| Stock Status | NONSTOCK |
| Type | Compact |
| UNSPSC | 39121007 |
| UPC 11 | 88762103062 |
| UPC 12 | 887621030629 |
| Voltage Rating | 380 to 480 VAC |
| Width | 9.5700 in |
| Width [Metric] | 24.3078 cm |
| High torques at low frequency setpoints are possible thanks to energy-efficient, sensorless vector control |
| Due to the certified safe torque off safety function, which is integrated as standard, additional external components can be omitted |
| All standard bus systems such as PROFINET, EtherNet/IP, PROFIBUS and USS/ Modbus RTU are supported |
| Intuitive series commissioning, cloning function using a SINAMICS G120 smart access Module, BOP-2, IOP-2 or SD card |
| Simple and fast software parameter assignment |
| Full integration of the drives into the TIA portal system diagnostics and the use of the TIA portal library concept guarantee simple reusability of the converters, including their parameters and hardware components |
| Integrated input reactor and EMC filter |
| All frame sizes in side-by-side design without power reduction or current derating |
| Without filter |
| 16.5 A rated current (LO) input, 12.8 A rated current (HO) input, 12.5 A rated current (LO) output, 8.8 A rated current (HO) output, 13 A current rated (IN) output, 17.6 A max output current |
| 7.5 hp rated power NEC at 480 V (LO) output, 5 hp rated power NEC at 480 V (HO) output |
