Siemens

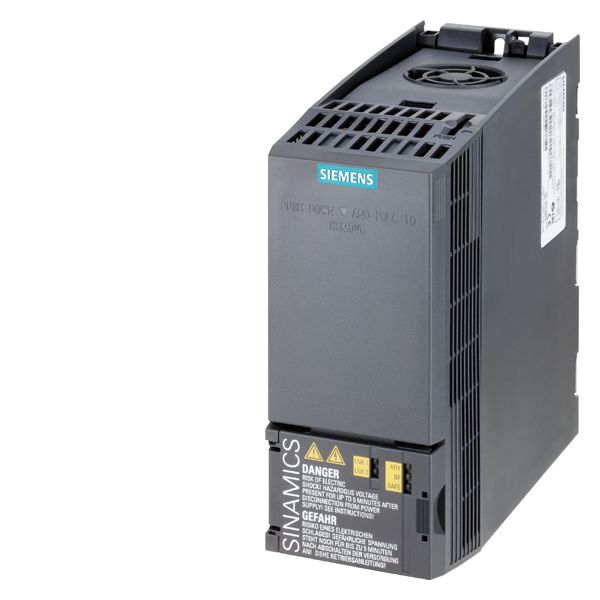

Siemens 6SL32101KE143UF2 SINAMICS G120C
Siemens
Siemens 6SL32101KE143UF2 SINAMICS G120C
SKU967433
MFGR #6SL32101KE143UF2
Your Cost: $828.16/ea
List: SINAMICS G120C RATED POWER 1,5KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATEDFIELDBUS PROFINET-PN PROTECTION IP20/ UL OPEN TYPE SIZE FSAA 173X73X178(HXWXD) EXTERNAL 24V
SINAMICS G120C RATED POWER 1,5KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATEDFIELDBUS PROFINET-PN PROTECTION IP20/ UL OPEN TYPE SIZE FSAA 173X73X178(HXWXD) EXTERNAL 24V
Alternate Catalog Number 6SL3210-1KE14-3UF2 Amperage Rating 3.1 to 4.1 A/4.5 to 5.5 A/6.2 A ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 6SL32101KE143UF2 Country of Origin GB Currency USD Depth 178 mm Display Type BOP Enclosure Type IP20 EU RoHS Indicator C Gross Volume Per Pack 251.48 Gross Volume UOM in Gross Weight Per Pack 2.6500 lb Gross Weight per Pack Metric 1.20 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504409540 Height 3.5400 in Height [Metric] 8.9916 cm Horsepower 1-1/2 hp, 2 hp Length 9.2500 in Length [Metric] 23.4950 cm Manufacturer Siemens Mounting Type Side-by-Side Returnable Y Series G120C Standards CE CertifiedcUL ListedUL ListedC-Tick (RCM)EMC 2004/108/EC/2006/95/EC Stock Status NORMALLY STOCKED Type 3-Phase Unfiltered UNSPSC 39121007 UPC 11 80476619390 UPC 12 804766193903 Voltage Rating 380 to 480 VAC Width 7.6800 in Width [Metric] 19.5072 cm High power density, smaller envelope dimensions Side by side mounting without derating Compact design that requires little space in the cabinet and reduces cost Optimized commissioning Easy configuration Intuitive serial commissioning, which reduces cost and saves time Simple and fast software settings Simple handling during commissioning and operation Uniform, end to end operating concept Engineering efficiency 3.1 to 4.1 A output, 4.5 to 5.5 A input, 6.2 a maximum output
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 6SL3210-1KE14-3UF2 |
| Amperage Rating | 3.1 to 4.1 A/4.5 to 5.5 A/6.2 A |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 6SL32101KE143UF2 |
| Country of Origin | GB |
| Currency | USD |
| Depth | 178 mm |
| Display Type | BOP |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 251.48 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 2.6500 lb |
| Gross Weight per Pack Metric | 1.20 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504409540 |
| Height | 3.5400 in |
| Height [Metric] | 8.9916 cm |
| Horsepower | 1-1/2 hp, 2 hp |
| Length | 9.2500 in |
| Length [Metric] | 23.4950 cm |
| Manufacturer | Siemens |
| Mounting Type | Side-by-Side |
| Returnable | Y |
| Series | G120C |
| Standards | CE CertifiedcUL ListedUL ListedC-Tick (RCM)EMC 2004/108/EC/2006/95/EC |
| Stock Status | NORMALLY STOCKED |
| Type | 3-Phase Unfiltered |
| UNSPSC | 39121007 |
| UPC 11 | 80476619390 |
| UPC 12 | 804766193903 |
| Voltage Rating | 380 to 480 VAC |
| Width | 7.6800 in |
| Width [Metric] | 19.5072 cm |
| High power density, smaller envelope dimensions |
| Side by side mounting without derating |
| Compact design that requires little space in the cabinet and reduces cost |
| Optimized commissioning |
| Easy configuration |
| Intuitive serial commissioning, which reduces cost and saves time |
| Simple and fast software settings |
| Simple handling during commissioning and operation |
| Uniform, end to end operating concept |
| Engineering efficiency |
| 3.1 to 4.1 A output, 4.5 to 5.5 A input, 6.2 a maximum output |
