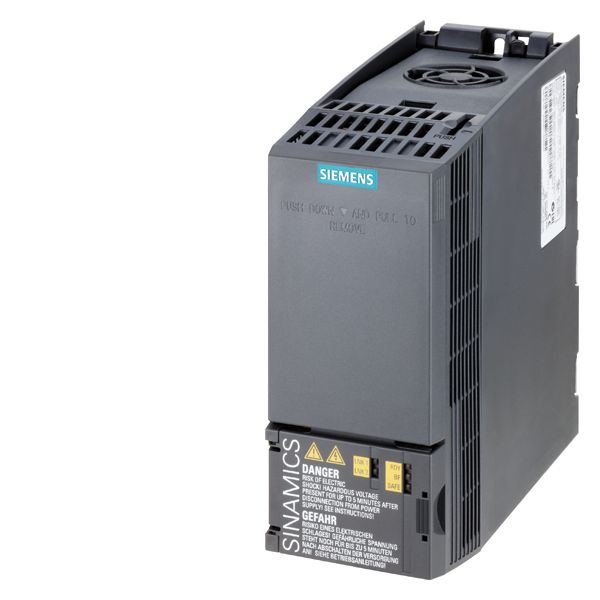

Siemens 6SL32101KE123AF2 SINAMICS G120C
AC Drives
1005836
MFG #: 6SL32101KE123AF2
Siemens
789.80000
/ ea
SINAMICS G120C RATED POWER 0,75KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS PROFINET-PN PROTECTION IP20/ UL OPEN TYPE SIZE FSAA 173X73X178(HXWXD) EXTERNAL 24V
- 3D Rendering URL - getCadDocument?articleNumber=6SL3210-1KE12-3AF2&fileType=3DPDF(3D Rendering URL)
- Catalog URL - Siemens_6SL3210_1KE11_8AB2_Catalog.pdf(Catalog URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=6SL3210-1KE12-3AF2&language=en(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- Features
| High power density, smaller envelope dimensions |
| Side by side mounting without derating |
| Compact design that requires little space in the cabinet and reduces cost |
| Optimized commissioning |
| Easy configuration |
| Intuitive serial commissioning, which reduces cost and saves time |
| Simple and fast software settings |
| Simple handling during commissioning and operation |
| Uniform, end to end operating concept |
| Engineering efficiency |
| 1.7 to 2.2 A output, 2.5 to 2.9 A input, 3.4 maximum output |
