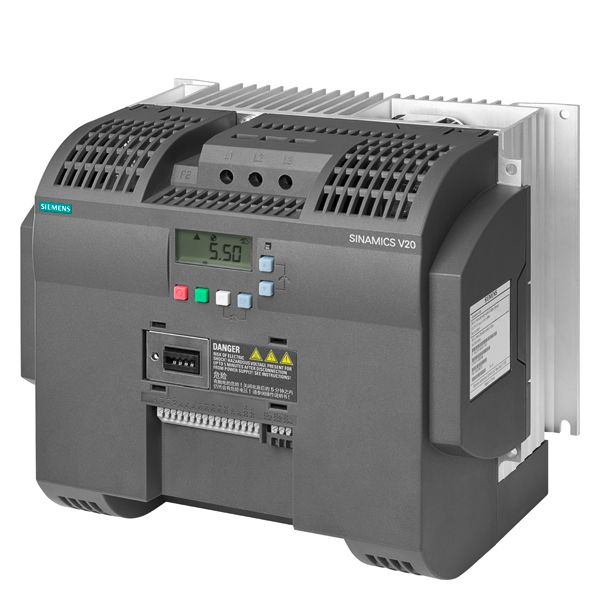

Siemens 6SL3210-5BE31-5UV0 Sinamics V20 Variable Frequency Drive, 380 to 480/400 VAC, 31 A, 20 hp, 240 mm W
Custom_Product_Images_Illustration
Siemens
Siemens 6SL3210-5BE31-5UV0 Sinamics V20 Variable Frequency Drive, 380 to 480/400 VAC, 31 A, 20 hp, 240 mm W
SKU770182
MFGR #6SL32105BE315UV0
Your Cost: $1,815.84/ea
List: SIEMENS 6SL32105BE315UV0 SINAMICS V20 3AC400V 15KW UNFILTERED
SIEMENS 6SL32105BE315UV0 SINAMICS V20 3AC400V 15KW UNFILTERED
Alternate Catalog Number 6SL3210-5BE31-5UV0 Amperage Rating 31 A ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 6SL32105BE315UV0 Country of Origin CN Currency USD Depth 173 mm Display Type Digital EU RoHS Indicator C Gross Volume Per Pack 1110.87 Gross Volume UOM in Gross Weight Per Pack 8.7700 lb Gross Weight per Pack Metric 3.98 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504909650 Height 11.6200 in Height [Metric] 29.5148 cm Horsepower 20 hp Length 8.8600 in Length [Metric] 22.5044 cm Manufacturer Siemens Mounting Type Through Hole Returnable N Series SINAMICS V20 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCE CertifiedUL/cUL Listed Stock Status NONSTOCK UNSPSC 39121007 UPC 11 88762105773 UPC 12 887621057732 Voltage Rating 380 to 480/400 VAC Width 10.7900 in Width [Metric] 27.4066 cm 47 to 63 Hz line frequency 15 kW power rating 2 kHz pulse frequency 0 to 550 Hz output frequency 0.72 power factor 0.98 efficiency External fan cooling 1000 m installation altitude -10 to 60 deg C operating 95% maximum operation relative humidity 95% maximum operation relative humidity USS, modbus RTU communication 110% rated output current for 60 sec, 300 sec cycle time low overload capability 150% rated output current for 60 sec, 300 sec cycle time high overload capability FSD size 25 m (shielded), 50 m (unshielded) cable length Four standard digital inputs One digital output as relay changeover contact and one transistor
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 6SL3210-5BE31-5UV0 |
| Amperage Rating | 31 A |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 6SL32105BE315UV0 |
| Country of Origin | CN |
| Currency | USD |
| Depth | 173 mm |
| Display Type | Digital |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 1110.87 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 8.7700 lb |
| Gross Weight per Pack Metric | 3.98 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504909650 |
| Height | 11.6200 in |
| Height [Metric] | 29.5148 cm |
| Horsepower | 20 hp |
| Length | 8.8600 in |
| Length [Metric] | 22.5044 cm |
| Manufacturer | Siemens |
| Mounting Type | Through Hole |
| Returnable | N |
| Series | SINAMICS V20 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCE CertifiedUL/cUL Listed |
| Stock Status | NONSTOCK |
| UNSPSC | 39121007 |
| UPC 11 | 88762105773 |
| UPC 12 | 887621057732 |
| Voltage Rating | 380 to 480/400 VAC |
| Width | 10.7900 in |
| Width [Metric] | 27.4066 cm |
| 47 to 63 Hz line frequency |
| 15 kW power rating |
| 2 kHz pulse frequency |
| 0 to 550 Hz output frequency |
| 0.72 power factor |
| 0.98 efficiency |
| External fan cooling |
| 1000 m installation altitude |
| -10 to 60 deg C operating |
| 95% maximum operation relative humidity |
| 95% maximum operation relative humidity |
| USS, modbus RTU communication |
| 110% rated output current for 60 sec, 300 sec cycle time low overload capability |
| 150% rated output current for 60 sec, 300 sec cycle time high overload capability |
| FSD size |
| 25 m (shielded), 50 m (unshielded) cable length |
| Four standard digital inputs |
| One digital output as relay changeover contact and one transistor |
