Siemens 6SE64402UD388FA1 DR AC MM440 48
SKU182920
MFGR #6SE64402UD388FA1
Your Cost: $46,832.05/ea

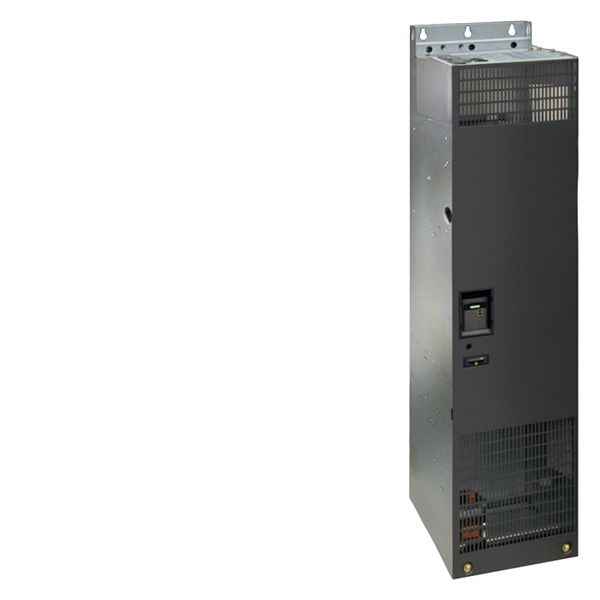

SIEMENS 6SE64402UD388FA1 480V AC DRIVE
SIEMENS 6SE64402UD388FA1 480V AC DRIVE
Alternate Catalog Number 6SE6440-2UD38-8FA1 Amperage Rating 178 A ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 6SE64402UD388FA1 Country of Origin DE Currency USD Depth 356 mm Enclosure Type IP20/Open EU RoHS Indicator C Gross Volume Per Pack 51873.41 Gross Volume UOM in Gross Weight Per Pack 242.5090 lb Gross Weight per Pack Metric 110.00 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504404000 Height 69.6900 in Height [Metric] 177.0126 cm Horsepower 125 hp Length 31.5000 in Length [Metric] 80.0100 cm Manufacturer Siemens Returnable N Series MICROMASTER 440 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantcULus ListedCE CertifiedEN 60 204EN 61 800-5-1EN 61 800-3WEEE (2012/19/EU) Stock Status NONSTOCK UNSPSC 39121007 UPC 11 78308766927 UPC 12 783087669277 Voltage Rating 380 to 480 VAC Width 23.6300 in Width [Metric] 60.0202 cm The operator panels and the modules can be easiliy exchanged Easy, guided start up Modular construction allows maximum configuration flexibility 6 programmable isolated digital inputs 2 scaleable analog inputs (0 to 10 V, 0 to 20 mA) can also be used as a 7th/8th digital input 2 programmable analog outputs (0 to 20 mA) 3 programmable relay outputs - 30 VDC/5 A resistive load, 250 VAC/2 A inductive load Low noise motor operation thanks to high pulse frequencies, adjustable (observe derating if necessary) Protection for motor and inverter Without filter, AOP/BOP 200 A rated current (LO) input, 169 A rated current (HO) input and 205 A rated current (LO) output, 178 A rated current (HO) output 150 hp rated power (LO) output, 125 hp rated power (HO) output
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 6SE6440-2UD38-8FA1 |
| Amperage Rating | 178 A |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 6SE64402UD388FA1 |
| Country of Origin | DE |
| Currency | USD |
| Depth | 356 mm |
| Enclosure Type | IP20/Open |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 51873.41 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 242.5090 lb |
| Gross Weight per Pack Metric | 110.00 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504404000 |
| Height | 69.6900 in |
| Height [Metric] | 177.0126 cm |
| Horsepower | 125 hp |
| Length | 31.5000 in |
| Length [Metric] | 80.0100 cm |
| Manufacturer | Siemens |
| Returnable | N |
| Series | MICROMASTER 440 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantcULus ListedCE CertifiedEN 60 204EN 61 800-5-1EN 61 800-3WEEE (2012/19/EU) |
| Stock Status | NONSTOCK |
| UNSPSC | 39121007 |
| UPC 11 | 78308766927 |
| UPC 12 | 783087669277 |
| Voltage Rating | 380 to 480 VAC |
| Width | 23.6300 in |
| Width [Metric] | 60.0202 cm |
| The operator panels and the modules can be easiliy exchanged |
| Easy, guided start up |
| Modular construction allows maximum configuration flexibility |
| 6 programmable isolated digital inputs |
| 2 scaleable analog inputs (0 to 10 V, 0 to 20 mA) can also be used as a 7th/8th digital input |
| 2 programmable analog outputs (0 to 20 mA) |
| 3 programmable relay outputs - 30 VDC/5 A resistive load, 250 VAC/2 A inductive load |
| Low noise motor operation thanks to high pulse frequencies, adjustable (observe derating if necessary) |
| Protection for motor and inverter |
| Without filter, AOP/BOP |
| 200 A rated current (LO) input, 169 A rated current (HO) input and 205 A rated current (LO) output, 178 A rated current (HO) output |
| 150 hp rated power (LO) output, 125 hp rated power (HO) output |
