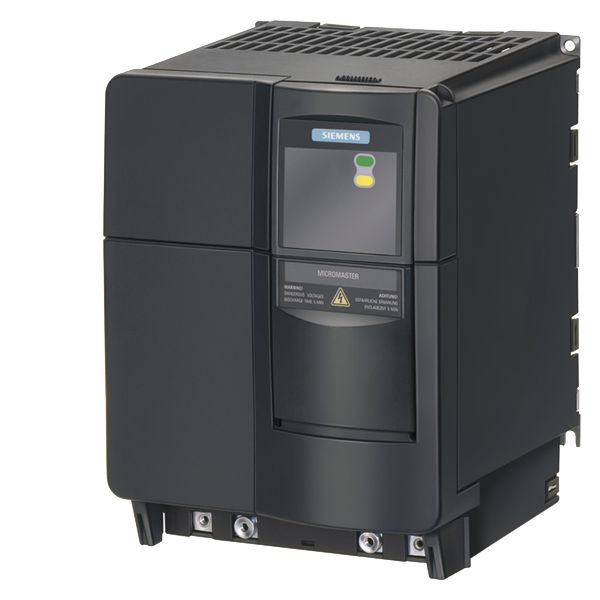

Siemens 6SE64402UC240CA1 Inverter Drive, 240 VAC, 17.5 A, 5 hp, 245 mm H x 185 mm W
Custom_Product_Images_Illustration
Siemens 6SE64402UC240CA1 Inverter Drive, 240 VAC, 17.5 A, 5 hp, 245 mm H x 185 mm W
SKU1139004
MFGR #6SE64402UC240CA1
Your Cost: $3,864.13/ea
SIEMENS 6SE64402UC240CA1 230V AC DRIVE
SIEMENS 6SE64402UC240CA1 230V AC DRIVE
Alternate Catalog Number 6SE6440-2UC24-0CA1 ARRA Compliant C Buy American Compliant C Catalog Number 6SE64402UC240CA1 Country of Origin GB Currency USD Depth 195 mm Enclosure Type IP20 EU RoHS Indicator C Gross Volume Per Pack 1734.20 Gross Volume UOM in Gross Weight Per Pack 12.1280 lb Gross Weight per Pack Metric 5.50 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504404000 Height [Metric] 29.0068 cm Length 13.7800 in Length [Metric] 35.0012 cm Mounting Type Wall Returnable N Series Micromaster 440 Standards RoHS Compliant UNSPSC 39121007 UPC 11 78308763531 UPC 12 783087635319 Width [Metric] 27.9908 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 17.5 A Height 11.4200 in Horsepower 5 hp Voltage Rating 240 VAC Width 11.0200 in -10 to 50 deg C ambient temperature 5.5 kW squared/4 kW constant torque power 150 % output current for 60 s, followed by 100 % output current for 240 s in a 300 s cycle time high overload 3 phase AC input, 3 phase AC output 200 - 240 V 10/-10 % line voltage 19.7 A rated input current, 22 A/17.5 A rated output current 47 - 63 Hz line frequency, 16000 Hz pulse frequency Fan cooling 10 sq-mm motor end conductor cross-section 6 standard digital inputs, 2 analog input 3 relay output, 2 analog output and 1 PTC/ KTY interface 0.95 power factor 0.96 efficiency Without filter Micromaster 440 FSC frame size Wall mount in clean environment or cubicle mount Without AOP/BOP
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 6SE6440-2UC24-0CA1 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 6SE64402UC240CA1 |
| Country of Origin | GB |
| Currency | USD |
| Depth | 195 mm |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 1734.20 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 12.1280 lb |
| Gross Weight per Pack Metric | 5.50 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504404000 |
| Height [Metric] | 29.0068 cm |
| Length | 13.7800 in |
| Length [Metric] | 35.0012 cm |
| Mounting Type | Wall |
| Returnable | N |
| Series | Micromaster 440 |
| Standards | RoHS Compliant |
| UNSPSC | 39121007 |
| UPC 11 | 78308763531 |
| UPC 12 | 783087635319 |
| Width [Metric] | 27.9908 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 17.5 A |
| Height | 11.4200 in |
| Horsepower | 5 hp |
| Voltage Rating | 240 VAC |
| Width | 11.0200 in |
| -10 to 50 deg C ambient temperature |
| 5.5 kW squared/4 kW constant torque power |
| 150 % output current for 60 s, followed by 100 % output current for 240 s in a 300 s cycle time high overload |
| 3 phase AC input, 3 phase AC output |
| 200 - 240 V 10/-10 % line voltage |
| 19.7 A rated input current, 22 A/17.5 A rated output current |
| 47 - 63 Hz line frequency, 16000 Hz pulse frequency |
| Fan cooling |
| 10 sq-mm motor end conductor cross-section |
| 6 standard digital inputs, 2 analog input |
| 3 relay output, 2 analog output and 1 PTC/ KTY interface |
| 0.95 power factor |
| 0.96 efficiency |
| Without filter Micromaster 440 |
| FSC frame size |
| Wall mount in clean environment or cubicle mount |
| Without AOP/BOP |
