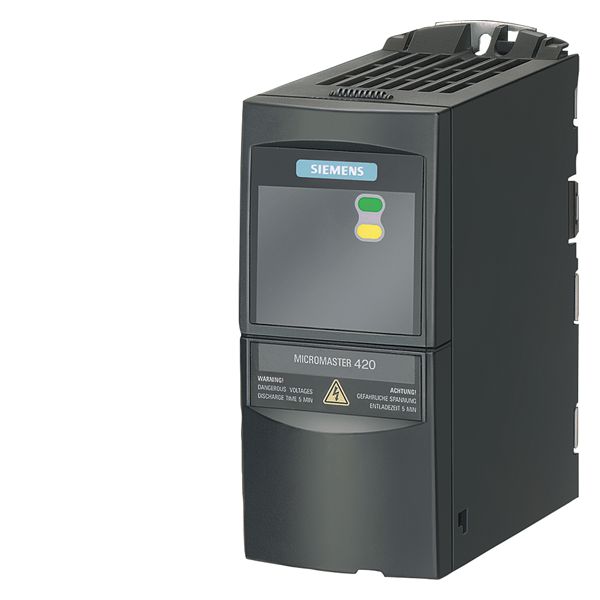

Siemens 6SE64402AB175AA1 Inverter Drive, 240 VAC, 3.9 A, 1 hp, 173 mm H x 73 mm W
AC Drives
313570
MFG #: 6SE64402AB175AA1
Siemens
1777.17000
/ ea
SIEMENS 6SE64402AB175AA1 230V AC DRIVE
- 3D Rendering URL - getCadDocument?articleNumber=6SE6440-2AB17-5AA1&fileType=3DPDF(3D Rendering URL)
- Catalog URL - Siemens_6SE6420_2AB12_5AA1_Catalog.pdf(Catalog URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=6SE64402AB175AA1&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=6SE6440-2AB17-5AA1&language=en(Spec Sheet URL)
- Spec Sheet URL - 10991_QYBCWE8UH1DPJ3A2.pdf(Spec Sheet URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- User Manual URL - man(User Manual URL)
- Features
| -10 to 50 deg C ambient |
| 0.75 kW squared/constant torque power |
| 150% output current for 60 sec, followed by 100% output current for 240 sec in a 300 sec cycle time high overload |
| 1-phase AC input, 3-phase AC output |
| 200 to 240 V 10/-10 % line voltage |
| 8.2 A rated input current, 3.9 A rated output current |
| 47 to 63 Hz line frequency, 16000 Hz pulse frequency |
| Fan cooling |
| 2.5 sq-mm motor end conductor cross-section |
| 6 standard digital inputs, 2 analog input |
| 3 relay output, 2 analog output and 1 PTC/ KTY interface |
| 0.95 power factor |
| 0.96 efficiency |
| With built in class A filter Micromaster 440 |
| FSA frame size |
| Wall mount in clean environment or cubicle mount |
| Without AOP/BOP |
