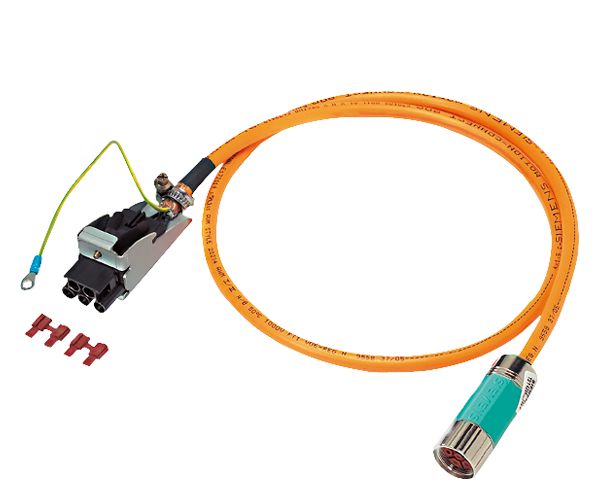

Siemens 6FX80025CS011AF0 POWER CABLE,PR
SKU660891
MFGR #6FX80025CS011AF0
Your Cost: $376.50/ea
List: POWER CABLE, PREASSEMBLED (1FT/1FK/1PH TO SINAMICS) 4X1.5 C, CONNECTOR SIZE 1/1.5 MM2 TRAILING TYPE, UL/CSA DESINA MOTION-CONNECT 800, DMAX = 10.4 MM, LENGTH (M)= 0 + 0 + 5 + 0
POWER CABLE, PREASSEMBLED (1FT/1FK/1PH TO SINAMICS) 4X1.5 C, CONNECTOR SIZE 1/1.5 MM2 TRAILING TYPE, UL/CSA DESINA MOTION-CONNECT 800, DMAX = 10.4 MM, LENGTH (M)= 0 + 0 + 5 + 0
Alternate Catalog Number 6FX8002-5CS01-1AF0 ARRA Compliant C Buy American Compliant C Cable Material Polyurethane Catalog Number 6FX80025CS011AF0 Conductor Size 1.5 Conductor Type Bare Copper Country of Origin SK Currency USD End Style M23 Full Thread Connector x SINAMICS S120 Booksize MoMo Connector EU RoHS Indicator C Gross Volume Per Pack 351.42 Gross Volume UOM in Gross Weight Per Pack 2.3810 lb Gross Weight per Pack Metric 1.08 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8544429090 Height 1.7500 in Height [Metric] 4.4450 cm IEC Rating IEC 60754-1 Insulation Material CFC Jacket Color Orange Jacket Material PUR Length 15.7500 in Length [Metric] 40.0050 cm Number Of Conductors 4 Outside Diameter 9.5 Returnable N Standards UL 758CSA C22.2-N.210.2-M90EN 60811-2-1EN 60332-1-1 to 1-3IEC 60754-1DIN VDE 0472-815VDE 0282 Part 10RoHS Compliant Temperature Rating -58 to 176 Type Pre-Assembled UNSPSC 26121629 UPC 11 66264305733 UPC 12 662643057331 Voltage Rating 600/1000 VAC Width 12.7500 in Width [Metric] 32.3850 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Cable Length 5 m Connector Size M23 Connector Type Full Thread x SINAMICS S120 Booksize MoMo Robust and user friendly through the use of pre-assembled cables with robust IP67 plugs in metal housing and a user friendly locking mechanism (SPEED-CONNECT) Superior quality and system responsibility due to consistent quality management and system tested original components For highly dynamic requirements also with longer traversing paths Without brake cores
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 6FX8002-5CS01-1AF0 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Cable Material | Polyurethane |
| Catalog Number | 6FX80025CS011AF0 |
| Conductor Size | 1.5 |
| Conductor Type | Bare Copper |
| Country of Origin | SK |
| Currency | USD |
| End Style | M23 Full Thread Connector x SINAMICS S120 Booksize MoMo Connector |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 351.42 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 2.3810 lb |
| Gross Weight per Pack Metric | 1.08 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8544429090 |
| Height | 1.7500 in |
| Height [Metric] | 4.4450 cm |
| IEC Rating | IEC 60754-1 |
| Insulation Material | CFC |
| Jacket Color | Orange |
| Jacket Material | PUR |
| Length | 15.7500 in |
| Length [Metric] | 40.0050 cm |
| Number Of Conductors | 4 |
| Outside Diameter | 9.5 |
| Returnable | N |
| Standards | UL 758CSA C22.2-N.210.2-M90EN 60811-2-1EN 60332-1-1 to 1-3IEC 60754-1DIN VDE 0472-815VDE 0282 Part 10RoHS Compliant |
| Temperature Rating | -58 to 176 |
| Type | Pre-Assembled |
| UNSPSC | 26121629 |
| UPC 11 | 66264305733 |
| UPC 12 | 662643057331 |
| Voltage Rating | 600/1000 VAC |
| Width | 12.7500 in |
| Width [Metric] | 32.3850 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Cable Length | 5 m |
| Connector Size | M23 |
| Connector Type | Full Thread x SINAMICS S120 Booksize MoMo |
| Robust and user friendly through the use of pre-assembled cables with robust IP67 plugs in metal housing and a user friendly locking mechanism (SPEED-CONNECT) |
| Superior quality and system responsibility due to consistent quality management and system tested original components |
| For highly dynamic requirements also with longer traversing paths |
| Without brake cores |
