Siemens

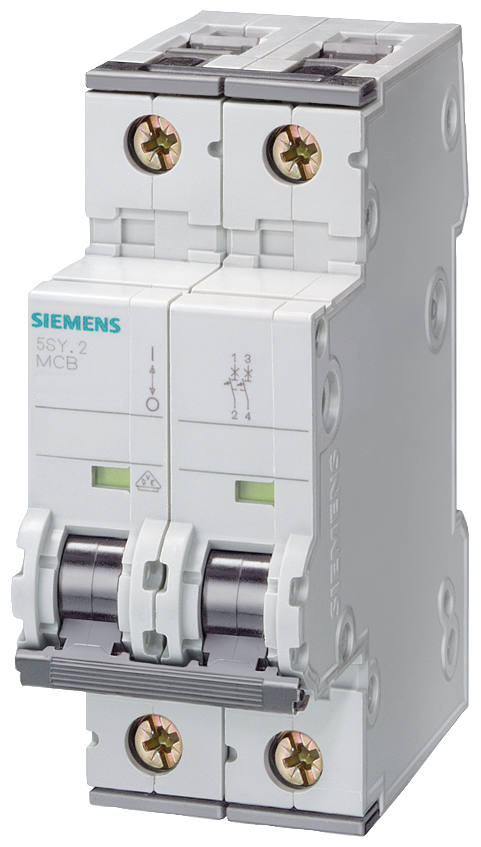

Siemens 5SY4240-8 5SY Miniature Circuit Breaker, 400 VAC, 40 A, 5 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Siemens
Siemens 5SY4240-8 5SY Miniature Circuit Breaker, 400 VAC, 40 A, 5 kA Interrupt, 2 Poles, Thermal Magnetic Trip
SKU660186
MFGR #5SY4240-8
Your Cost: $77.05/ea
List: SIEMENS 5SY4240-8 SUPPLEMENTARY PROTECTOR 2P 40A CURVE D
SIEMENS 5SY4240-8 SUPPLEMENTARY PROTECTOR 2P 40A CURVE D
Actuator Type Handle Alternate Catalog Number 5SY4240-8 Application Circuit Protection ARRA Compliant C Buy American Compliant C Catalog Number 5SY4240-8 Connection Type Screw Country of Origin DE Currency USD Dimensions 90 mm H x 36 mm W x 76 mm D Enclosure Type IP20/IP40 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 18.88 Gross Volume UOM in Gross Weight Per Pack 0.7080 lb Gross Weight per Pack Metric 0.32 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 3.3100 in Height [Metric] 8.4074 cm Length 3.6220 in Length [Metric] 9.1999 cm Mounting Type DIN Rail Number Of Poles 2 Returnable N Series 5SY Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 No. 235IEC/EN 60 898-1IEC/EN 60 947-2CE MarkedCCC MarkedIMQ CertifiedUL 1077 Sub Brand SIEMENS Temperature Rating -25 to 55 °C Type Supplementary Protectors UNSPSC 39121601 UPC 11 75455487606 UPC 12 754554876061 Width 1.5750 in Width [Metric] 4.0005 cm Wire Size 14 to 4 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 40 A Interrupt Rating 5 kA Trip Type Class D/Thermal Magnetic Voltage Rating 400 VAC Circuit Protection 5SY Supplementary Protectors Clear and visible conductor connection in front of the rear busbar facilitates controls The conductor is easily inserted into the terminal thanks to the large and easily accessible wiring space Double terminal chambers permit accommodation of two wires of different cross-sections Quick and easy manual removal of miniature circuit breakers from the busbar assembly, for example if connections need to be changed Time saving replacement of parts as busbars no longer need to be freed from adjacent devices Captive metal brackets on the additional components ensure the quick and easy mounting of devices on the miniature circuit breakers without the need for tools Thermal trip point - 1.13 to 1.45 protector rating Class D trip
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Handle |
| Alternate Catalog Number | 5SY4240-8 |
| Application | Circuit Protection |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 5SY4240-8 |
| Connection Type | Screw |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 90 mm H x 36 mm W x 76 mm D |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 18.88 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.7080 lb |
| Gross Weight per Pack Metric | 0.32 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 3.3100 in |
| Height [Metric] | 8.4074 cm |
| Length | 3.6220 in |
| Length [Metric] | 9.1999 cm |
| Mounting Type | DIN Rail |
| Number Of Poles | 2 |
| Returnable | N |
| Series | 5SY |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 No. 235IEC/EN 60 898-1IEC/EN 60 947-2CE MarkedCCC MarkedIMQ CertifiedUL 1077 |
| Sub Brand | SIEMENS |
| Temperature Rating | -25 to 55 °C |
| Type | Supplementary Protectors |
| UNSPSC | 39121601 |
| UPC 11 | 75455487606 |
| UPC 12 | 754554876061 |
| Width | 1.5750 in |
| Width [Metric] | 4.0005 cm |
| Wire Size | 14 to 4 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 40 A |
| Interrupt Rating | 5 kA |
| Trip Type | Class D/Thermal Magnetic |
| Voltage Rating | 400 VAC |
| Circuit Protection |
| 5SY Supplementary Protectors |
| Clear and visible conductor connection in front of the rear busbar facilitates controls |
| The conductor is easily inserted into the terminal thanks to the large and easily accessible wiring space |
| Double terminal chambers permit accommodation of two wires of different cross-sections |
| Quick and easy manual removal of miniature circuit breakers from the busbar assembly, for example if connections need to be changed |
| Time saving replacement of parts as busbars no longer need to be freed from adjacent devices |
| Captive metal brackets on the additional components ensure the quick and easy mounting of devices on the miniature circuit breakers without the need for tools |
| Thermal trip point - 1.13 to 1.45 protector rating |
| Class D trip |
