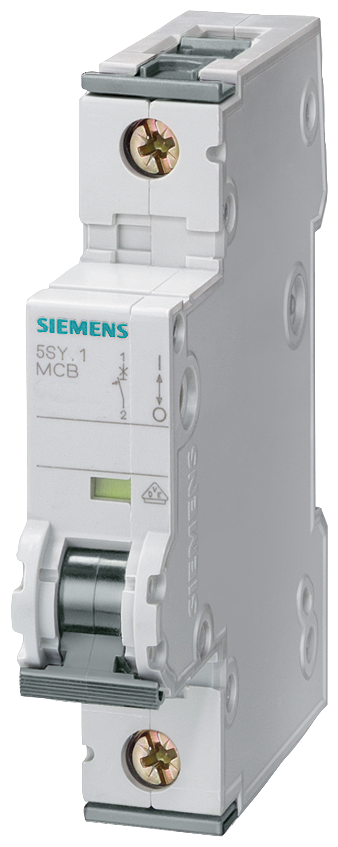

Siemens 5SY4132-8 5SY Miniature Circuit Breaker, 230/400 VAC, 32 A, 7.5 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Siemens 5SY4132-8 5SY Miniature Circuit Breaker, 230/400 VAC, 32 A, 7.5 kA Interrupt, 1 Pole, Thermal Magnetic Trip
SKU485292
MFGR #5SY4132-8
Your Cost: $38.54/ea
List: SIEMENS 5SY4132-8 SUPPLEMENTARY PROTECTOR,1P,32A,CURVE D
SIEMENS 5SY4132-8 SUPPLEMENTARY PROTECTOR,1P,32A,CURVE D
Actuator Type Handle Alternate Catalog Number 5SY4132-8 Application Circuit Protection ARRA Compliant C Buy American Compliant C Catalog Number 5SY4132-8 Connection Type Screw Country of Origin DE Currency USD Dimensions 90 mm H x 18 mm W x 76 mm D Enclosure Type IP20/IP40 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 9.93 Gross Volume UOM in Gross Weight Per Pack 0.3680 lb Gross Weight per Pack Metric 0.17 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 3.2700 in Height [Metric] 8.3058 cm Length 3.6600 in Length [Metric] 9.2964 cm Mounting Type DIN Rail Number Of Poles 1 Returnable Y Series 5SY Standards CSA C22.2 No. 235IEC/EN 60898-1/IEC/EN 60947-2CE CertifiedCCC CertifiedIMQ CertifiedUL 1077 Sub Brand SIEMENS Temperature Rating -25 to 55 °C Trip Range 1.13 to 1.45 A Type Supplementary Protectors UNSPSC 39121601 UPC 11 75455487555 UPC 12 754554875552 Width 0.8300 in Width [Metric] 2.1082 cm Wire Size 14 to 4 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 32 A Interrupt Rating 7.5 kA Trip Type Thermal Magnetic Voltage Rating 230/400 VAC Circuit Protection 5SY Supplementary Protectors Clear and visible conductor connection in front of the rear busbar facilitates controls The conductor is easily inserted into the terminal thanks to the large and easily accessible wiring space Double terminal chambers permit accommodation of two wires of different cross-sections Quick and easy manual removal of miniature circuit breakers from the busbar assembly, for example if connections need to be changed Time-saving replacement of parts as busbars no longer need to be freed from adjacent devices For the quick and easy mounting of auxiliary switches and fault signal contacts Captive metal brackets on the additional components ensure the quick and easy mounting of devices on the miniature circuit breakers without the need for tools Class D trip
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Handle |
| Alternate Catalog Number | 5SY4132-8 |
| Application | Circuit Protection |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 5SY4132-8 |
| Connection Type | Screw |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 90 mm H x 18 mm W x 76 mm D |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 9.93 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.3680 lb |
| Gross Weight per Pack Metric | 0.17 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 3.2700 in |
| Height [Metric] | 8.3058 cm |
| Length | 3.6600 in |
| Length [Metric] | 9.2964 cm |
| Mounting Type | DIN Rail |
| Number Of Poles | 1 |
| Returnable | Y |
| Series | 5SY |
| Standards | CSA C22.2 No. 235IEC/EN 60898-1/IEC/EN 60947-2CE CertifiedCCC CertifiedIMQ CertifiedUL 1077 |
| Sub Brand | SIEMENS |
| Temperature Rating | -25 to 55 °C |
| Trip Range | 1.13 to 1.45 A |
| Type | Supplementary Protectors |
| UNSPSC | 39121601 |
| UPC 11 | 75455487555 |
| UPC 12 | 754554875552 |
| Width | 0.8300 in |
| Width [Metric] | 2.1082 cm |
| Wire Size | 14 to 4 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 32 A |
| Interrupt Rating | 7.5 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 230/400 VAC |
| Circuit Protection |
| 5SY Supplementary Protectors |
| Clear and visible conductor connection in front of the rear busbar facilitates controls |
| The conductor is easily inserted into the terminal thanks to the large and easily accessible wiring space |
| Double terminal chambers permit accommodation of two wires of different cross-sections |
| Quick and easy manual removal of miniature circuit breakers from the busbar assembly, for example if connections need to be changed |
| Time-saving replacement of parts as busbars no longer need to be freed from adjacent devices |
| For the quick and easy mounting of auxiliary switches and fault signal contacts |
| Captive metal brackets on the additional components ensure the quick and easy mounting of devices on the miniature circuit breakers without the need for tools |
| Class D trip |
