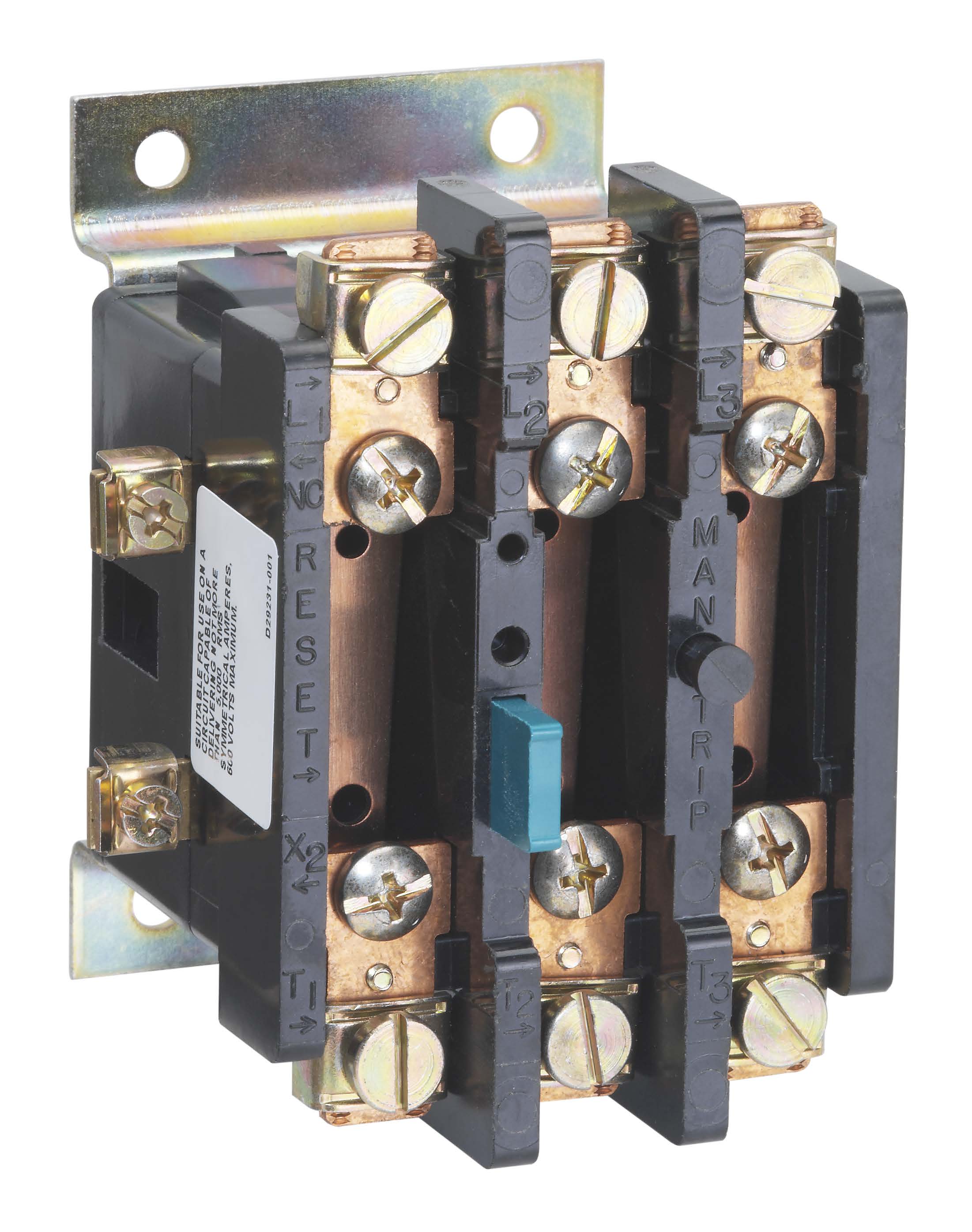

Siemens 48DC38AA4 Overload Relay, 30 A, 1NC Contact Form

Custom_Product_Images_Illustration

SKU88318

MFGR #48DC38AA4

Your Cost: $220.00/ea

SIEMENS 48DC38AA4 OVERLOAD RELAY

: Alternate Catalog Number
US2:48DC38AA4
Amperage Rating
30 A
Application
Single phase and polyphase motors
ARRA Compliant
C
Brand
Siemens
Buy American Compliant
C
Catalog Number
48DC38AA4
Contact Configuration
NC
Contact Form
1NC
Contact Rating
30 A at 600 VAC
Country of Origin
MX
Currency
USD
Dimensions
6.2 in L x 4.3 in W x 5.1 in H
EU RoHS Indicator
C
Full Load Current Range
Heaters
Gross Volume Per Pack
244.69
Gross Volume UOM
in
Gross Weight Per Pack
1.0500 lb
Gross Weight per Pack Metric
0.48
Gross Weight UOM Metric
kg
Harmonization Tariff Schedule Code
8536490080
Height
4.3500 in
Height [Metric]
11.0490 cm
Length
7.5000 in
Length [Metric]
19.0500 cm
Manufacturer
Siemens
Maximum Motor Voltage
600v
Maximum Switching Voltage
600v
Mounting
DIRECT
Mounting Type
Surface
Number Of Poles
3
Operating Temperature
-25 to 60 C
Reset Type
Auto/Manual
Returnable
Y
Standard
cUL, CSA
Standards
ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedcUL Listed
Stock Status
NONSTOCK
Sub Brand
Class 48
Temperature Rating
-25 to 60 °C
Temperature Trip Range
-25 to 60 C
Trip Type
mechanical
Type
3-Phase Bi-Metal Open
UNSPSC
39122330
UPC 11
78308708404
UPC 12
783087084049
Width
7.5000 in
Width [Metric]
19.0500 cm
: Brochure
Catalog
Seller Home Page
Spec Sheet
: Single phase and polyphase motors
: separate heaters

Bi-metallic trip

Ambient compensated

Separate heaters

Mechanical trip

Auto/manual reset

3-phase

B600/R300 contact

Class 48

Alternate Catalog Number	US2:48DC38AA4
Amperage Rating	30 A
Application	Single phase and polyphase motors
ARRA Compliant	C
Brand	Siemens
Buy American Compliant	C
Catalog Number	48DC38AA4
Contact Configuration	NC
Contact Form	1NC
Contact Rating	30 A at 600 VAC
Country of Origin	MX
Currency	USD
Dimensions	6.2 in L x 4.3 in W x 5.1 in H
EU RoHS Indicator	C
Full Load Current Range	Heaters
Gross Volume Per Pack	244.69
Gross Volume UOM	in
Gross Weight Per Pack	1.0500 lb
Gross Weight per Pack Metric	0.48
Gross Weight UOM Metric	kg
Harmonization Tariff Schedule Code	8536490080
Height	4.3500 in
Height [Metric]	11.0490 cm
Length	7.5000 in
Length [Metric]	19.0500 cm
Manufacturer	Siemens
Maximum Motor Voltage	600v
Maximum Switching Voltage	600v
Mounting	DIRECT
Mounting Type	Surface
Number Of Poles	3
Operating Temperature	-25 to 60 C
Reset Type	Auto/Manual
Returnable	Y
Standard	cUL, CSA
Standards	ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedcUL Listed
Stock Status	NONSTOCK
Sub Brand	Class 48
Temperature Rating	-25 to 60 °C
Temperature Trip Range	-25 to 60 C
Trip Type	mechanical
Type	3-Phase Bi-Metal Open
UNSPSC	39122330
UPC 11	78308708404
UPC 12	783087084049
Width	7.5000 in
Width [Metric]	19.0500 cm
